CALED2 High-Power LED Retrofit Assembly for CSAA, CLAA, CMU1CB By Cast Lighting

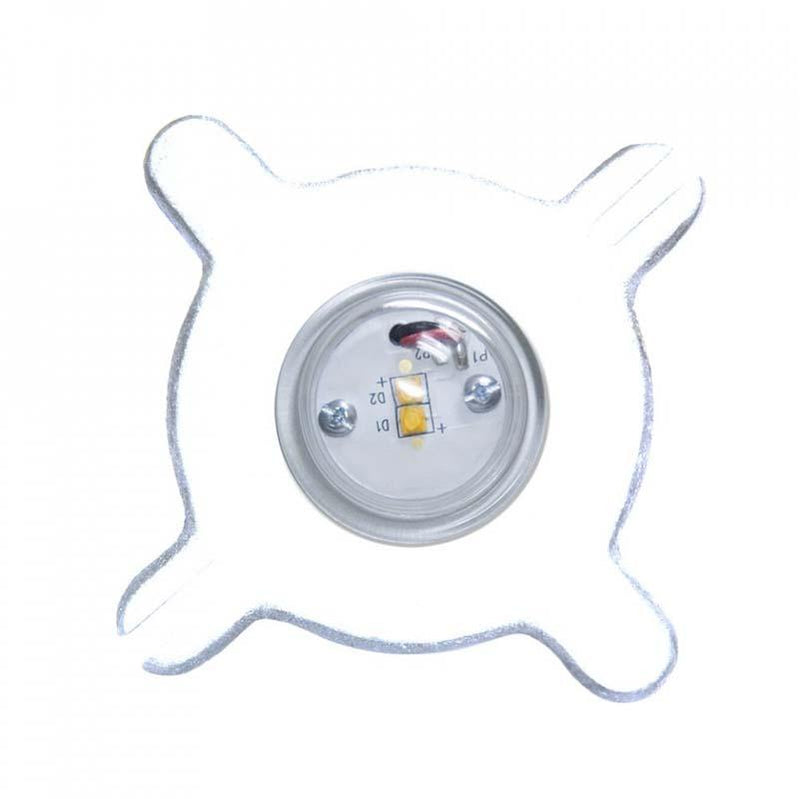

This LED module is engineered to replace the incandescent lamps in all CAST Path Lights. It is equipped with a plug that mates with the S8 Wedge-Base sockets used in these fixtures. The module body provides a highly effective heat sink to allow the use of two high-power Cree LED's. Also available in a Turtle-Safe version for wet locations. (CALED2A)

• 62,000 Hrs. Life (L70)
• 12-24V AC/DC
• Power: 4.4 Watts Power Factor: .89 Volt Amps: 5.2VA
• Lumens 270
• CRI 84
• Integrated LED Light Source
• Glare-free illumination
• Includes fully potted LED driver
• Includes protection from voltage spikes and surges
• Will not interfere with remote control devices - RFI filtering

*Note: For use only with CAST Path Lights with S8 Wedge-Base Sockets

US Patent 9,146,025 B2
