Description

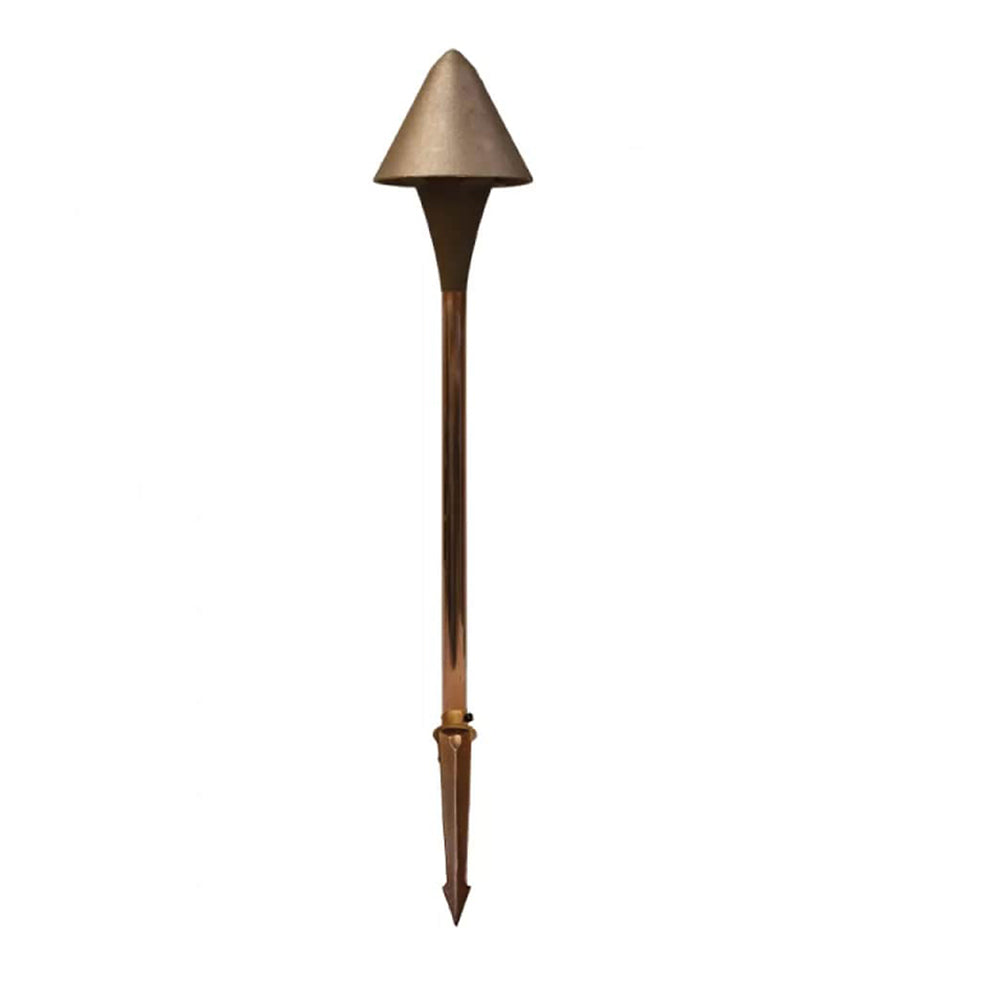

Cast Lighting Classic Saratoga Area/Path Light
This rugged solid bronze & copper path/area light provides a soft glare free illumination. LED conversion is achieved with the CALED2 module (not included).
Made with 95% USA content!
Applications

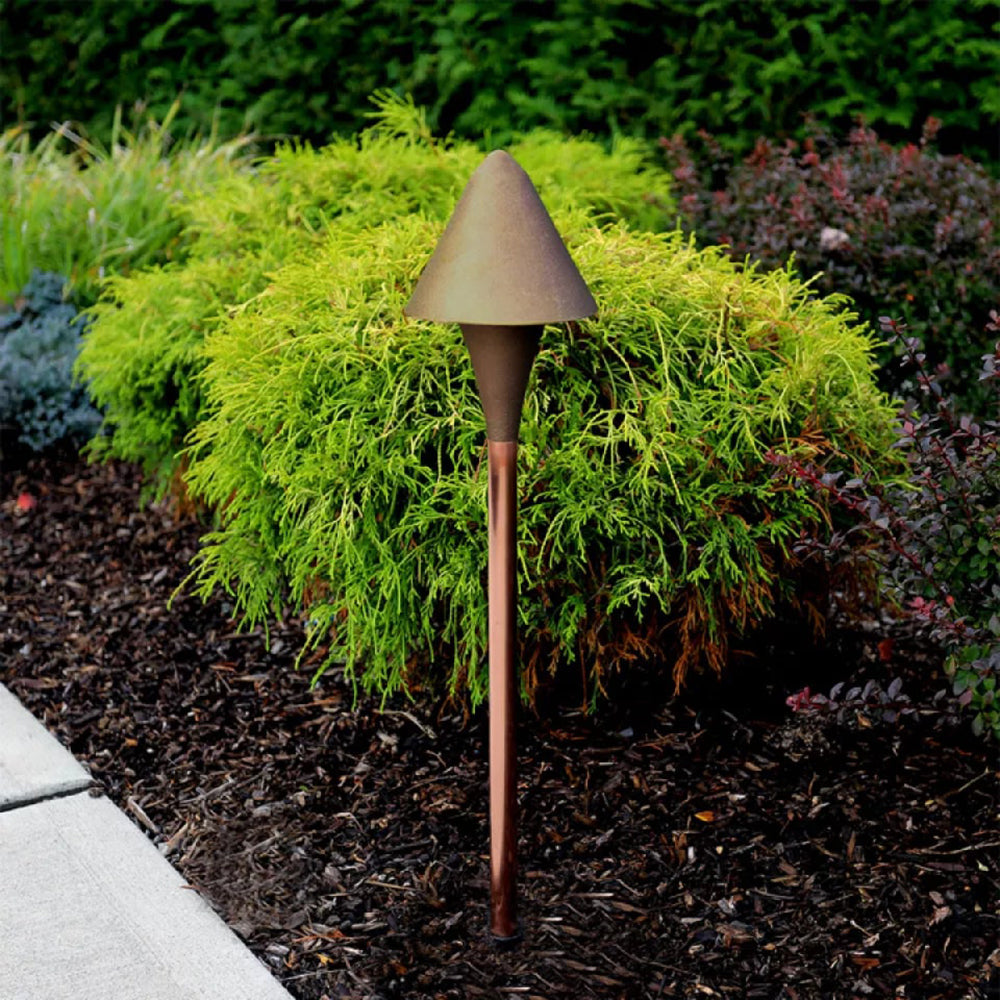

Suitable for lighting walkways, planting beds, and other areas.
Features
- Easily converted to LED by adding the CALED2 Module (not included)
- Solid bronze hat, vase
- Fixture provided with standard SOLD BRONZE stake
- Heavy-gauge copper stem
- Pre-wired with 35’ #16/2 tin-coated No-Ox® marine grade wire
- High-temp socket
- Spider Splice® ready
Models
- CSR1CB
- CAST Lighting magnetic toroidal core Transformers
Journeymen 75, 150, 300, 600, & 900 Watt and Master Series 900 & 1200 Watt - CAST No-OX® Tin-Coated Marine-Grade Wire
Available in #8/2, #10/2, #12/2, #14/2, & #16/2 gauges. - Astronomical Digital & Mechanical Timers
- Photo Cells
- Seamless non-insulated crimp connections & Heat shrink for wire connections
Specifications
-

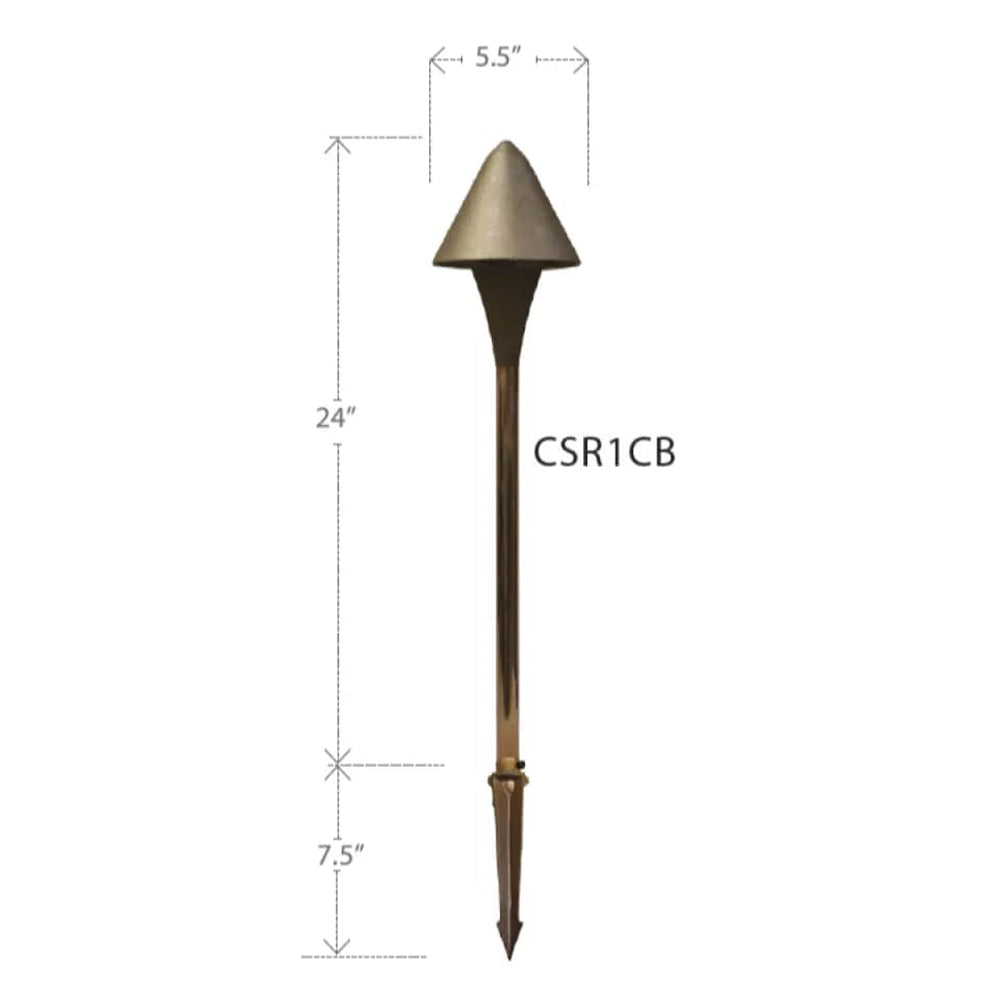

Dimensions and Weight:
- Stem, Body, and Hat: 24" x 5.5" wide
- Stake: 7.5”
- Weight: 8 lbs.
- Lamp Specifications: Lamp: 2.5W S8 LED Lamp Model #SL3156250 (35W max.) (not included).
- LED Conversion: CALED2 LED Module (not included).
- Fixture Specifications w/CALED2: Voltage Range (AC/DC) 10-24, Total Lumens 116, Watts 4.23, Volt Amps: 4.65, CCT 2800 +/-
- Listing: All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
-
Construction:
- Hat and Body: Solid Sand-Cast Bronze
- Stake: Standard SOLD BRONZE stake
- Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115” wall thickness)
- Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
