CCH13CB WBK (25W) Classic Small China Hat Canopy Mount Area Light By Cast Lighting

Save $73.07
Cast LightingSKU: CCH13CB

Sale price$292.26 USD Regular price$365.33 USD

Cast Lighting Normally Ships within 1-5 days (exceptions may apply)

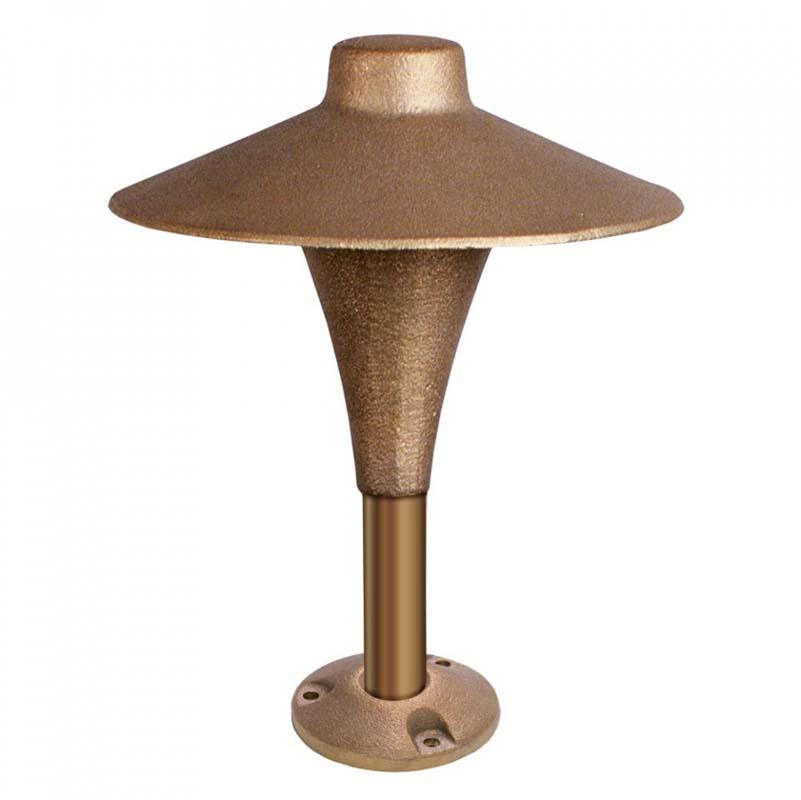

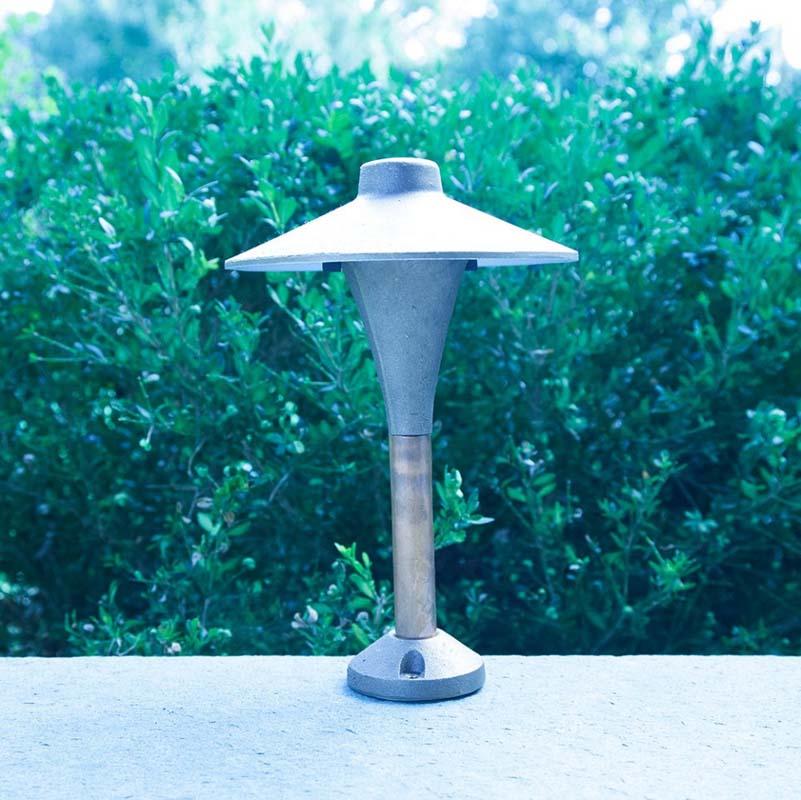

The Cast Lighting CCH13CB is a CAST Small China Hat Area/Path Light (canopy mount)


This rugged compact solid bronze canopy-mount area light provides a soft glare free illumination. It is ideal for mounting on fence or stone wall columns; capstones, or piers.

To convert this fixture to LED, purchase the CAST LED Path Light Module (CALED2).


Suitable for lighting walkways and other areas when mounted on posts or elevated surfaces.

  • Solid bronze hat and vase
  • Glare Free light source
  • Heavy-gauge copper stem
  • Pre-wired with 25' 16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready
  • Bronze Flush Canopy Mount
  • Dimensions and Weight: Stem, Body, and Hat: 12" x 7" fully extended
    • Canopy: 3" round
  • Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.) 25W Lamp not included
  • Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Hat and Body: Solid Sand-Cast Bronze
    • Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115a wall thickness)
    • Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
    • Bronze Flush Canopy Mount
California Residents: Prop 65 regulations
