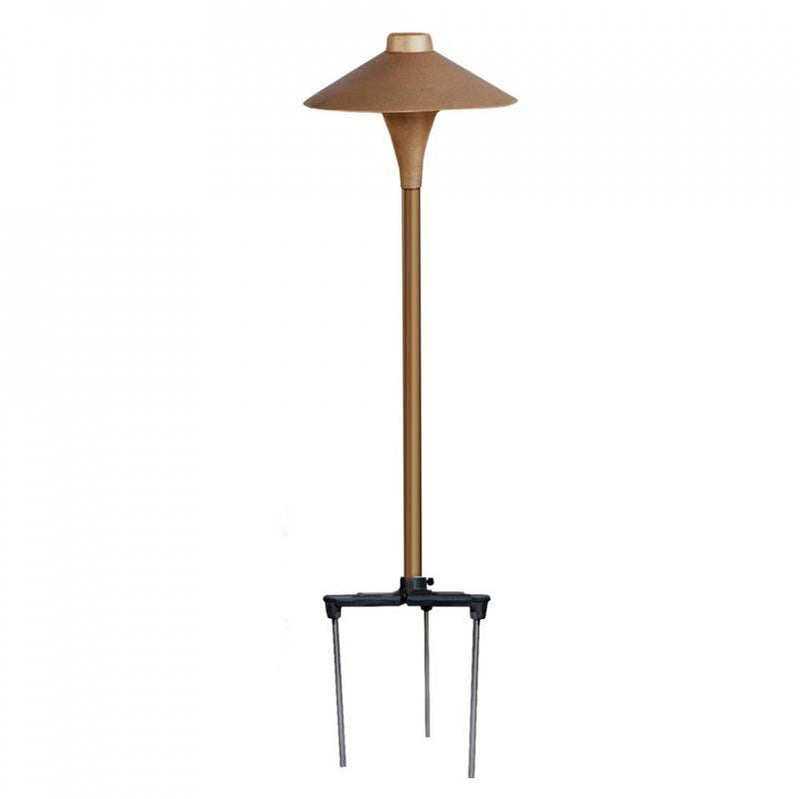

The Cast Lighting CCH2CB is a CAST Large China Hat Area/Path Light
This rugged solid bronze and copper path/area light provides a soft glare free illumination.
To convert this fixture to LED, purchase the CAST LED Path Light Module (CALED2).Applications

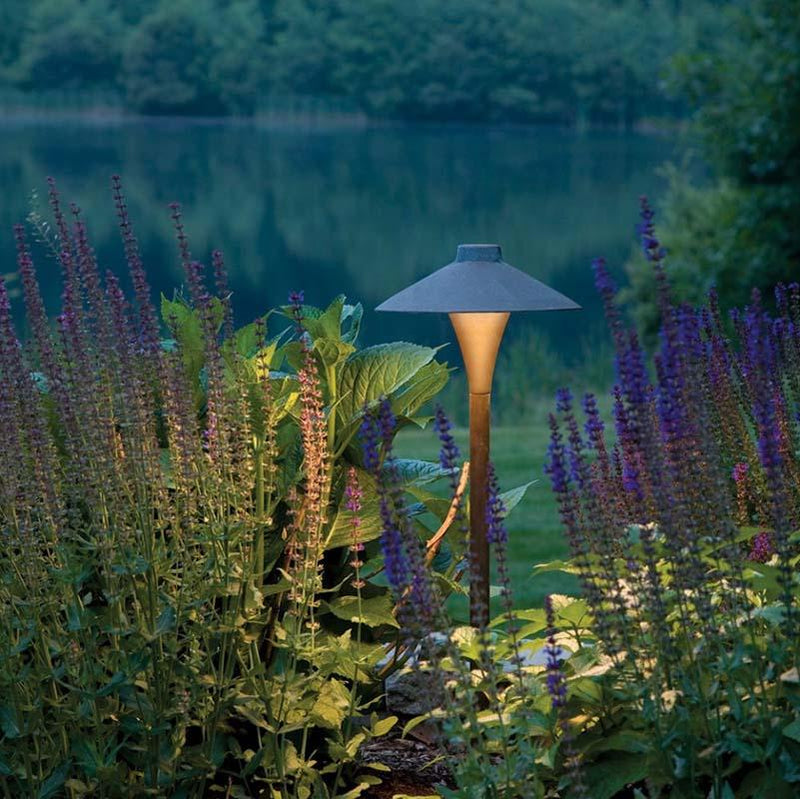

Suitable for lighting walkways, planting beds and other areas.Features
- Easily converted to LED by adding the CALED2 Module
- Glare free light source
- Solid bronze hat and vase
- Black coated Large Eurometal Talon Stake (CTSL1)
- Heavy-gauge copper stem
- Optional sprinkler shield
- Pre-wired with 25' 16/2 tin-coated No-Ox® marine grade wire
- High-temp socket
- Spider Splice® ready
- Dimensions and Weight: Stem, Body, and Hat: 25" tall x 9" wide
- Stake 8.5"
- Weight: 11 lbs.
- Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.)25W Lamp included
- Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
- Hat and Body: Solid Sand-Cast Bronze
- Talon Stake: Black PTFE coated Eurometal base and stainless steel spikes for tilt-proof ground mounting (CTSL1)
- Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115a wall thickness)
- Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
