CDL1 Classic Deck Light By Cast Lighting

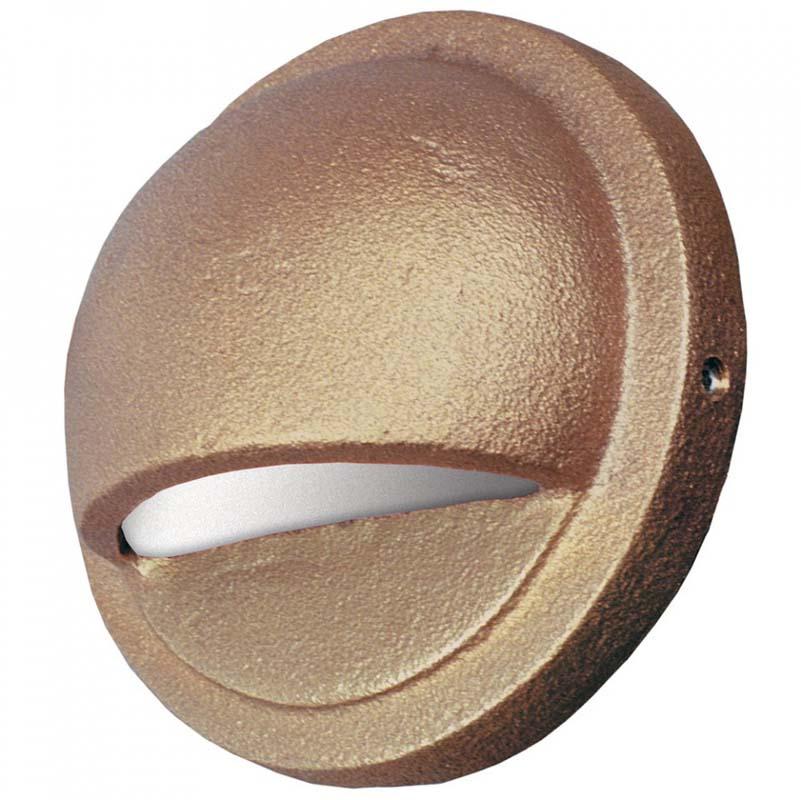

This compact and attractive solid bronze deck light is durable and reliable for wall and post mounting.

This fixture is available in Halogen: CDL1CB, LED: CDL1LED1, and Turtle Safe LED: CDL1LED1A

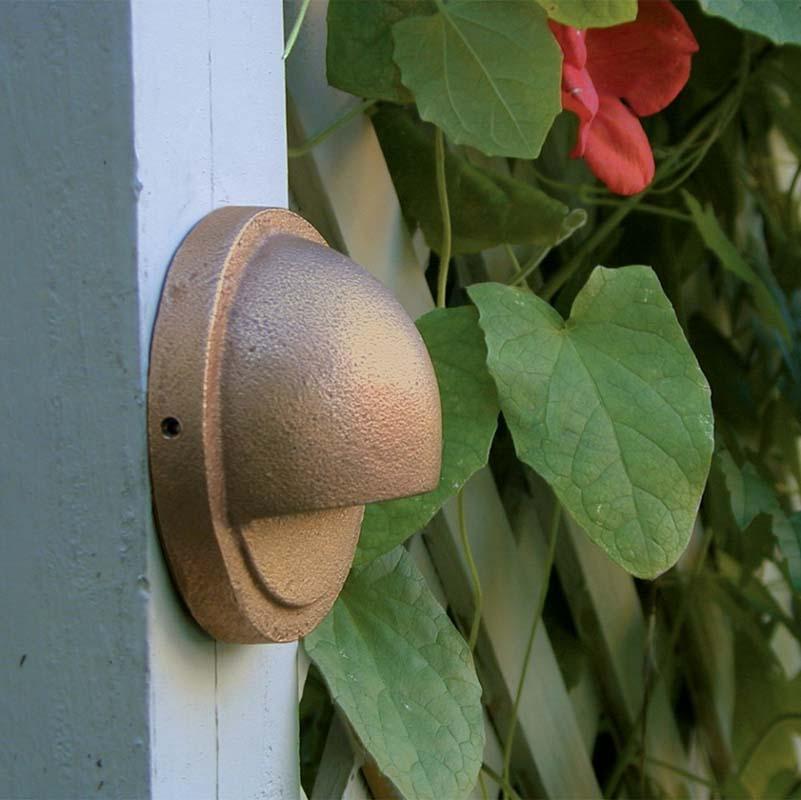

The Classic Deck Light is suitable for downlighting when mounted on retaining walls, structure surfaces, posts, and pilings.

• Solid Sand Cast Bronze Construction
• Glare-free illumination
• Pre-wired with 25' 16/2 tin-coated No-Ox® marine grade wire
• High-temp socket
• Spider-Splice® ready

• Dimensions and Weight: 3.75" diameter x 1.75" height
• Weight: 2 lbs.
• Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
• Construction:
  • Body: Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws.

Halogen Specifications for CDL1CB:

• Includes 2.5W T5 LED Lamp (SL921T5200L).
• Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. 16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
• Special Warning Instructions: Since the SCB socket is grounded to the fixture body, care should be taken to maintain correct orientation of paired wire leads. The ridged side of the wire pair should be connected at the Spider Splice to the ridged side of the home run pair. The ridged side of the home run pair should be wired to one of the common terminal blocks at the transformer.

LED Specifications for CDL1LED1:

• LED Light Source: 1 CREE LED, Life (L70) 60,500 hrs., Color Temp. 2759°K, CRI 81
• Input Voltage: 10 to 24V, AC or DC
• Power: .27 Amps, 2.82 Watts, Power Factor .88, Volt Amps 3.2
• Lumen output-fixture: 49 lm
• Center Beam Candela: 29
• Lead Wire: 25' tin coated #18/2 NO-OX marine grade wire
• FCC compliant for EMI interference

LED Specifications for CDL1LED1A (Turtle Safe)

• LED Light Source: 1 CREE Amber LED, Life (L70) 60,500 hrs.
• Input Voltage: 10 to 24V, AC or DC
• Power: .27 Amps, 2.82 Watts, Power Factor .88, Volt Amps 3.2
• Lumen output-fixture: 39 lm
• Center Beam Candela: 19
• Lead Wire: 25' tin coated #18/2 NO-OX marine grade wire
• FWC Certification # 2015-013
• Complies with Florida Fish and Wildlife Conservation Commission guidelines.
• FCC compliant for EMI interference
