CJT75SSMTTC 75Va Dual-Tap Journeymen Transformer By Cast Lighting

CJT75SSMTTC 75Va Dual-Tap Journeymen Transformer By Cast Lighting

Cast Lighting

Mfg ID #: CJT75SSMTTC

  • $179.59

Free Shipping on orders over $150.00

Quantity DISCOUNTS (Click the "Help (?)" button)

The Cast Lighting CJT75SSMTTC is a CAST 75w Journeymen Series

Description

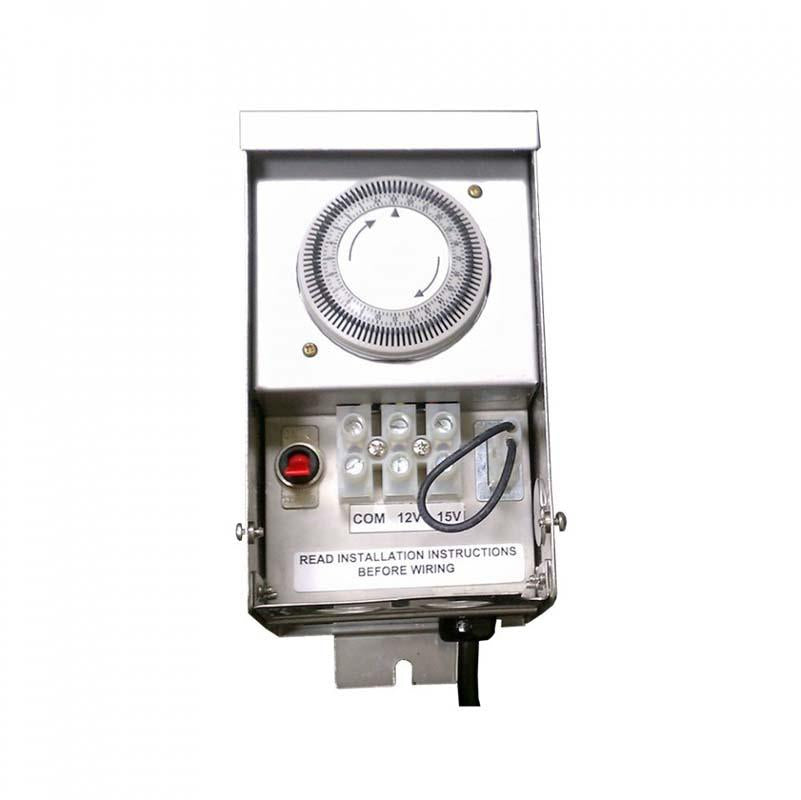

Rugged and reliable, CAST Journeymen® Series Dual-Tap 75VA Low Voltage Transformer comes with a built-in manual time clock

Features
  • Built-in manual timer
  • Resin-sealed toroidal core. Ensures for the highest possible efficiency
  • Full transformer capacity can be loaded into any single voltage tap
  • Voltage taps of 12V & 15V, with optional 20V
  • Secondary magnetic circuit breaker: 6 amp
  • Stainless steel enclosure
  • Photocell compatible
Specifications
  • Dimensions: 6.5" Tall x 3.75" Wide x 4.5" Deep
  • Input: 120V, 60Hz
  • Output: 12V, 15V, &  optional 20V
  • Capacity 75VA
  • Protection: Secondary magnetic circuit breaker, primary thermal breaker
  • Housing: 304 stainless steel Listing: CE cUL 1838, approved for interior and exterior use
California Residents: Prop 65 regulations
Product Specification Files

Click for Specification Sheet

...Read More


The Cast Lighting CJT75SSMTTC is a CAST 75w Journeymen Series

Description

Rugged and reliable, CAST Journeymen® Series Dual-Tap 75VA Low Voltage Transformer comes with a built-in manual time clock

Features
  • Built-in manual timer
  • Resin-sealed toroidal core. Ensures for the highest possible efficiency
  • Full transformer capacity can be loaded into any single voltage tap
  • Voltage taps of 12V & 15V, with optional 20V
  • Secondary magnetic circuit breaker: 6 amp
  • Stainless steel enclosure
  • Photocell compatible
Specifications
  • Dimensions: 6.5" Tall x 3.75" Wide x 4.5" Deep
  • Input: 120V, 60Hz
  • Output: 12V, 15V, &  optional 20V
  • Capacity 75VA
  • Protection: Secondary magnetic circuit breaker, primary thermal breaker
  • Housing: 304 stainless steel Listing: CE cUL 1838, approved for interior and exterior use
California Residents: Prop 65 regulations
