CMU2CB WBK (25W) Classic Large Mushroom Area/Path Light By Cast Lighting

Save $103.99
Cast LightingSKU: CMU2CB

Price:
Sale price$415.97 USD Regular price$519.96 USD

Cast Lighting Typically Ships within 1-5 days (exceptions may apply)

Description

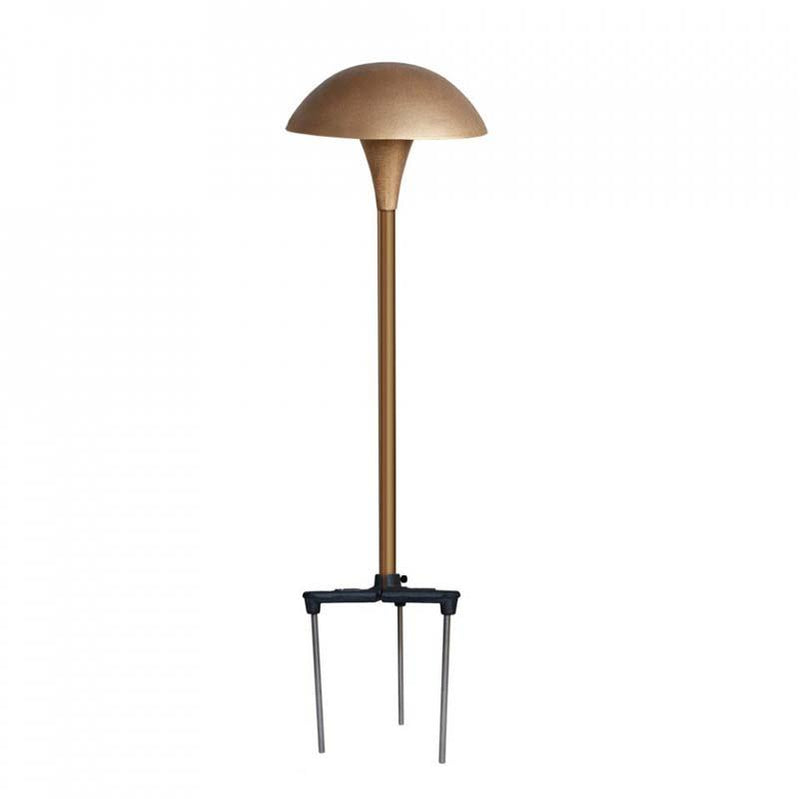

The Cast Lighting CMU2CB is a CAST Large Mushroom Area/Path Light

Description

This rugged solid bronze & copper path/area light provides a soft glare free illumination. LED conversion is achieved with the CALED2 module.

Applications

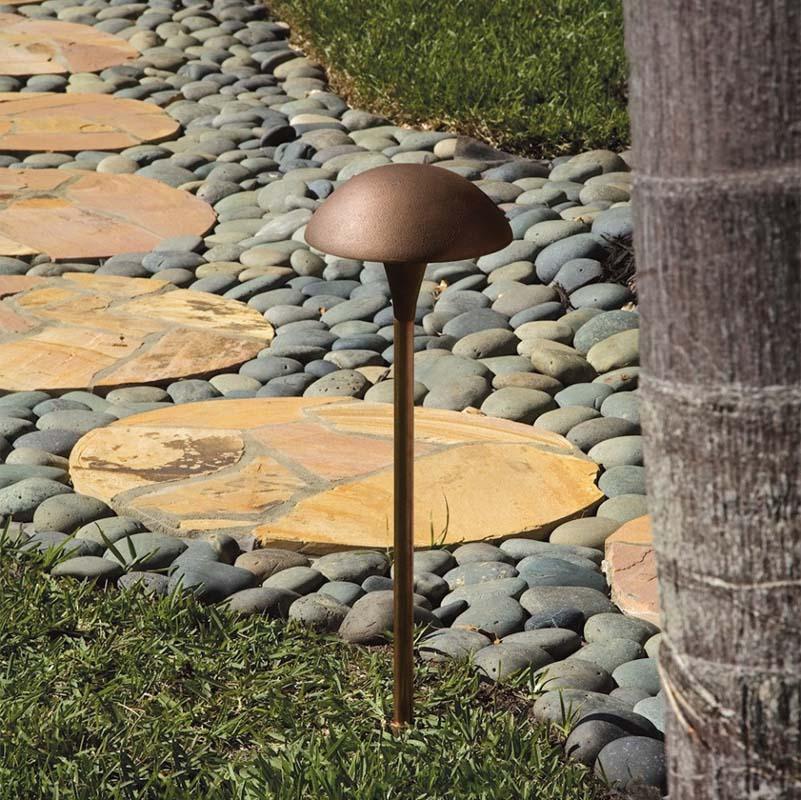

Suitable for lighting walkways, planting beds, and other areas.

Features
  • Easily converted to LED by adding the CALED2 Module
  • Solid bronze hat, vase
  • Black coated, Large Eurometal and Stainless Steel Talon Stake (CTSL1)
  • Heavy-gauge copper stem
  • Pre-wired with 25'#16/2 tin-coated No-Ox® marine grade wire
  • High-temp socket
  • Spider Splice® ready
Specifications
  • Dimensions and Weight:
    • Stem, Body, and Hat: 25" x 9" wide
    • Stake: 8.5"
    • Weight: 12 lbs.
  • Lamp Specifications: Lamp: 12V S8 Wedge Base (35W max.) (not included).
  • Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
  • Construction:
    • Hat and Body: Solid Sand-Cast Bronze
    • Stake: Solid black-coated Eurometal Large Talon Stake (CTSL1)
    • Stem: Heavy duty copper (unthreaded end to secure in stake with set screw) (0.115a wall thickness)
    • Socket Assembly: High-temperature composite S8 socket rated to 220 degrees Celsius.
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16/2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
  • Hats Packed 3/box
  • Stem assemblies (CLAA) 3/box.
California Residents: Prop 65 regulations
Product Files

Click for CAST Landscape Lighting Catalog

Click for Classic Large Mushroom Area/Path Light: LM-79 Data - with CALED2 Module

Click for Classic Large Mushroom Area/Path Light: Product Sheet

Click for Classic Large Mushroom Area/Path Light: Specification Details

Click for Landscape Warranty

Click for Photometrics Chart

Click for Source Lighting Lamp Guide
