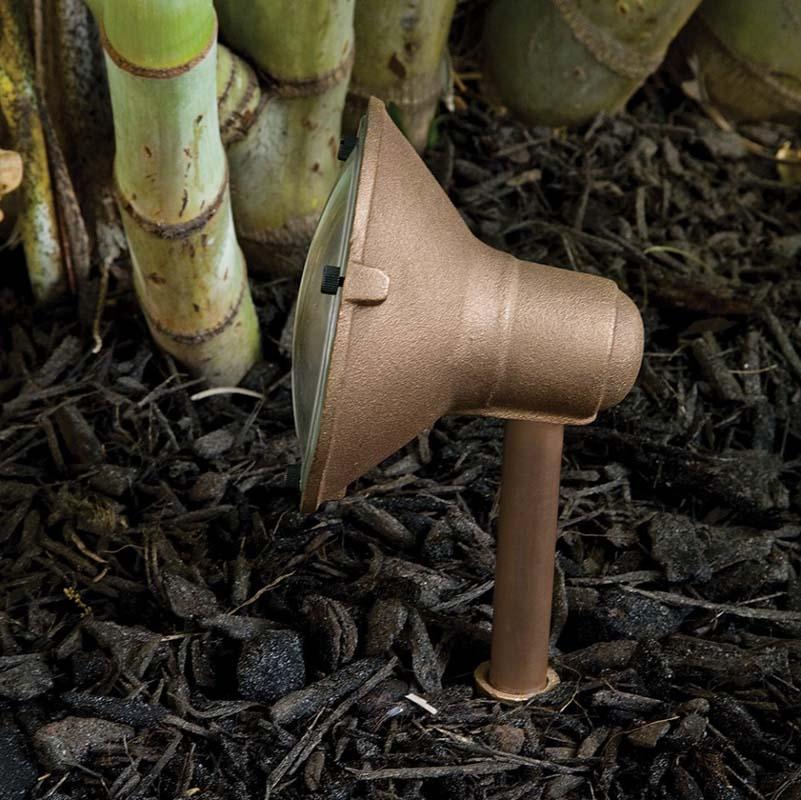

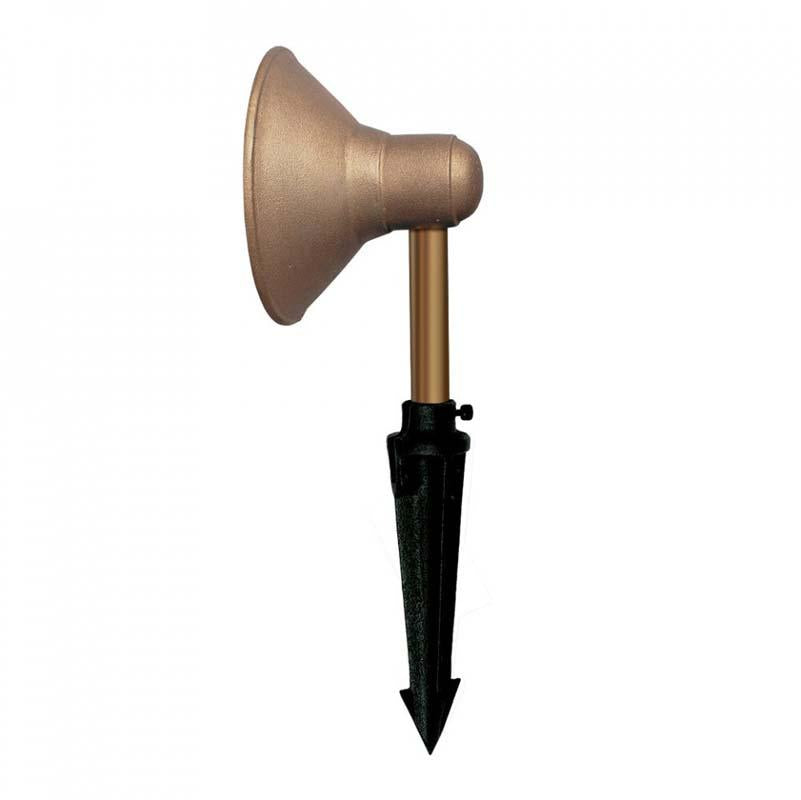

The Cast Lighting CWW1CB is a CAST Wall Wash Light
This compact rugged solid bronze wall wash features a convex borosilicate lens. The CWW1CB can be converted to LED using the CSWLED2 module.
The LED Wall Wash (CWW1LED2) features an Integrated , replaceable LED module.Applications
Suitable for illuminating walls and other broad area applicationsFeatures
- Solid bronze shroud and body
- Solid Eurometal Stake
- Pre-wired with 25' #16-2 tin-coated No-Ox® marine grade wire
- High-temp socket with solid nickel contacts
- Spider Splice® ready
- Dimensions and Weight: Shroud, Base, & Stem: 7" tall x 4.25" wide
- Stake: 8.5"
- Weight: 5.2 lbs
- Lamp Specifications for CWW1CB: Lamp: 12V S8 Wedge Base (35W max.) Lamp included (25W)
- LED specifications for CWW1LED2:
- LED Module CSWLED2: 2,758°K Color Temp.
- Input voltage: 10 to 24V, AC or DC
- Power: 4.33 watts, Power Factor: .9 Volt Amps: 4.81
- Lumen output: 147.6 lm
- FCC compliant for EMI interference
- Listing:a All CAST Lights conform to: UL Std's 1838 & 8750; CE; Certified to CAN/CSA Std's C22.2 No. 250.0 & C22.2 No. 250.13. Suitable for wet locations. FCC Class B Conducted and Radiated. RoHS.
- Shroud: Solid Sand-Cast Bronze
- Stake: Solid Eurometal
- Stem: 4a Heavy duty copper (unthreaded end to secure in stake with set screws.) (0.115a wall thickness)
- Lens: Convex borosilicate with silicon gasket to prevent water intrusion
- Socket Assembly: High-temperature composite S8 socket rated to 220°C.
- Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead); socket wire crimped and soldered to lead wire using tin solder and tin crimps protected with waterproof shrink tubing and fiberglass sleeve.
