Description

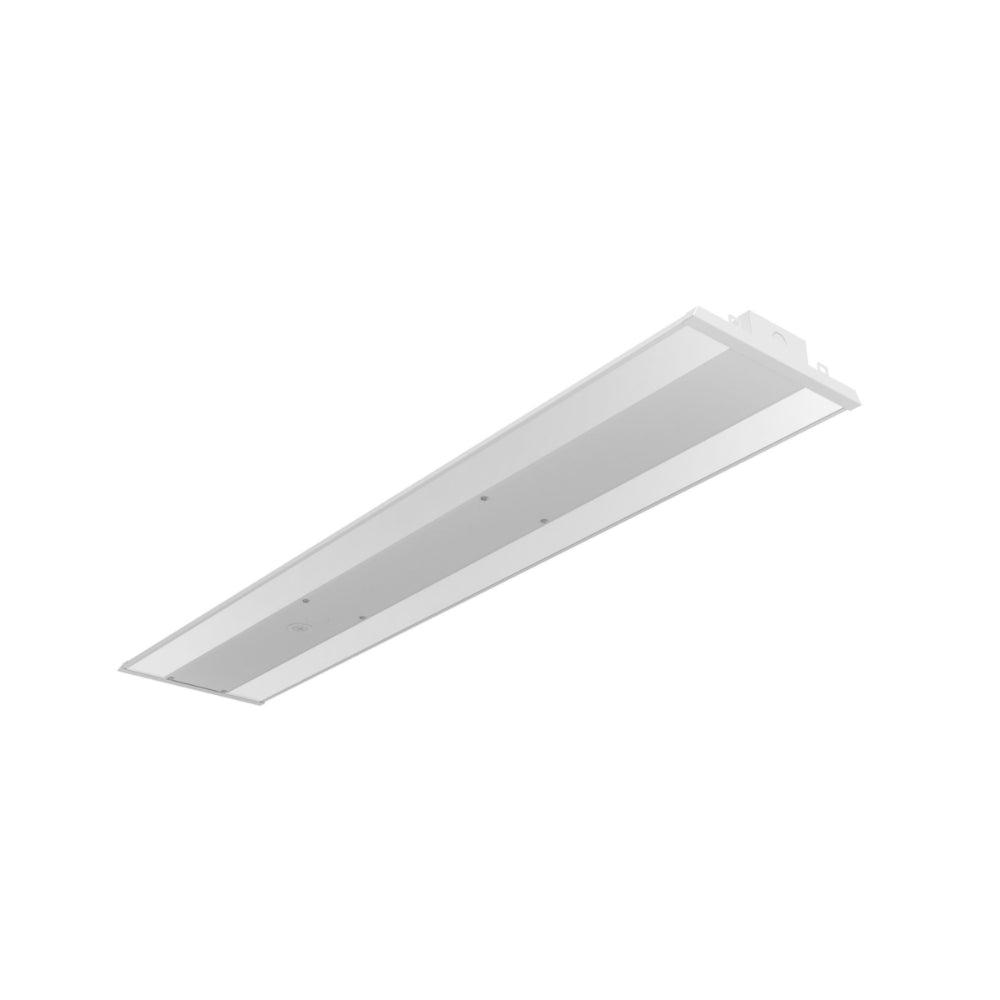

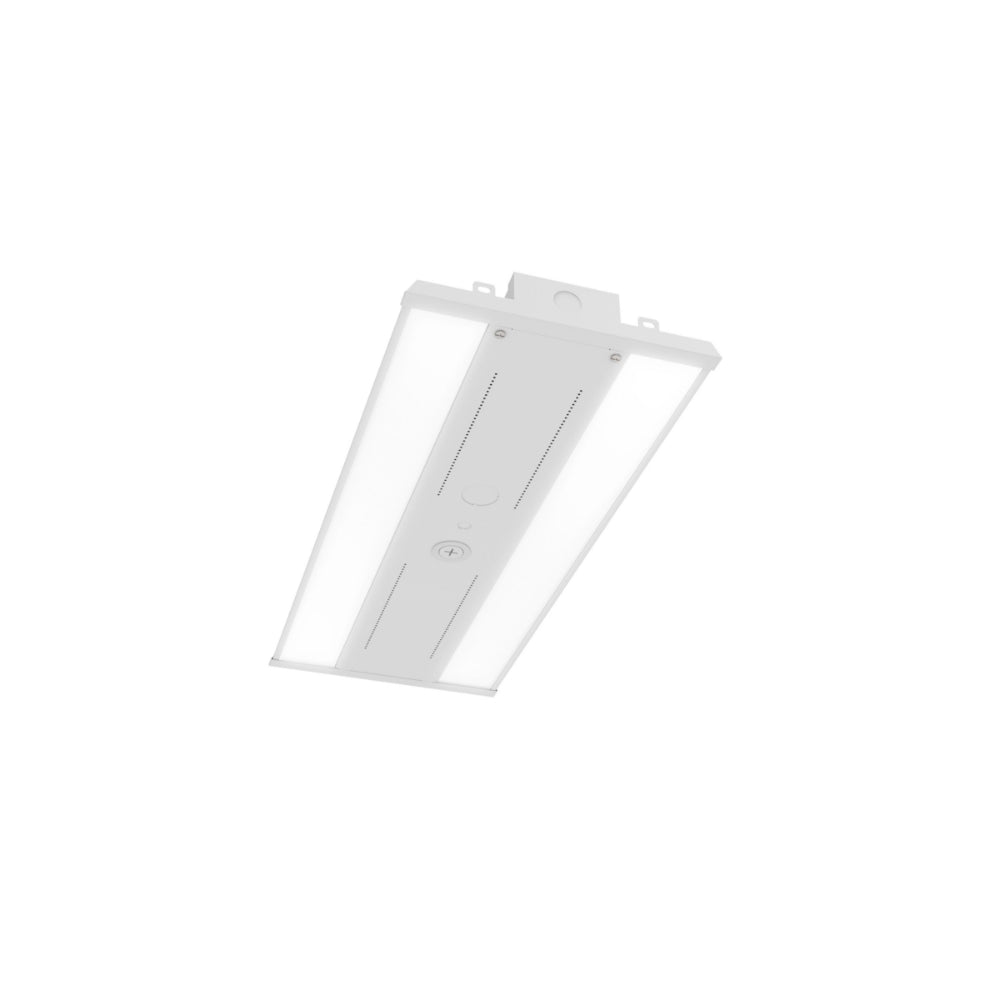

Day-Brite CFI FHG LED High Bay Light
FHG - functional and affordable
Product Family Information
Day-Brite / CFI FHG LED high bay provides versatility in form and function. With a wide range of lumen packages and accessories available, this luminaire can be used in many different applications ranging from warehouses and manufacturing facilities to retail outlets.
Benefits
- Reduces energy costs
- Fits multiple applications
- Ease of installation
- Ease of maintenance
Features
- High efficacy
- Multiple lumen options
- Multiple mounting methods
- Light distribution options
- 0-10V dimming standard
Applications
- Warehouses
- Industrial
- Education
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
FHG, 12000lm, 4000K, 80CRI, Medium Distribution | FHG12L840-UNV-M |
|
FHG, 12000lm, 4000K, 80CRI, Narrow Distribution | FHG12L840-UNV-N |
|
FHG, 12000lm, 4000K, 80CRI, Wide Distribution | FHG12L840-UNV-W |
|
FHG, 12000lm, 5000K, 80CRI, Medium Distribution | FHG12L850-UNV-M |
|
FHG, 12000lm, 5000K, 80CRI, Narrow Distribution | FHG12L850-UNV-N |
|
FHG, 12000lm, 5000K, 80CRI, Wide Distribution | FHG12L850-UNV-W |
|
FHG, 18000lm, 4000K, 80CRI, Medium Distribution | FHG18L840-UNV-M |
|
FHG, 18000lm, 4000K, 80CRI, Narrow Distribution | FHG18L840-UNV-N |
|
FHG, 18000lm, 4000K, 80CRI, Wide Distribution | FHG18L840-UNV-W |
|
FHG, 18000lm, 5000K, 80CRI, Medium Distribution | FHG18L850-UNV-M |
|
FHG, 18000lm, 5000K, 80CRI, Narrow Distribution | FHG18L850-UNV-N |
|
FHG, 18000lm, 5000K, 80CRI, Wide Distribution | FHG18L850-UNV-W |
|
FHG, 24000lm, 4000K, 80CRI, Medium Distribution | FHG24L840-UNV-M |
|
FHG, 24000lm, 4000K, 80CRI, Narrow Distribution | FHG24L840-UNV-N |
|
FHG, 24000lm, 4000K, 80CRI, Wide Distribution | FHG24L840-UNV-W |
|
FHG, 24000lm, 5000K, 80CRI, Medium Distribution | FHG24L850-UNV-M |
|
FHG, 24000lm, 5000K, 80CRI, Narrow Distribution | FHG24L850-UNV-N |
|
FHG, 24000lm, 5000K, 80CRI, Wide Distribution | FHG24L850-UNV-W |
|
FHG, 30000lm, 4000K, 80CRI, Medium Distribution | FHG30L840-UNV-M |
|
FHG, 30000lm, 4000K, 80CRI, Narrow Distribution | FHG30L840-UNV-N |
|
FHG, 30000lm, 4000K, 80CRI, Wide Distribution | FHG30L840-UNV-W |
|
FHG, 30000lm, 5000K, 80CRI, Medium Distribution | FHG30L850-UNV-M |
|
FHG, 30000lm, 5000K, 80CRI, Narrow Distribution | FHG30L850-UNV-N |
|
FHG, 30000lm, 5000K, 80CRI, Wide Distribution | FHG30L850-UNV-W |
 |
FHG, 36000lm, 4000K, 80CRI, Medium Distribution | FHG36L840-UNV-M |
|
FHG, 36000lm, 4000K, 80CRI, Narrow Distribution | FHG36L840-UNV-N |
|
FHG, 36000lm, 4000K, 80CRI, Wide Distribution | FHG36L840-UNV-W |
|
FHG, 36000lm, 5000K, 80CRI, Medium Distribution | FHG36L850-UNV-M |
|
FHG, 36000lm, 5000K, 80CRI, Narrow Distribution | FHG36L850-UNV-N |
|
FHG, 36000lm, 5000K, 80CRI, Wide Distribution | FHG36L850-UNV-W |
 |
FHG, 48000lm, 4000K, 80CRI, Medium Distribution | FHG48L840-UNV-M |
|
FHG, 48000lm, 4000K, 80CRI, Narrow Distribution | FHG48L840-UNV-N |
|
FHG, 48000lm, 4000K, 80CRI, Wide Distribution | FHG48L840-UNV-W |
|
FHG, 48000lm, 5000K, 80CRI, Medium Distribution | FHG48L850-UNV-M |
|
FHG, 48000lm, 5000K, 80CRI, Narrow Distribution | FHG48L850-UNV-N |
|
FHG, 48000lm, 5000K, 80CRI, Wide Distribution | FHG48L850-UNV-W |
|
FHG, 60000lm, 4000K, 80CRI, Medium Distribution | FHG60L840-UNV-M |
|
FHG, 60000lm, 4000K, 80CRI, Narrow Distribution | FHG60L840-UNV-N |
|
FHG, 60000lm, 4000K, 80CRI, Wide Distribution | FHG60L840-UNV-W |
|
FHG, 60000lm, 5000K, 80CRI, Medium Distribution | FHG60L850-UNV-M |
|
FHG, 60000lm, 5000K, 80CRI, Narrow Distribution | FHG60L850-UNV-N |
|
FHG, 60000lm, 5000K, 80CRI, Wide Distribution | FHG60L850-UNV-W |
Product Files
Click for Day-Brite CFI-FHG LED High Bay Spec Sheet
Click for Day-Brite FHG LED High Bay Bulletin
Click for Day-Brite FHG LED High Bay Installation Sheet
Click for Day-Brite FHG LED High Bay Sensor Remote Installation Sheet
