Description

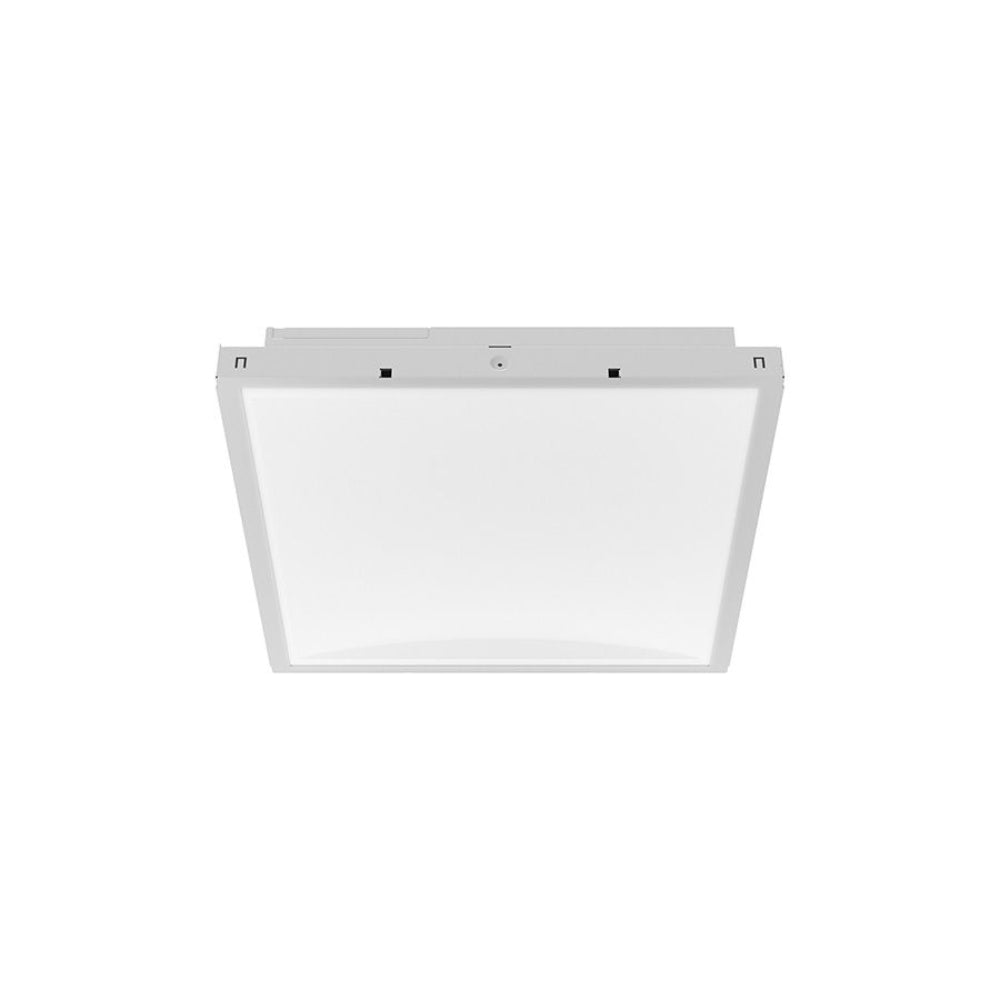

Day-Brite CFI FluxCurv Recessed Light
Delivers high performing even illumination and high visual comfort
Product Family Information
FluxCurv LED recessed is a fully luminous aperture luminaire offering a diffuse, regressed curve for a soft aesthetic. FluxCurv delivers high-performing even illumination and high visual comfort. Its architectural style, coupled with controls options, makes FluxCurv an ideal choice for applications such as office, institutional, and healthcare.
Benefits
- Achieve energy efficiency targets and reduce energy-related costs
- Excellent aesthetics and light distribution
- Ease of maintenance
Features
- Concave lens design
- Even illuminated lens
- Articulated, frosted lenses that reduce glare
- IC Rated
- Integrated sensors
Applications
- Office
- Hospitality
- Education
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
2x2, 2000 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG20L835-2-DS-UNV-DIM |
|
2x2, 2000 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG20L840-2-DS-UNV-DIM |
|
2x2, 2000 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG20L850-2-DS-UNV-DIM |
|
2x2, 3000 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG30L835-2-DS-UNV-DIM |
|
2x2, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG30L840-2-DS-UNV-DIM |
|
2x2, 3000 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG30L850-2-DS-UNV-DIM |
|
2x2 Base, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG38B835-2-DS-UNV-DIM |
|
2x2 Base, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG38B840-2-DS-UNV-DIM |
|
2x2 Base, 3800 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG38B850-2-DS-UNV-DIM |
|
2x2 Base, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG38L835-2-DS-UNV-DIM |
 |
2x4 Base, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG38L835-4-DS-UNV-DIM |
|
2x2 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG38L840-2-DS-UNV-DIM |
|
2x4 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG38L840-4-DS-UNV-DIM |
|
2x2 3800 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG38L850-2-DS-UNV-DIM |
|
2x4 3800 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG38L850-4-DS-UNV-DIM |
|
2x4 Base, 4200 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG42B835-4-DS-UNV-DIM |
|
2x4 Base, 4200 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG42B840-4-DS-UNV-DIM |
|
2x4 Base, 4200 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG42B850-4-DS-UNV-DIM |
|
2x4 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG43L835-4-DS-UNV-DIM |
|
2x4 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG43L840-4-DS-UNV-DIM |
|
2x4 4800 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG43L850-4-DS-UNV-DIM |
|
2x2 Base, 4500 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG45B835-2-DS-UNV-DIM |
|
2x2 Base, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG45B840-2-DS-UNV-DIM |
|
2x2 Base, 4500 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG45B850-2-DS-UNV-DIM |
|
2x2 4500 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG45L835-2-DS-UNV-DIM |
|
2x2 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG45L840-2-DS-UNV-DIM |
|
2x2 4500 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG45L850-2-DS-UNV-DIM |
|
2x4 Base, 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG48B835-4-DS-UNV-DIM |
|
2x4 Base, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG48B840-4-DS-UNV-DIM |
|
2x4 Base, 4800 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG48B850-4-DS-UNV-DIM |
|
2x4 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG48L835-4-DS-UNV-DIM |
|
2x4 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG48L840-4-DS-UNV-DIM |
|
2x4 4800 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG48L850-4-DS-UNV-DIM |
|
2x2 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG54L835-2-DS-UNV-DIM |
|
2x4 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG54L835-4-DS-UNV-DIM |
|
2x2 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG54L840-2-DS-UNV-DIM |
|
2x4 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG54L840-4-DS-UNV-DIM |
|
2x2 5400 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG54L850-2-DS-UNV-DIM |
|
2x4 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG54L850-4-DS-UNV-DIM |
|
2x4 6000 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG60L835-4-DS-UNV-DIM |
|
2x4 6000 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG60L840-4-DS-UNV-DIM |
|
2x4 6000 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG60L850-4-DS-UNV-DIM |
|
2x4 7400 Nominal Delivered Lumens, 80 CRI, 3500K, Curved Diffuse | 2FXCG74L835-4-DS-UNV-DIM |
|
2x4 7400 Nominal Delivered Lumens, 80 CRI, 4000K, Curved Diffuse | 2FXCG74L840-4-DS-UNV-DIM |
|
2x4 7400 Nominal Delivered Lumens, 80 CRI, 5000K, Curved Diffuse | 2FXCG74L850-4-DS-UNV-DIM |
Product Files
Click for Day-Brite CFI FluxCurv-recessed-2x4 Spec
Click for Day-Brite CFI FluxCurv-recessed-2x2 Spec
Click for Day-Brite CFI FluxCurv Instruction Sheet
