Description

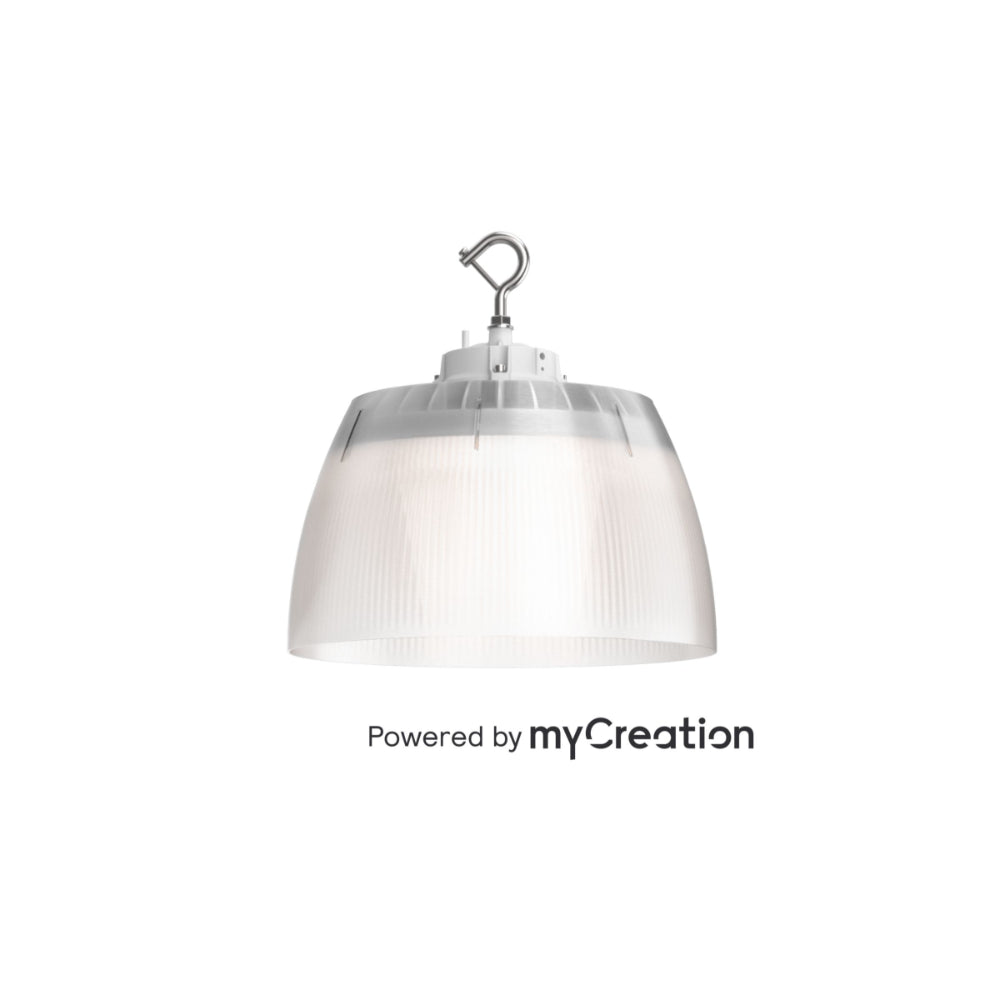

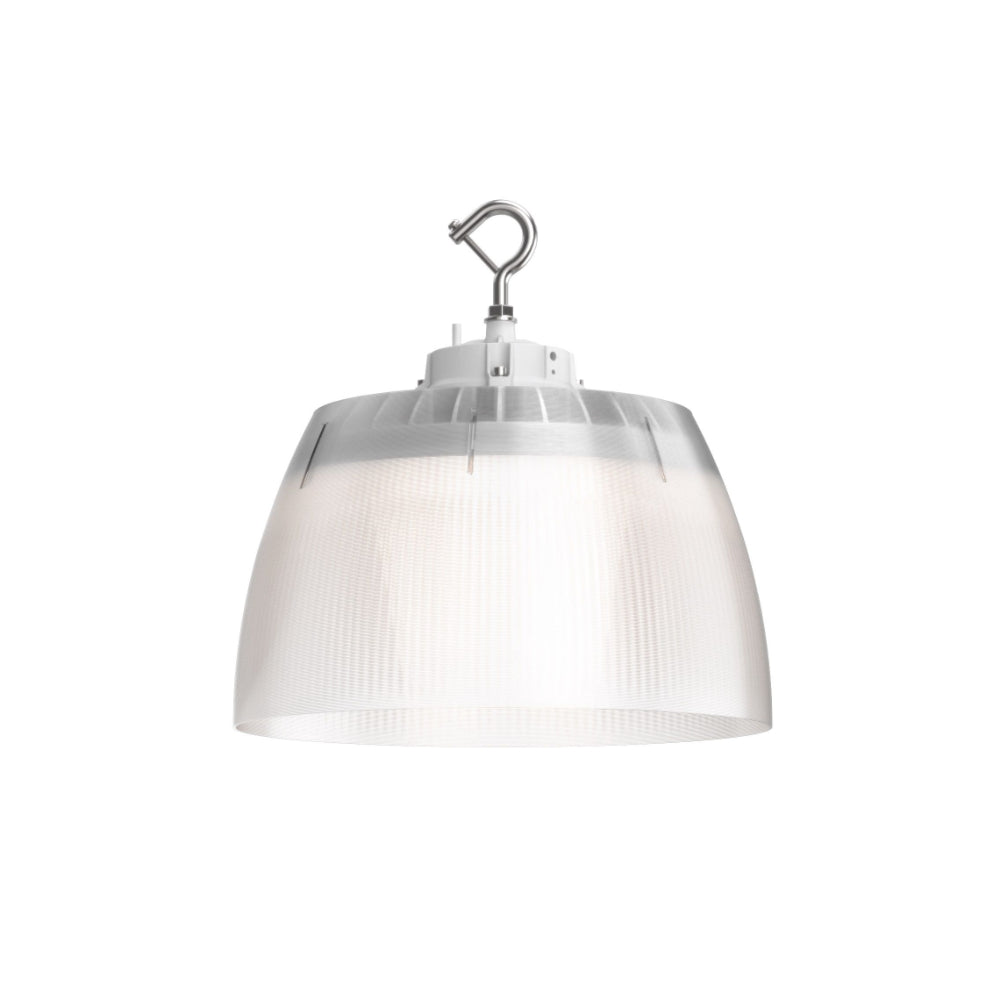

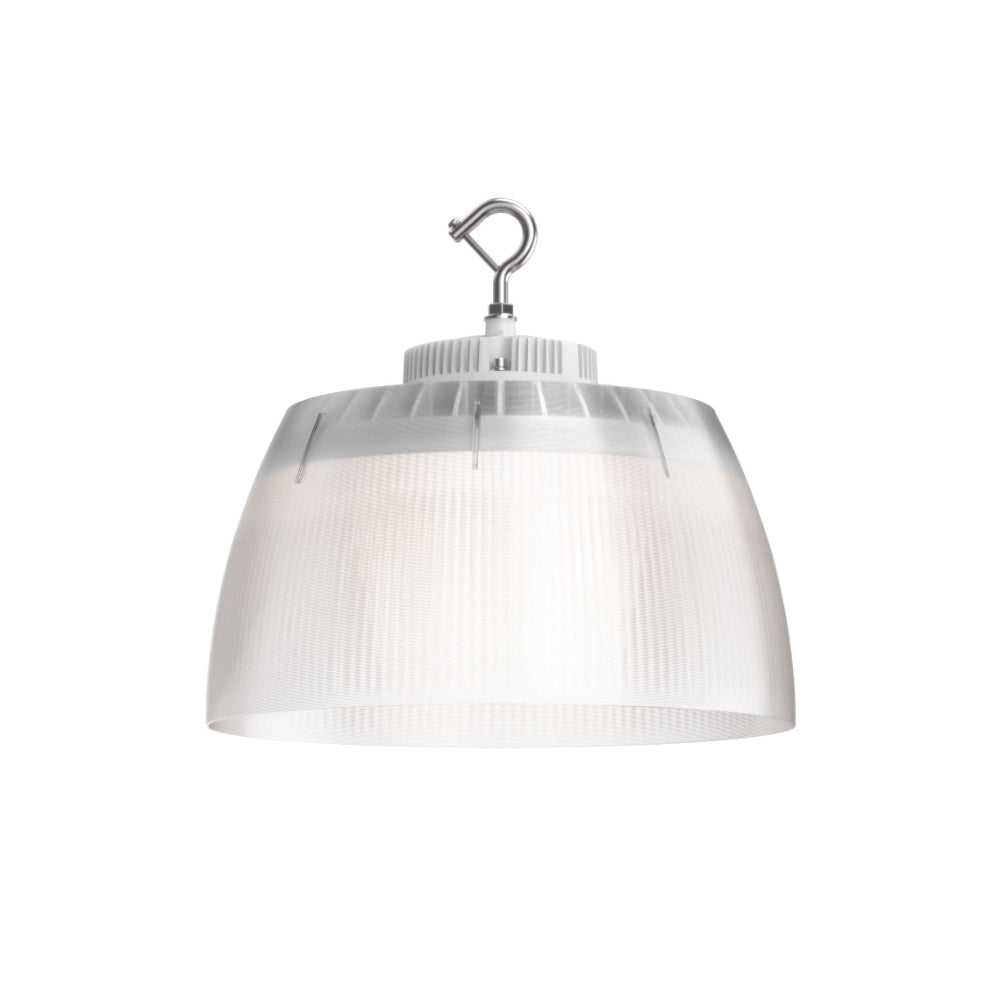

Day-Brite CFI RHG LED High Bay Light
Solid performance & quality construction, powered by myCreation technology
Product Family Information
The RHG LED High Bay delivers up to 33,000 lumens with precision reflectors and high-output LEDs, combining powerful performance with energy efficiency. RHG is built for long-lasting performance and eco-conscious impact. This portfolio of luminaires is powered by myCreation, Genlyte's advanced additive manufacturing technology that enables rapid production of high-quality, customizable luminaires. It streamlines design-to-delivery with on-demand colors, textures, and configurations-while reducing components and using 3D-printed parts made from at least 75% recycled or mass-balanced, bio-circular materials.
Benefits
- Sustainable eco-friendly solution
- Reduce energy related costs
- Familiar form with uplight
- Ease of installation
Features
- Delivers up to 176 LPW
- 3D printed reflector material
- Multiple CCT options
- Wide lumen range
- Standard 0-10V dimming
Applications
- Commercial
- Retail
- Offices
Product Variations
| Image | Title | SKU |
|---|---|---|
 |
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-10L-3000K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-10L-3500K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-10L-4000K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-14L-3000K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-14L-3500K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-14L-4000K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-20L-3000K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-20L-3500K-RHGSM16CLTC |
|
RHG, 10000lm/14000lm/20000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG1020L8CST-UN3-DIM-20L-4000K-RHGSM16CLTC |
 |
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-25L-3000K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-25L-3500K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-25L-4000K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-30L-3000K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-30L-3500K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-30L-4000K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-33L-3000K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-33L-3500K-RHGLG16CLTC |
|
RHG, 25000lm/30000lm/33000lm, 3000K/3500K/4000K, 80CRI, General Distribution | RHG2533L8CST-UN3-DIM-33L-4000K-RHGLG16CLTC |
Product Files
Click for Day-Brite CFI-RHG LED Round High Bay Spec Sheet
Click for Day-Brite RHG LED High Bay DLC
Click for Day-Brite Round Remote Emergency Battery Installation Sheet
