Day Brite Lighting FluxPanel LED

Day Brite LightingSKU: 2FPZ-60L-840-4-DS-UNV

Catalog #: 2FPZ-60L-840-4-DS-UNV
Price:
Sale price$198.75 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

Description

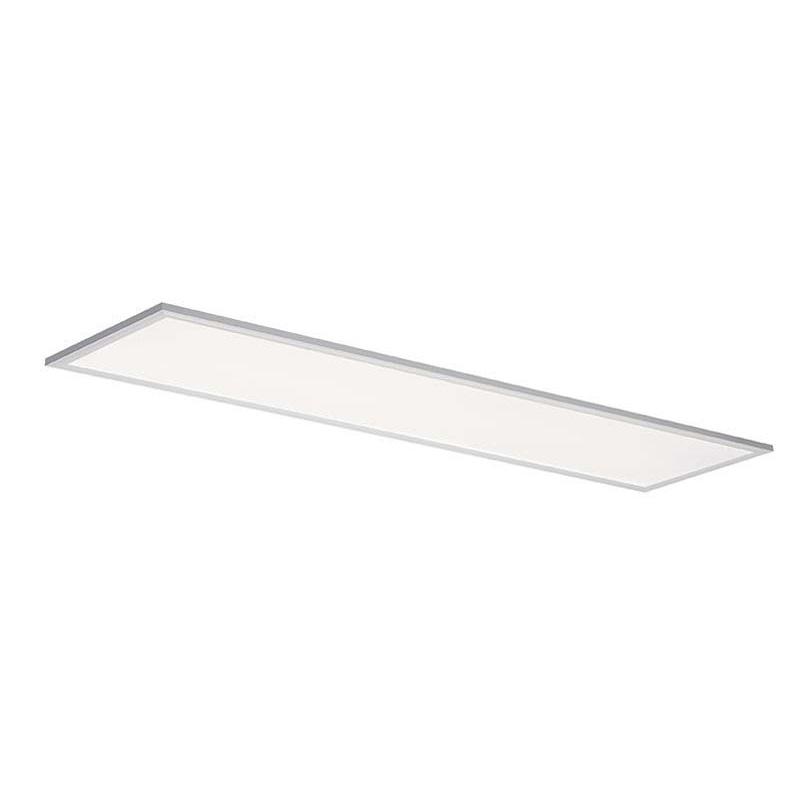

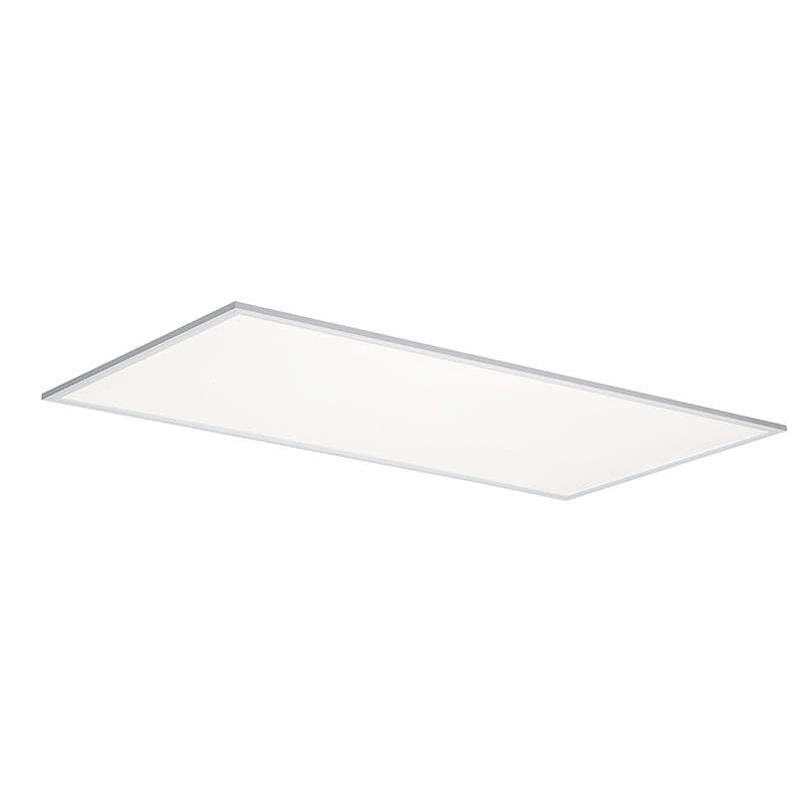

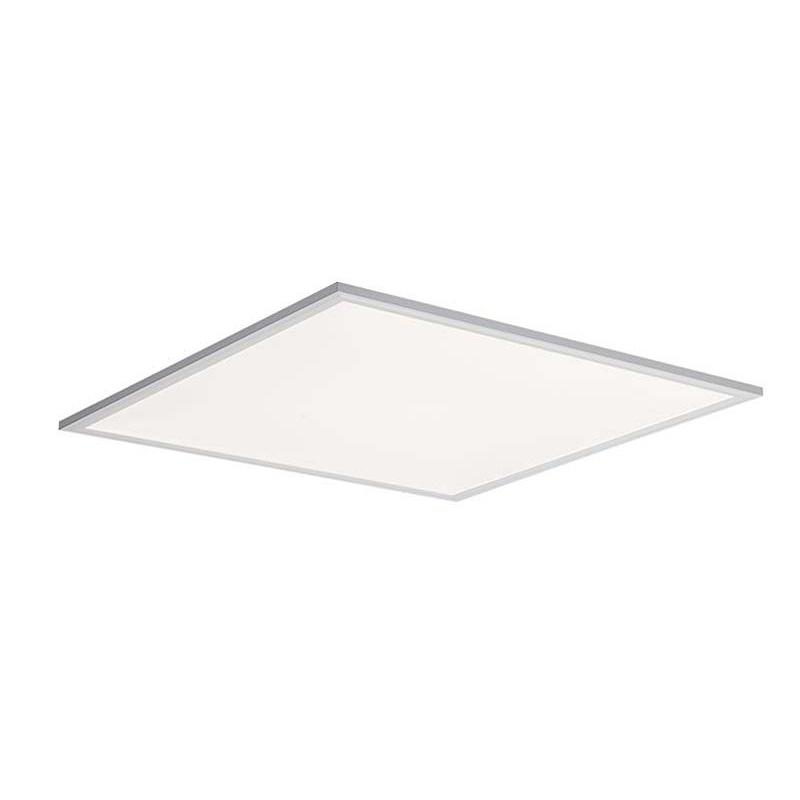

Day Brite Lighting FluxPanel LED

Product Information

Product Name SKU Watts Lumens Kelvin
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 108 lm/W 1FXP38B835-4-DS-UNV-DIM 33 3800 3500
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 107 lm/W 1FXP38B840-4-DS-UNV-DIM 33 3800 4000
1x4, 3000 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 112 lm/W 1FXP30L835-4-DS-UNV-DIM 27 3000 3500
1x4, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 115 lm/W 1FXP30L840-4-DS-UNV-DIM 27 3000 4000
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 110 lm/W 1FXP38L835-4-DS-UNV-DIM 33 3800 3500
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 114 lm/W 1FXP38L840-4-DS-UNV-DIM 33 3800 4000
1x4, 4500 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 108 lm/W 1FXP45L835-4-DS-UNV-DIM 39 4500 3500
1x4, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 111 lm/W 1FXP45L840-4-DS-UNV-DIM 39 4500 4000
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 110 lm/W 2FXP38B835-2-DS-UNV-DIM 33 3800 3500
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 113 lm/W 2FXP38B835-2-DS-UNV-DIM 33 3800 4000
2x2, 3000 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 109 lm/W 2FXP30L835-2-DS-UNV-DIM 27 3000 3500
2x2, 3000 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 108 lm/W 2FXP30L840-2-DS-UNV-DIM 27 3000 4000
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 106 lm/W 2FXP38L835-2-DS-UNV-DIM 36 3800 3500
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 105 lm/W 2FXP38L840-2-DS-UNV-DIM 36 3800 4000
2x2, 4500 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 103 lm/W 2FXP45L835-2-DS-UNV-DIM 42 4500 3500
2x2, 4500 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 104 lm/W 2FXP45L840-2-DS-UNV-DIM 42 4500 4000
2x4, 4200 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 108 lm/W 2FXP42B835-4-DS-UNV-DIM 38 4200 3500
2x4, 4200 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 112 lm/W 2FXP42B835-4-DS-UNV-DIM 38 4200 4000
2x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 109 lm/W 2FXP38L835-4-DS-UNV-DIM 33 3800 3500
2x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 109 lm/W 2FXP38L840-4-DS-UNV-DIM 33 3800 4000
2x4, 4300 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 107 lm/W 2FXP43L835-4-DS-UNV-DIM 39 4300 3500
2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 107 lm/W 2FXP43L840-4-DS-UNV-DIM 39 4300 4000
2x4, 4800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 104 lm/W 2FXP48L835-4-DS-UNV-DIM 47 4800 3500
2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 105 lm/W 2FXP48L840-4-DS-UNV-DIM 47 4800 4000
2x4, 5400 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 102 lm/W 2FXP54L835-4-DS-UNV-DIM 51 5400 3500
2x4, 5400 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 104 lm/W 2FXP54L840-4-DS-UNV-DIM 51 5400 4000
2x4, 6000 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 99 lm/W 2FXP60L835-4-DS-UNV-DIM 58 6000 3500
2x4, 6000 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 100 lm/W 2FXP60L840-4-DS-UNV-DIM 58 6000 4000
2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, InterAct Pro - 105 lm/W 2FXP48L840-4-DS-UNV-DIM-IAP 47 4800 4000
2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, 10W EM - 107 lm/W 2FXP43L840-4-DS-UNV-DIM-EMLED 39 4300 4000
2x4, 4300 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, 7W EM - 107 lm/W 2FXP43L840-4-DS-UNV-DIM-EMLED7 39 4300 4000
2x4, 4300 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, 10W EM - 107 lm/W 2FXP43L835-4-DS-UNV-DIM-EMLED 39 4300 3500
2x4, 4300 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, 7W EM - 107 lm/W 2FXP43L835-4-DS-UNV-DIM-EMLED7 39 4300 3500
2x4, 4800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, InterAct Pro - 105 lm/W 2FXP48L840-4-DS-UNV-DIM-IAP 47 4800 4000
2x4, 4200 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 108 lm/W 2FXP42B835-4-DS-347-DIM 38 4200 3500
2x4, 4200 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 107 lm/W 2FXP42B840-4-DS-UNV-DIM 39 4300 3500
2x4, 4200 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 107 lm/W 2FXP42B840-4-DS-347-DIM 39 4300 3500
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, EM 10W - 105 lm/W 2FXP38L840-2-DS-UNV-DIM-EMLED 36 3800 4000
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, EM 7W - 105 lm/W 2FXP38L840-2-DS-UNV-DIM-EMLED7 36 3800 4000
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, EM 10W - 106 lm/W 2FXP38L835-2-DS-UNV-DIM-EMLED 36 3800 3500
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, EM 7W - 106 lm/W 2FXP38L835-2-DS-UNV-DIM-EMLED7 36 3800 3500
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse - 110 lm/W 2FXP38B835-2-DS-347-DIM 33 3800 3500
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 113 lm/W 2FXP38B840-2-DS-UNV-DIM 33 3800 4000
2x2, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 113 lm/W 2FXP38B840-2-DS-347-DIM 33 3800 4000
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, 10W EM - 114 lm/W 1FXP38L840-4-DS-UNV-DIM-EMLED 33 3800 4000
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse, 7W EM - 114 lm/W 1FXP38L840-4-DS-UNV-DIM-EMLED7 33 3800 4000
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, 10W EM - 110 lm/W 1FXP38L835-4-DS-UNV-DIM-EMLED 33 3800 3500
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 3500K, Diffuse, 7W EM - 110 lm/W 1FXP38L835-4-DS-UNV-DIM-EMLED7 33 3800 3500
1x4, 3800 Nominal Delivered Lumens, 80 CRI, 4000K, Diffuse - 114 lm/W 1FXP38L840-4-DS-347-DIM 33 3800 4000

Product Family Details

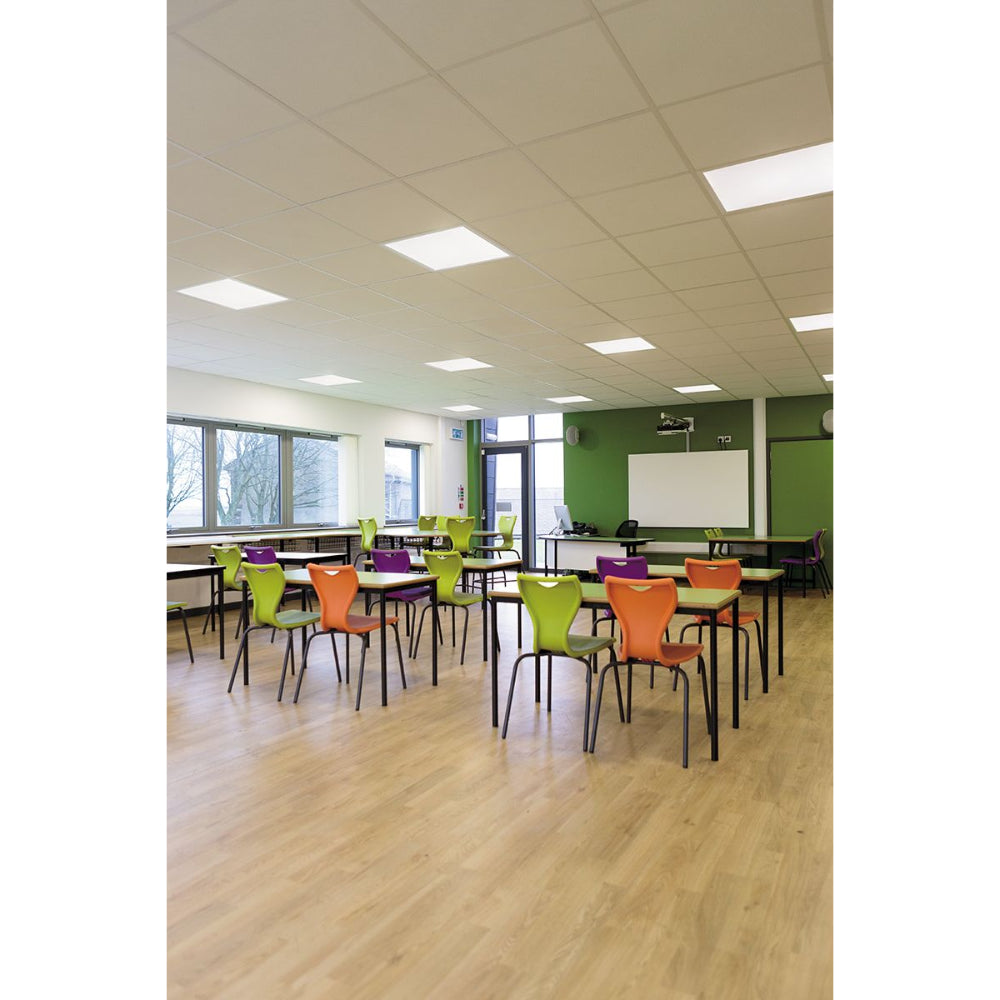

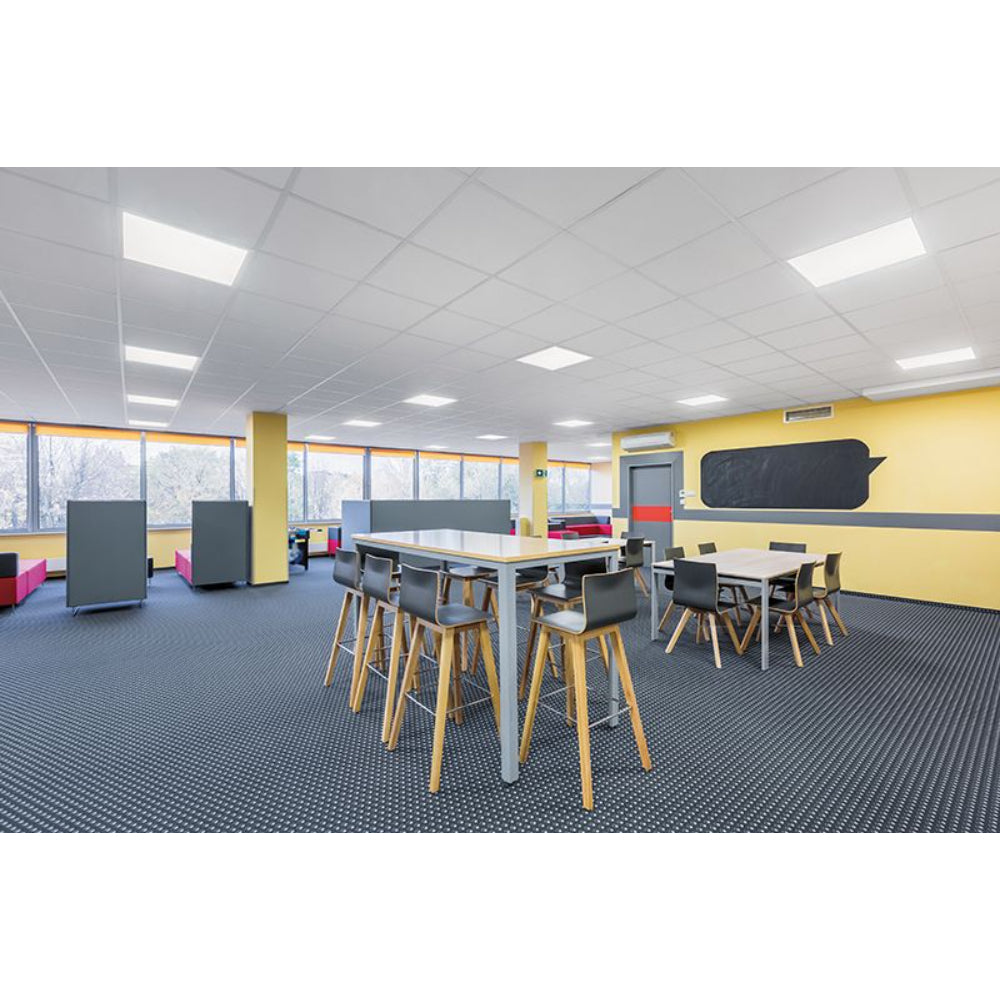

Day-Brite / CFI FluxPanel LED recessed is a highly versatile luminaire designed to provide smooth lighting gradient on the lens surface and ease of installation. Available for use in recessed, suspended,and surface mount orientation, FluxPanel is ideal for general lighting applications such as open office, schools, healthcare, and retail.

Benefits

  • FluxPanel provides low glare appeal in a flat lensed luminaire
  • High visual quality coupled with budget price point
  • Ease of installation and maintenance

Features

  • High visual quality
  • Smooth surface of light

Applications

  • Office
  • Banks
  • Hospitality
  • Fashion
  • Education
  • Hospitals and Care Centers
