Description

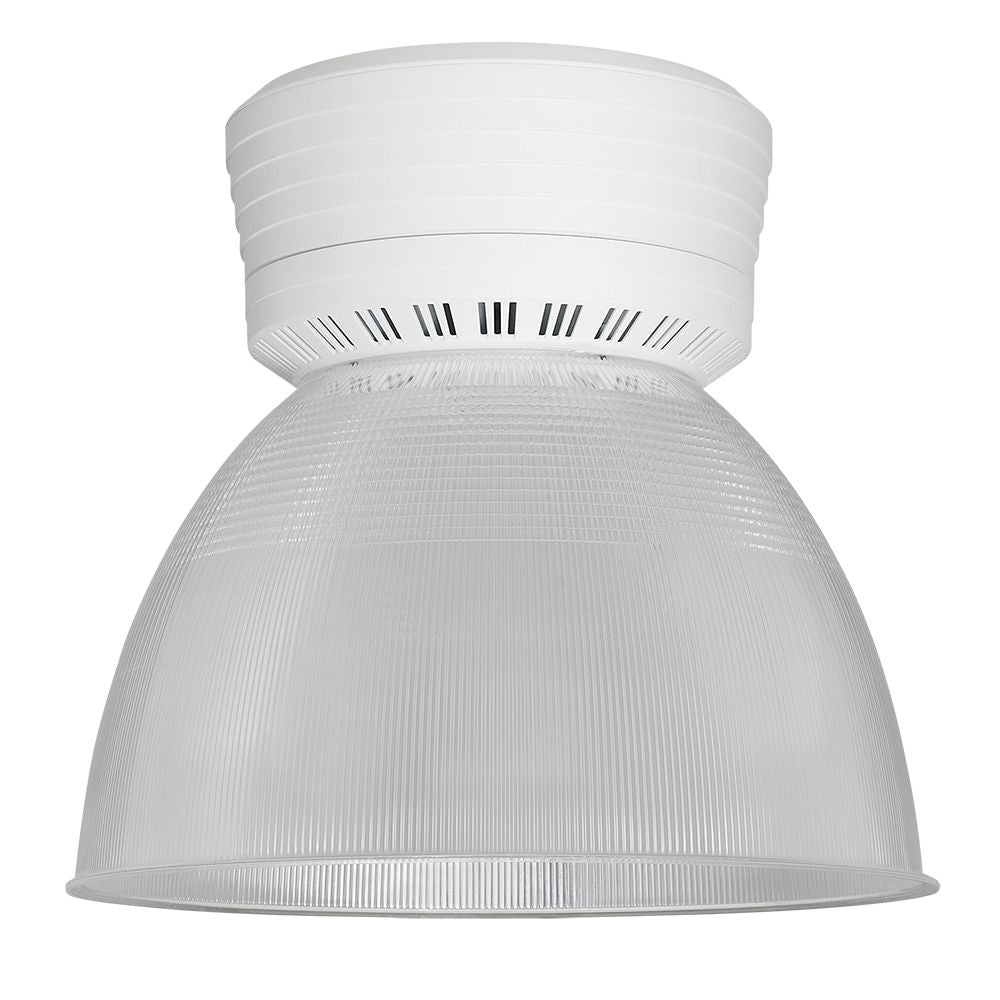

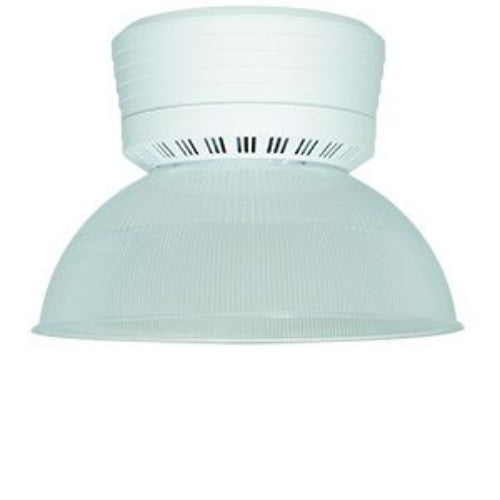

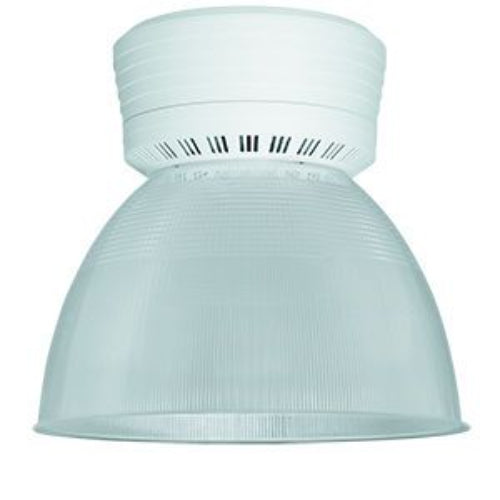

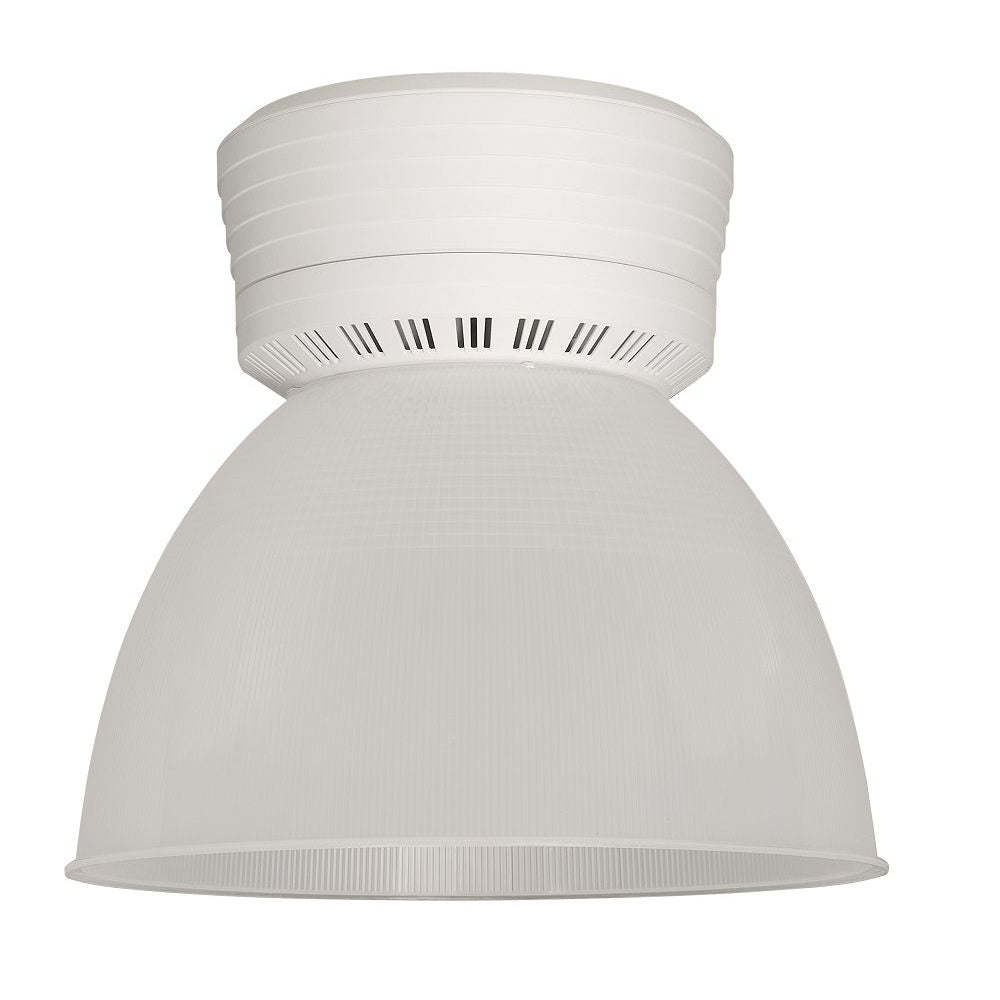

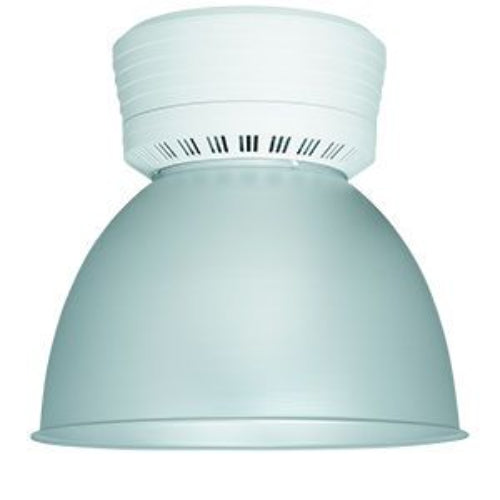

Day Brite Lighting RBX LED High Bay

RBX - familiar style, flexible options, high performance

Product Family Information

The RBX LED high bay luminaires have the familiar look and feel of traditional high bay luminaires. Available with acrylic or aluminum reflectors and a variety of lumen packages and color temperatures, the RBX is ideal for retail, industrial, and commercial applications.

Benefits

  • Reduce energy related costs
  • Familiar form with uplight available
  • Ease of installation
  • Ease of maintenance

Features

  • Delivers up to 136 LPW
  • Multiple reflector options
  • Multiple CCT/CRI options
  • Simple suspension mounting
  • Standard 0-10V dimming

Applications

  • Commercial
  • Retail
  • Offices
Product Variations
Image Title SKU
20,000 Nominal Delivered Lumens, 3500K, 80 CRI, 16" Clear Acrylic Reflector RBX20L835-ARR16S
20,000 Nominal Delivered Lumens, 3500K, 80 CRI, 16" White Acrylic Reflector RBX20L835-ARR16SL
20,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Clear Acrylic Short Reflector RBX20L835-ARR22S
20,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" White Acrylic Short Reflector RBX20L835-ARR22SL
20,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Clear Acrylic Standard Reflector RBX20L835-ARR22
20,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Aluminum Reflector RBX20L835-A22R
20,000 Nominal Delivered Lumens, 4000K, 80 CRI, 16" Clear Acrylic Reflector RBX20L840-ARR16S
20,000 Nominal Delivered Lumens, 4000K, 80 CRI, 16" White Acrylic Reflector RBX20L840-ARR16SL
20,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Clear Acrylic Short Reflector RBX20L840-ARR22S
20,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" White Acrylic Short Reflector RBX20L840-ARR22SL
20,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Clear Acrylic Standard Reflector RBX20L840-ARR22
20,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Aluminum Reflector RBX20L840-A22R
15,000 Nominal Delivered Lumens, 3500K, 80 CRI, 16" Clear Acrylic Reflector RBX15L835-ARR16S
15,000 Nominal Delivered Lumens, 3500K, 80 CRI, 16" White Acrylic Reflector RBX15L835-ARR16SL
15,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Clear Acrylic Short Reflector RBX15L835-ARR22S
15,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" White Acrylic Short Reflector RBX15L835-ARR22SL
15,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Clear Acrylic Standard Reflector RBX15L835-ARR22
15,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Aluminum Reflector RBX15L835-A22R
15,000 Nominal Delivered Lumens, 4000K, 80 CRI, 16" Clear Acrylic Reflector RBX15L840-ARR16S
15,000 Nominal Delivered Lumens, 4000K, 80 CRI, 16" White Acrylic Reflector RBX15L840-ARR16SL
15,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Clear Acrylic Short Reflector RBX15L840-ARR22S
15,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" White Acrylic Short Reflector RBX15L840-ARR22SL
15,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Clear Acrylic Standard Reflector RBX15L840-ARR22
15,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Aluminum Reflector RBX15L840-A22R
10,000 Nominal Delivered Lumens, 3500K, 80 CRI, 16" Clear Acrylic Reflector RBX10L835-ARR16S
10,000 Nominal Delivered Lumens, 3500K, 80 CRI, 16" White Acrylic Reflector RBX10L835-ARR16SL
10,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Clear Acrylic Short Reflector RBX10L835-ARR22S
10,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" White Acrylic Short Reflector RBX10L835-ARR22SL
10,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Clear Acrylic Standard Reflector RBX10L835-ARR22
10,000 Nominal Delivered Lumens, 3500K, 80 CRI, 22" Aluminum Reflector RBX10L835-A22R
10,000 Nominal Delivered Lumens, 4000K, 80 CRI, 16" Clear Acrylic Reflector RBX10L840-ARR16S
10,000 Nominal Delivered Lumens, 4000K, 80 CRI, 16" White Acrylic Reflector RBX10L840-ARR16SL
10,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Clear Acrylic Short Reflector RBX10L840-ARR22S
10,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" White Acrylic Short Reflector RBX10L840-ARR22SL
10,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Clear Acrylic Standard Reflector RBX10L840-ARR22
10,000 Nominal Delivered Lumens, 4000K, 80 CRI, 22" Aluminum Reflector RBX10L840-A22R
Product Files

Click for Day-Brite CFI-RBX LED High Bay Spec Sheet

Click for Day-Brite RBX LED High Bay DLC

Click for Day-Brite PDb-1615BN RBX LED High Bay Bulletin

Click for Day-Brite RBX LED High Bay Installation Sheet
