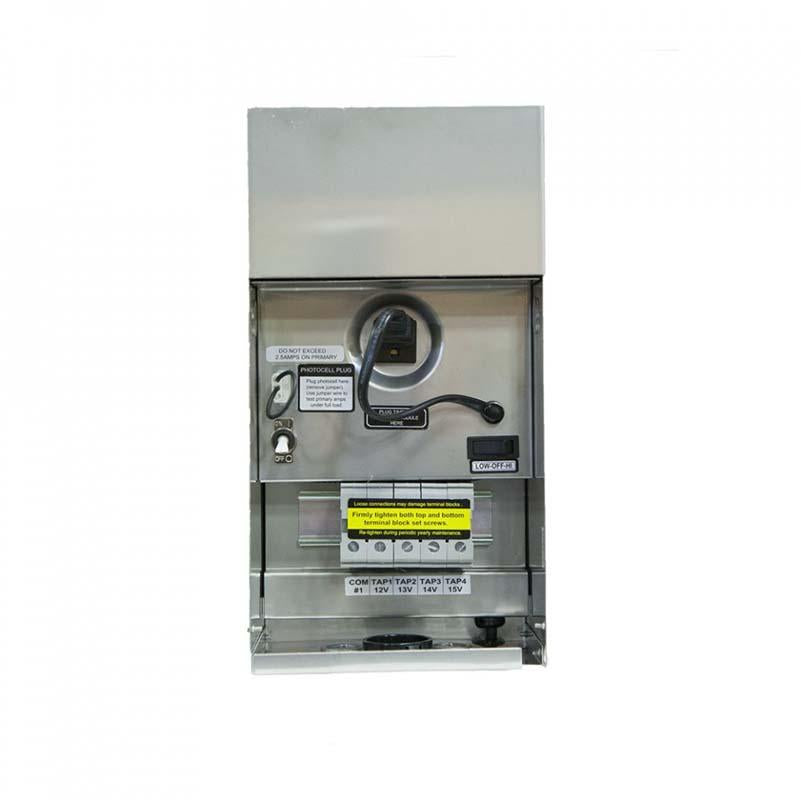

E1CJSSMT Journeymen Series Transformers By Cast Lighting

E1CJSSMT Journeymen Series Transformers By Cast Lighting

Cast Lighting

Mfg ID #: E1CJ300SSMT

  • $452.62

Free Shipping on orders over $150.00

Quantity DISCOUNTS (Click the "Help (?)" button)

The E1CJSSMT Journeymen Series Transformers By Cast Lighting is a 300w, 220v / 240v, 50/60Hz Journeyman Transformer - EXPORT

Description

The CAST Journeymen® Series Multi-Tap Transformers include secondary magnetic circuit breakers and can accommodate up to 10 fixture wires. These transformers are rugged and reliable.

Features
  • Resin-sealed toroidal core - ensures for the highest possible efficiency
  • Full transformer capacity can be loaded into any single voltage tap
  • Voltage taps of 12, 13, 14, and 15 Volts
  • Extra-large 125 Amp terminal blocks - to accommodate up to (10) #12/2 wires
  • Secondary magnetic circuit breakers
  • Stainless steel enclosure
Specifications

Dimensions

  • CJ300SSMT: 6.75" wide, 13" tall, 5" depth, 19 lbs.
  • CJ600SSMT: 6.75" wide, 13" tall, 5.75" depth, 26 lbs.
  • CJ900SSMT: 6.75" wide, 13 tall, 5.75" depth, 33 lbs.

Electrical

  • Input: 120, 60Hz.
  • Output: 12V, 13V, 14V, & 15V
  • Capacity: 300W, 600W, and 900W
  • Transformer Core: Epoxy resin encapsulated, magnetic toroid, primary thermal protection
  • Secondary Overload Protection: 25 Amp magnetic circuit breaker for the common
  • Hi-Low Switch: adds 1 Volt to all secondary taps
  • Power Cord: 6 ft heavy-duty #16/3 AWG power cord with 3-prong grounded wall plug
  • Secondary Terminal Blocks: 125 Amp rated, extra large

Housing

  • Stainless Steel with removable outer plate

Listing

  • cUL 1838 Listed, approved for exterior and interior use

Warranty

  • Lifetime on core and enclosure, 3-year warranty on electrical components
  • Fully field repairable
California Residents: Prop 65 regulations
Product Specification Files

Click for Specification Sheet 1

Click for Specification Sheet 2

Click for Specification Sheet 3

...Read More


The E1CJSSMT Journeymen Series Transformers By Cast Lighting is a 300w, 220v / 240v, 50/60Hz Journeyman Transformer - EXPORT

Description

The CAST Journeymen® Series Multi-Tap Transformers include secondary magnetic circuit breakers and can accommodate up to 10 fixture wires. These transformers are rugged and reliable.

Features
  • Resin-sealed toroidal core - ensures for the highest possible efficiency
  • Full transformer capacity can be loaded into any single voltage tap
  • Voltage taps of 12, 13, 14, and 15 Volts
  • Extra-large 125 Amp terminal blocks - to accommodate up to (10) #12/2 wires
  • Secondary magnetic circuit breakers
  • Stainless steel enclosure
Specifications

Dimensions

  • CJ300SSMT: 6.75" wide, 13" tall, 5" depth, 19 lbs.
  • CJ600SSMT: 6.75" wide, 13" tall, 5.75" depth, 26 lbs.
  • CJ900SSMT: 6.75" wide, 13 tall, 5.75" depth, 33 lbs.

Electrical

  • Input: 120, 60Hz.
  • Output: 12V, 13V, 14V, & 15V
  • Capacity: 300W, 600W, and 900W
  • Transformer Core: Epoxy resin encapsulated, magnetic toroid, primary thermal protection
  • Secondary Overload Protection: 25 Amp magnetic circuit breaker for the common
  • Hi-Low Switch: adds 1 Volt to all secondary taps
  • Power Cord: 6 ft heavy-duty #16/3 AWG power cord with 3-prong grounded wall plug
  • Secondary Terminal Blocks: 125 Amp rated, extra large

Housing

  • Stainless Steel with removable outer plate

Listing

  • cUL 1838 Listed, approved for exterior and interior use

Warranty

  • Lifetime on core and enclosure, 3-year warranty on electrical components
  • Fully field repairable
California Residents: Prop 65 regulations
