Description

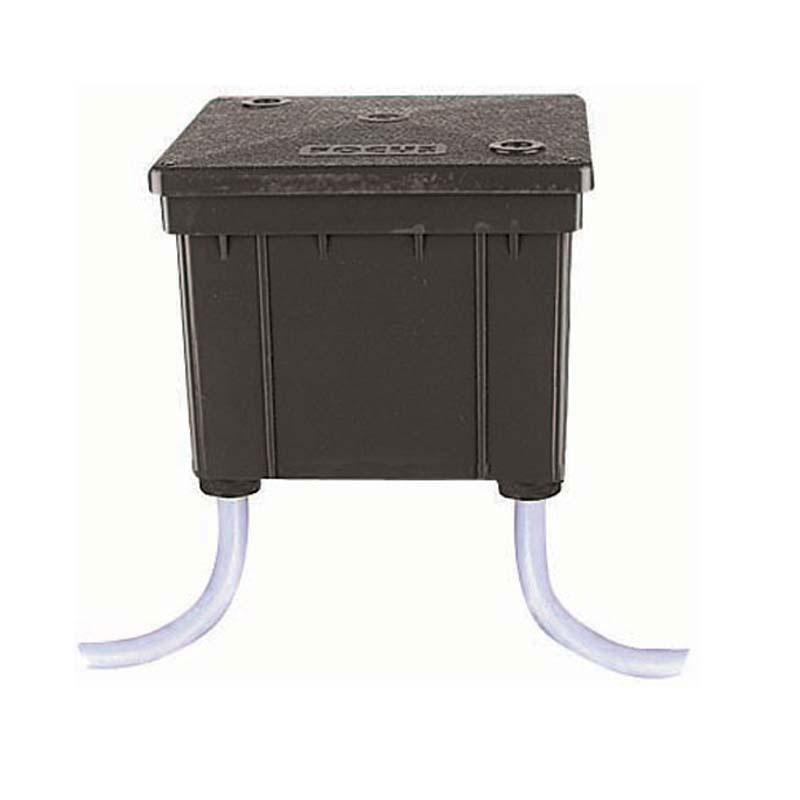

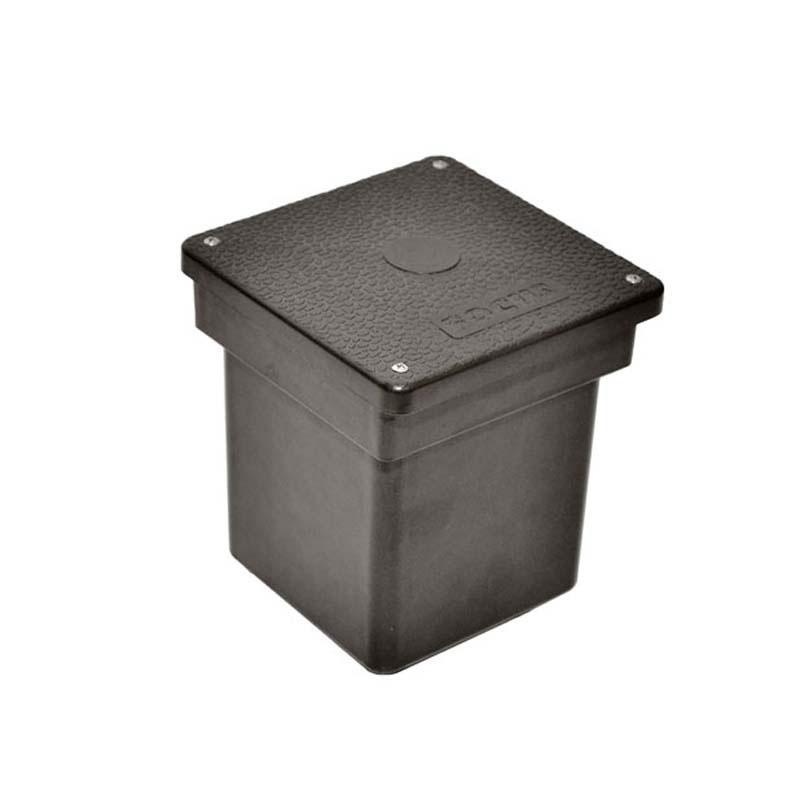

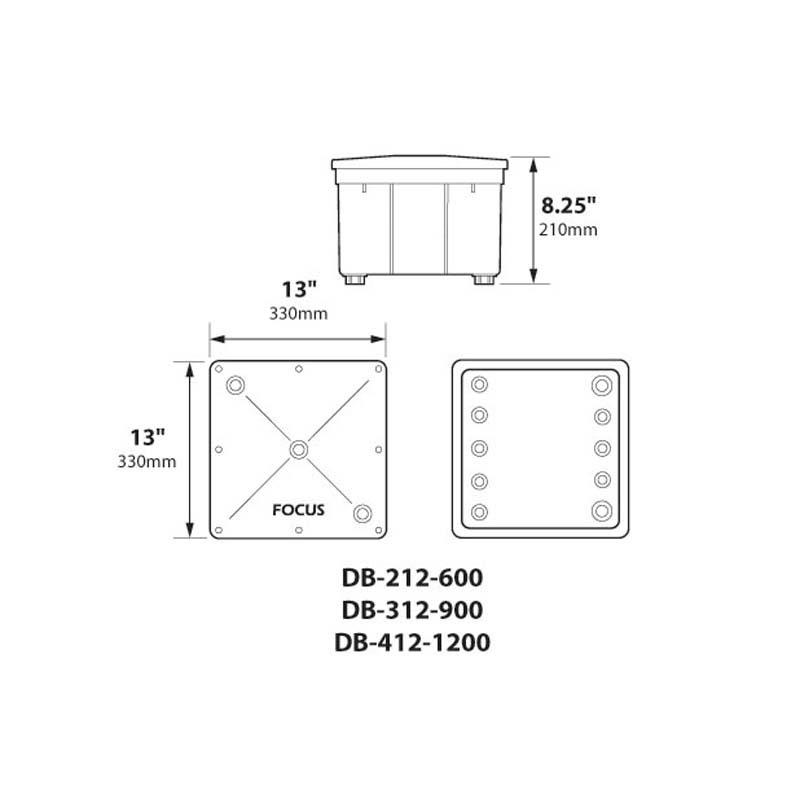

Focus Industries DB-212 Magnetic Transformer (1 core Split)

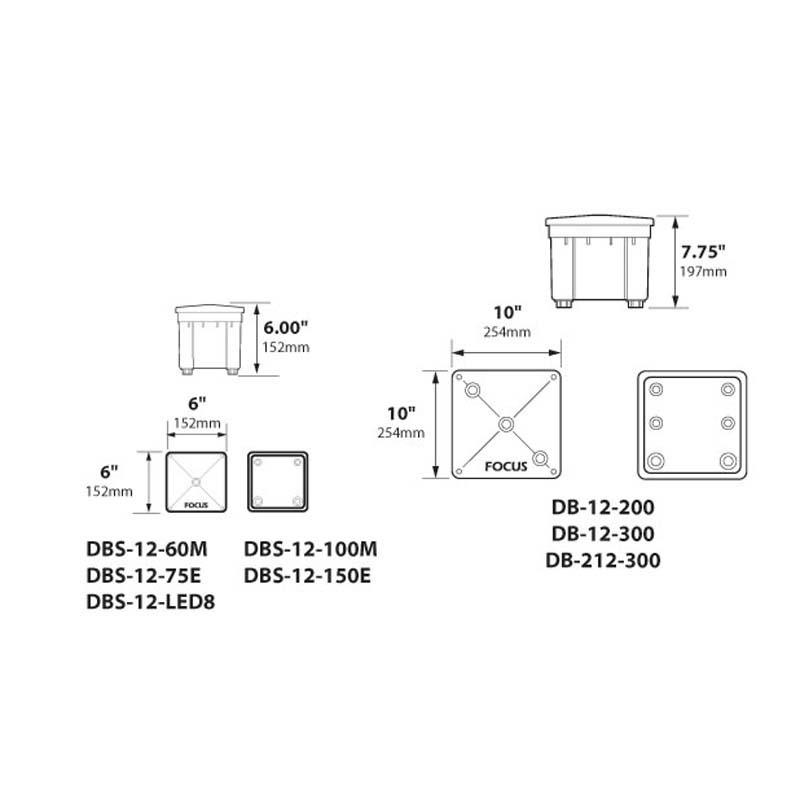

New: Optional Die Cast Brass Lid For Small Db-12-60Led, Db-12-75E
- Heavy duty, high temperature, fiberglass reinforced composite construction
- 1/2" NPS & 3/4" NPS bottom hubs for line voltage input, feed through & low voltage output
- 1/2" NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
- 120 volt primary, 12.5v secondary, 50/60hz standard
- Multi Volt 12.5v / 13.5v / 14.5v options available (see Transformer Options below)
- Isolation type magnetic transformer - no contact between 120v and 12v windings
- (compact electronic transformers available, see ordering information below)
- Magnetic circuit breaker for secondary overload/short circuit protection
- Long life, high temperature (130°C) transformer core
- Single phase, open core and coil
- Completely potted for longer life, more efficiency and reduced noise
- 2 feet of 12/2 direct burial cable for low voltage connections (1 per circuit and/or voltage tap)
- 1/2" NPS mounting hubs available on cover (specify at time of order if tapping required)
- NEMA12 rated enclosure for below grade direct burial applications
- UL 1838 and UL 1598 certified
- 3 year warranty on enclosure and mechanical/electrical components
Transformer Options
- MV 12.5v / 13.5v / 14.5v Multi Voltage output on any single circuit transformer
- MV1 (1) 12.5v / 13.5v / 14.5v Multi Voltage output on 2, 3 or 4 circuit transformer
- MV2 (2) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 2, 3 or 4 circuit transformer
- MV3 (3) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 3 or 4 circuit transformer
- MV4 (4) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 4 circuit transformer
- PC Photocell mounted on top
- RPC Remote photocell with 19' cord
- R 24V AC Relay control. (For use with existing irrigation controllers)
- 220V 220v Input / 12.5v output in 300w increments (no multi voltage)
- 240V 240v Input / 12.5v output in 300w increments (no multi voltage)
- 277V 270v Input / 12.5v output in 300w increments (no multi voltage)
Important Notice: Low voltage electronic transformers must be tested under load with a analog meter to achieve accurate results. Testing the transformer with a digital meter will produce an invalid reading of "no output". This characteristic is unique to electronic transformers that produce a square sine wave. We recommend use of an analog meter for testing with the transformer loaded to at least 20% of its rated output. Most electronic transformers returned as defective are actually good due to testing methods in the field that did not follow the above requirements.
