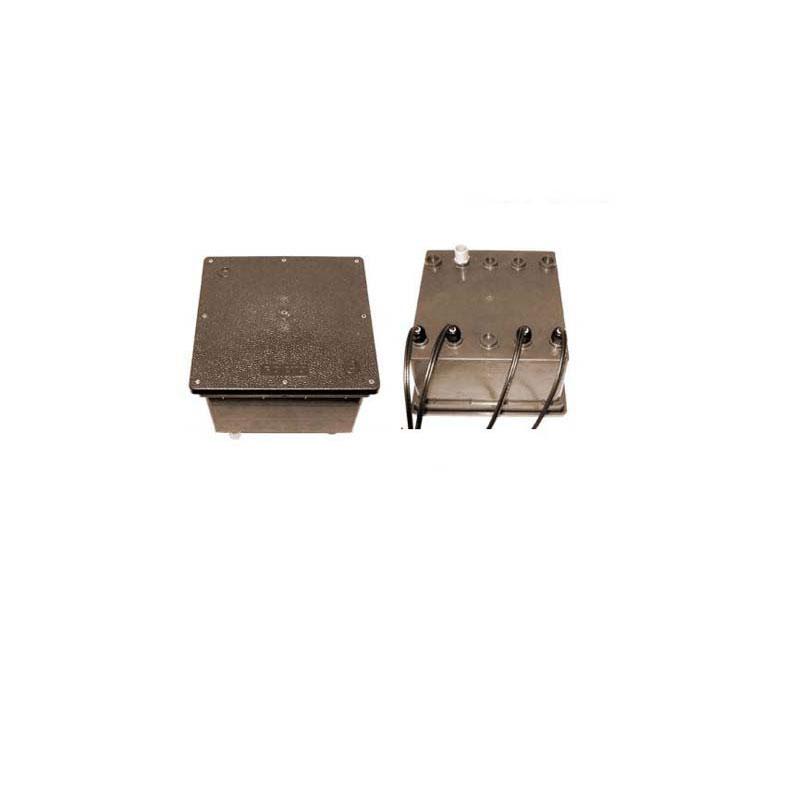

Focus Industries DB Series 1200W Magnetic Transformer (4 core)

Focus Industries

Mfg ID #: DB-412-1200-4C

  • $964.15

Normally ships within 2-5 Days

Expert Support & Project Quotes

Focus Industries DB Series 1200W Magnetic Transformer (4 core)

New: Optional Die Cast Brass Lid For Small Db-12-60Led, Db-12-75E

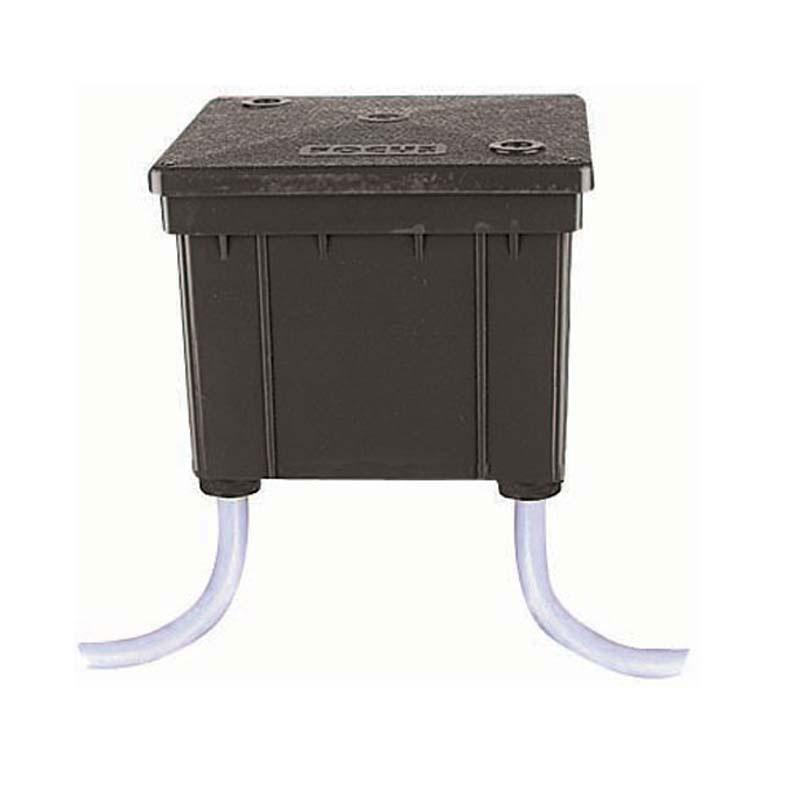

  • Heavy duty, high temperature, fiberglass reinforced composite construction
  • 1/2a³ NPS & 3/4a³ NPS bottom hubs for line voltage input, feed through & low voltage output
  • 1/2a³ NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
  • 120 volt primary, 12.5v secondary, 50/60hz standard
  • Multi Volt 12.5v / 13.5v / 14.5v options available (see Transformer Options below)
  • Isolation type magnetic transformer a" no contact between 120v and 12v windings
  • (compact electronic transformers available, see ordering information below)
  • Magnetic circuit breaker for secondary overload/short circuit protection
  • Long life, high temperature (130a°C) transformer core
  • Single phase, open core and coil
  • Completely potted for longer life, more efficiency and reduced noise
  • 2 feet of 12/2 direct burial cable for low voltage connections (1 per circuit and/or voltage tap)
  • 1/2a³ NPS mounting hubs available on cover (specify at time of order if tapping required)

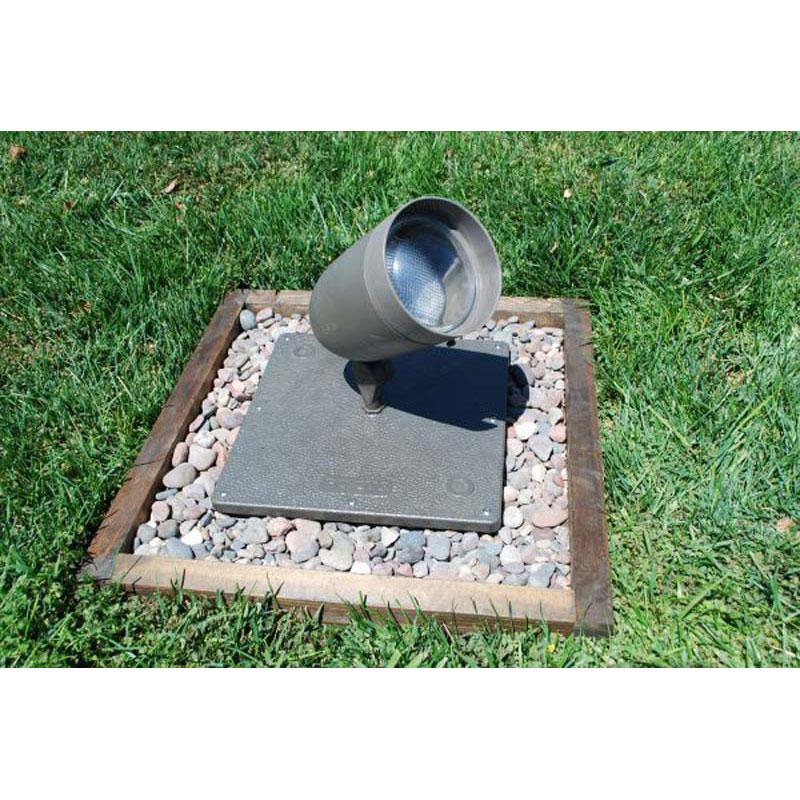

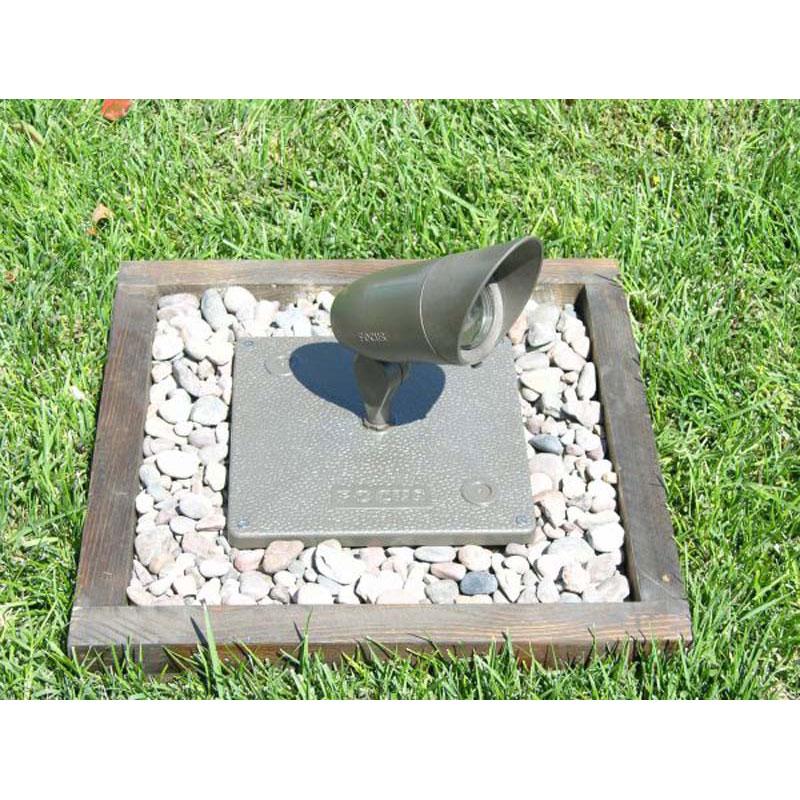

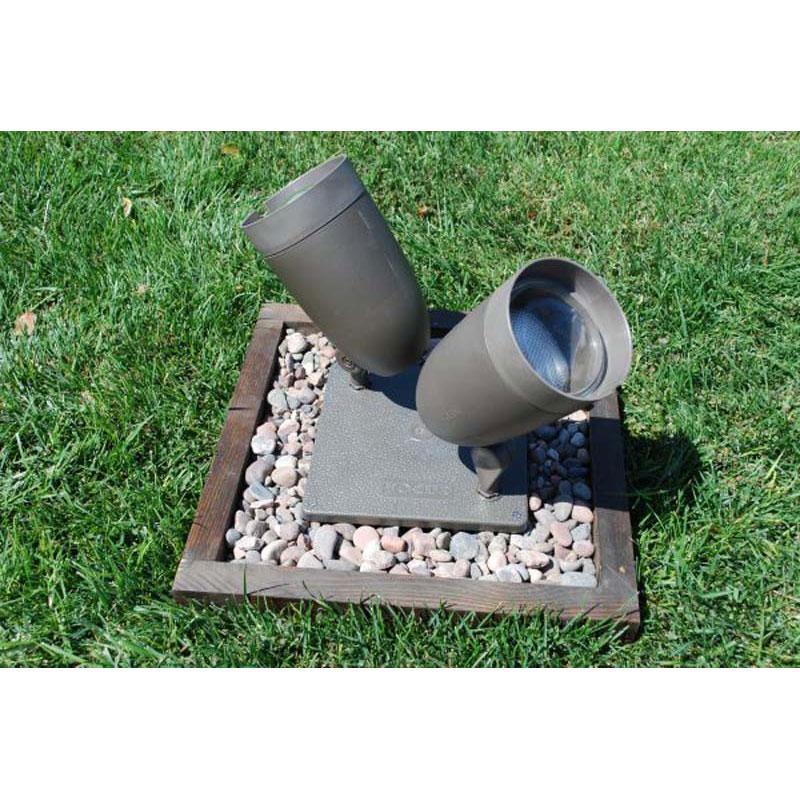

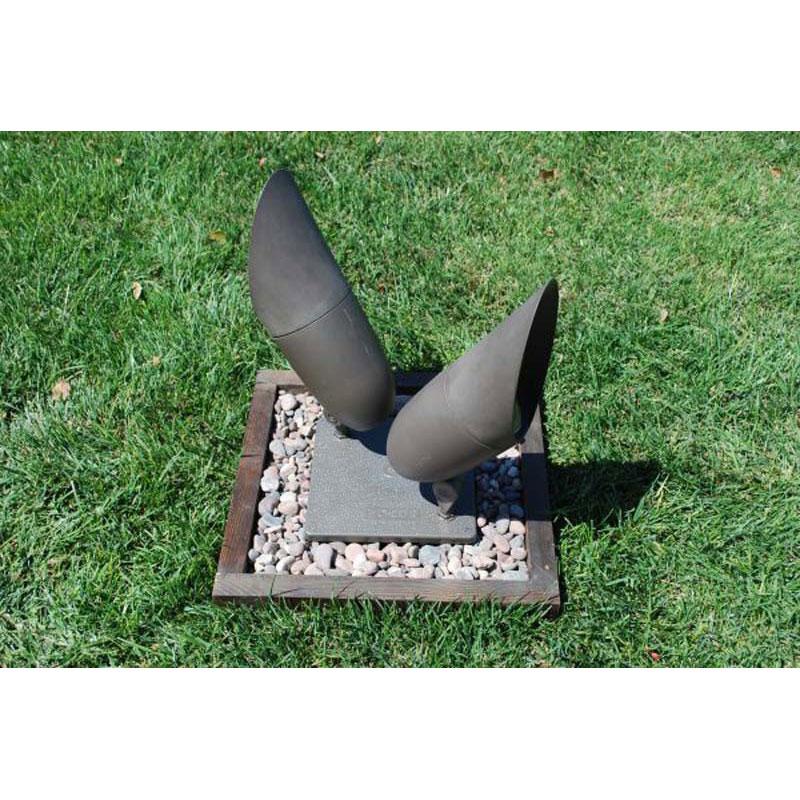

  • NEMA12 rated enclosure for below grade direct burial applications
  • UL 1838 and UL 1598 certified
  • 3 year warranty on enclosure and mechanical/electrical components
Transformer Options
  • MV 12.5v / 13.5v / 14.5v Multi Voltage output on any single circuit transformer
  • MV1 (1) 12.5v / 13.5v / 14.5v Multi Voltage output on 2, 3 or 4 circuit transformer
  • MV2 (2) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 2, 3 or 4 circuit transformer
  • MV3 (3) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 3 or 4 circuit transformer
  • MV4 (4) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 4 circuit transformer
  • PC Photocell mounted on top
  • RPC Remote photocell with 19a² cord
  • R 24V AC Relay control. (For use with existing irrigation controllers)
  • 220V 220v Input / 12.5v output in 300w increments (no multi voltage)
  • 240V 240v Input / 12.5v output in 300w increments (no multi voltage)
  • 277V 270v Input / 12.5v output in 300w increments (no multi voltage)

Important Notice: Low voltage electronic transformers must be tested under load with a analog meter to achieve accurate results. Testing the transformer with a digital meter will produce an invalid reading of aœno outputa. This characteristic is unique to electronic transformers that produce a square sine wave. We recommend use of an analog meter for testing with the transformer loaded to at least 20% of its rated output. Most electronic transformers returned as defective are actually good due to testing methods in the field that did not follow the above requirements.

Product Files

Click for Direct Burial Transformers Specification Sheet

...Read More


Focus Industries DB Series 1200W Magnetic Transformer (4 core)

  • Heavy duty, high temperature, fiberglass reinforced composite construction
  • 1/2a³ NPS & 3/4a³ NPS bottom hubs for line voltage input, feed through & low voltage output
  • 1/2a³ NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
  • 120 volt primary, 12.5v secondary, 50/60hz standard
  • Multi Volt 12.5v / 13.5v / 14.5v options available (see Transformer Options below)
  • Isolation type magnetic transformer a" no contact between 120v and 12v windings
  • (compact electronic transformers available, see ordering information below)
  • Magnetic circuit breaker for secondary overload/short circuit protection
  • Long life, high temperature (130a°C) transformer core
  • Single phase, open core and coil
  • Completely potted for longer life, more efficiency and reduced noise
  • 2 feet of 12/2 direct burial cable for low voltage connections (1 per circuit and/or voltage tap)
  • 1/2a³ NPS mounting hubs available on cover (specify at time of order if tapping required)
  • NEMA12 rated enclosure for below grade direct burial applications
  • UL 1838 and UL 1598 certified
  • 3 year warranty on enclosure and mechanical/electrical components
  • MV 12.5v / 13.5v / 14.5v Multi Voltage output on any single circuit transformer
  • MV1 (1) 12.5v / 13.5v / 14.5v Multi Voltage output on 2, 3 or 4 circuit transformer
  • MV2 (2) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 2, 3 or 4 circuit transformer
  • MV3 (3) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 3 or 4 circuit transformer
  • MV4 (4) 12.5v / 13.5v / 14.5v Multi Voltage outputs on 4 circuit transformer
  • PC Photocell mounted on top
  • RPC Remote photocell with 19a² cord
  • R 24V AC Relay control. (For use with existing irrigation controllers)
  • 220V 220v Input / 12.5v output in 300w increments (no multi voltage)
  • 240V 240v Input / 12.5v output in 300w increments (no multi voltage)
  • 277V 270v Input / 12.5v output in 300w increments (no multi voltage)

Important Notice: Low voltage electronic transformers must be tested under load with a analog meter to achieve accurate results. Testing the transformer with a digital meter will produce an invalid reading of aœno outputa. This characteristic is unique to electronic transformers that produce a square sine wave. We recommend use of an analog meter for testing with the transformer loaded to at least 20% of its rated output. Most electronic transformers returned as defective are actually good due to testing methods in the field that did not follow the above requirements.
