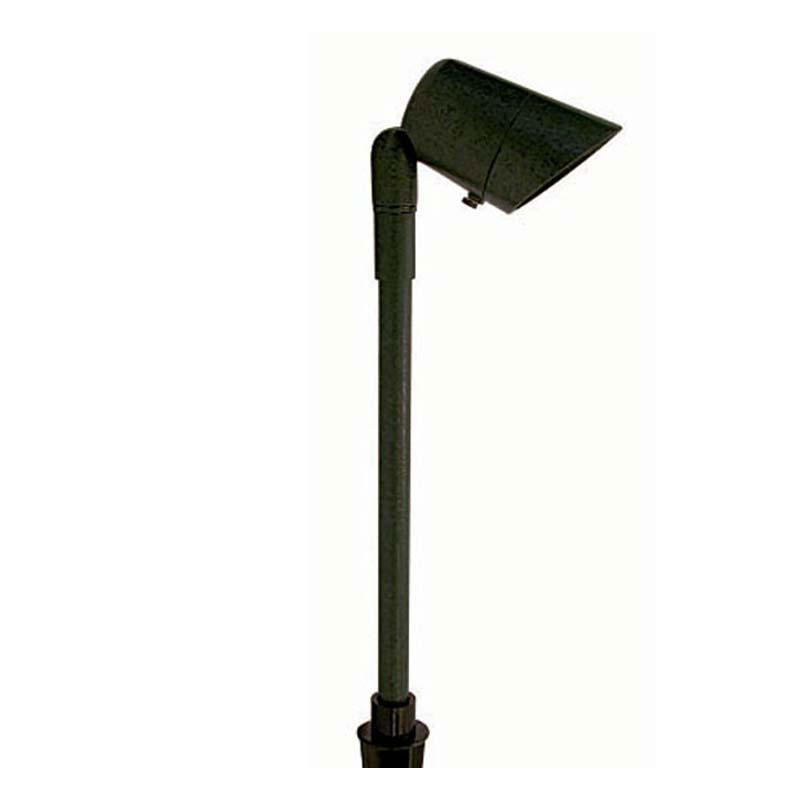

Focus Industries PGL-03 Series 35W Putting Green Light

Focus Industries

Mfg ID #: PGL-03-BLT

  • $151.60

Normally ships within 2-5 Days

Expert Support & Project Quotes

Quantity DISCOUNTS

Focus Industries PGL-03 Series 35W Putting Green Lights

Specification Details

  • Construction: Cast aluminum or brass Bullet with cast aluminum or brass adjustablea swivel; matching extruded aluminum or brass stanchion
  • Lens: Sandblasted wide spread tempered flat glass
  • Gasket: Black neosponge closed cell; .190a³ thickness
  • Lamp Supplied: 35w MR16 VWFL(FMW); 5000 hours rating (50w max.)
  • Lamp Options: LED & legacy lamp options see specification sheet
  • Socket: High temp ceramic GU5.3 bi-pin with 250a°C silicone lead wires
  • Wiring: Black 3 foot 18/2 zip cord (12v only)
    For 25 foot 16/2 fixture lead wire add -25F to catalog number.
  • Finish: Aluminum - Black texture polyester powder coat. Optional finishes available. Brass - Unfinished. Optional finishes available.
Product Files

Click for PGL-03 Specification Sheet

Click for PGL-03 Installation Sheet

...Read More


Focus Industries PGL-03 Series 35W Putting Green Lights

Specification Details

  • Construction: Cast aluminum or brass Bullet with cast aluminum or brass adjustablea swivel; matching extruded aluminum or brass stanchion
  • Lens: Sandblasted wide spread tempered flat glass
  • Gasket: Black neosponge closed cell; .190a³ thickness
  • Lamp Supplied: 35w MR16 VWFL(FMW); 5000 hours rating (50w max.)
  • Lamp Options: LED & legacy lamp options see specification sheet
  • Socket: High temp ceramic GU5.3 bi-pin with 250a°C silicone lead wires
  • Wiring: Black 3 foot 18/2 zip cord (12v only)
    For 25 foot 16/2 fixture lead wire add -25F to catalog number.
  • Finish: Aluminum - Black texture polyester powder coat. Optional finishes available. Brass - Unfinished. Optional finishes available.
