Focus Industries PL-01-LEDP Series 4W Round LED 3000K 5.5 Inch China Hat Path Light
Specifications:
-
Construction: Cast Aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion
-

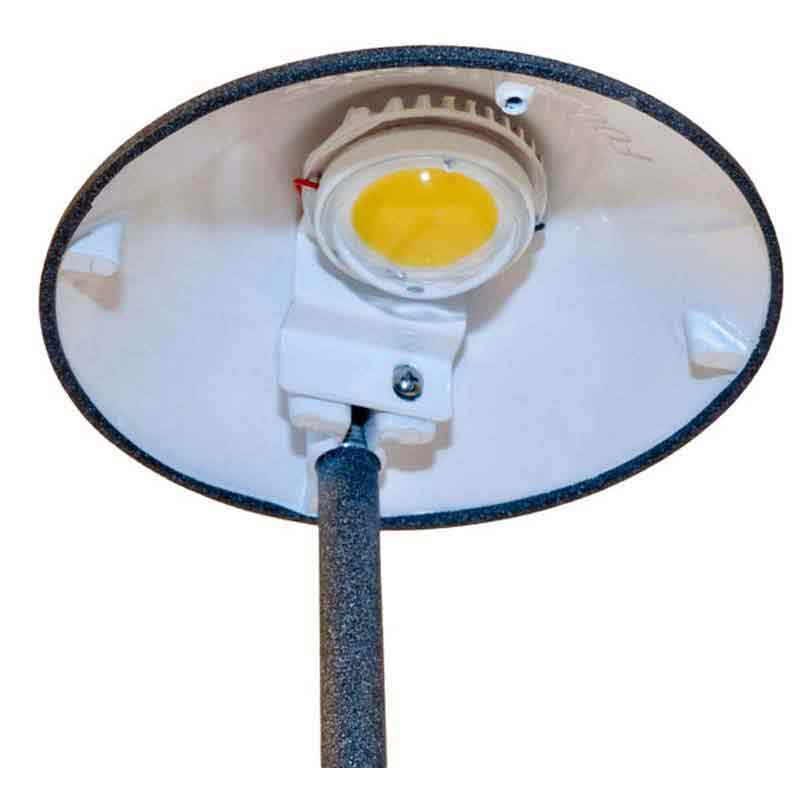

Light Source: 12v, 4w, 300 lumen integrated round LED flat panel, warm white 3000K
-
Lifetime Rating: 50,000 Hours
-
12V External Driver: 4w 350mA output, 12v AC input. Voltage range of 9 to 18 volts with optimum operating range of 10 to 15 volts for consistent performance and brightness. For use with magnetic transformers only.
-
Socket: None. LED is hard wired inside fixture
-
Lens: Clear acrylic (standard) Optional sand blast (-SB) or White (-WHT) available
-
Mounting: FA-03 black 9 inch ABS stake, tapped 1/2 inch NPS
-
Finish: Aluminum- Black texture polyester powder coat. Optional finishes available; Brass- Unfinished brass. Optional finishes available
-
Note: Optional 120v drivers available. Must use FA-26 mounting post or junction box
