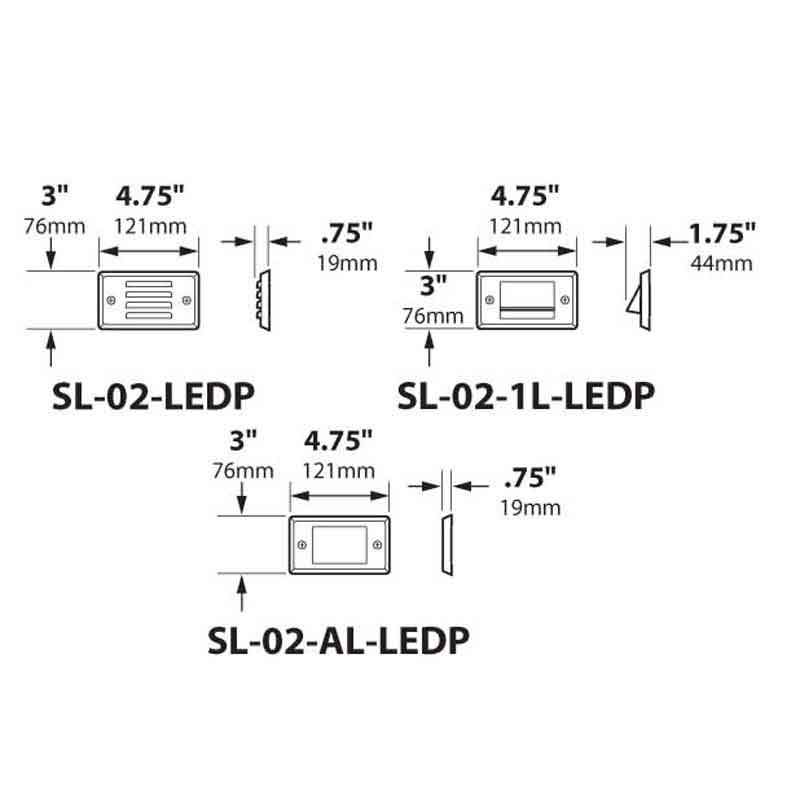

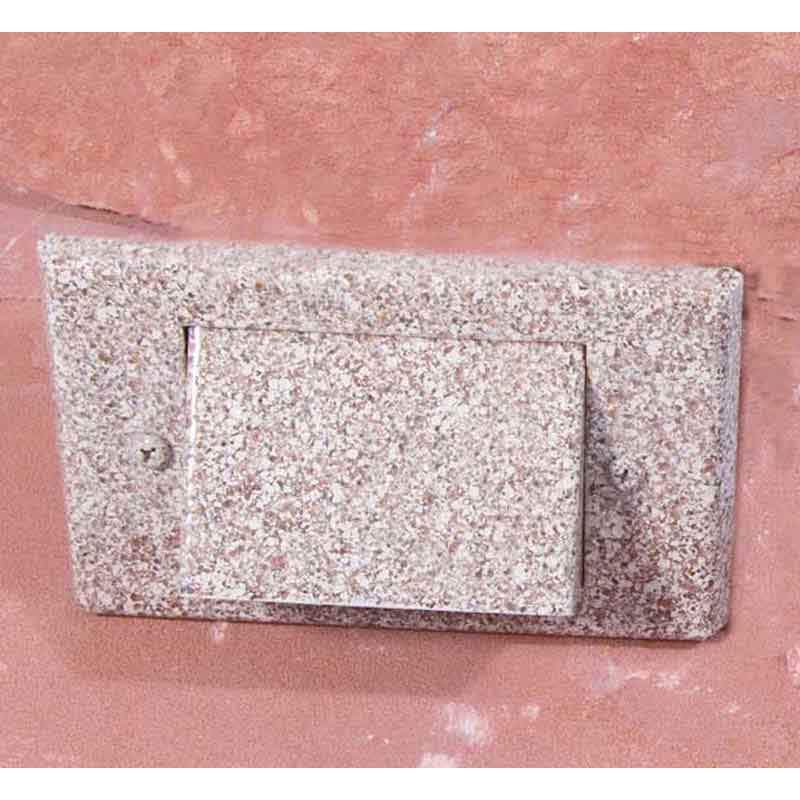

Focus Industries SL-02-1L-LEDP Series 4W LED 1 Louver Step Light 12V
- Construction: Stamped aluminum, brass, copper or stainless steel (-SS available only on SL-02 4 louver model) step/brick light with stamped stainless steel surface mounting bracket. No back box required.
3 Lens Options:
-SL-02-LEDP: Standard white acrylic; creates warm 2700K incandescent like color
-SL-02-LEDP-SB: Sand Blast clear acrylic; creates soft 3000K halogen like color
- Gasket: Black neosponge closed cell; .190 inch thickness
- Light Source: 4w integrated LED flat panel with external driver, warm white 3000K, 350 lumens (3000K)/380 lumens (5200K)
- Lifetime Rating: 50,000 hours
- Socket: None
- Driver: 4w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
- Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
- Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6 inch 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
- Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
- Mounting: Stainless Steel surface mount bracket; four screws and wall anchors provided; Face plate attaches to bracket with two provided screws
- Finish: Aluminum- Black texture polyester powder coat; optional finishes available, Brass- Unfinished; optional finishes available; Copper-Unfinished; optional finishes available; Stainless Steel-Brushed
- Caution: Must be powered by low voltage AC Magnetic transformer only
