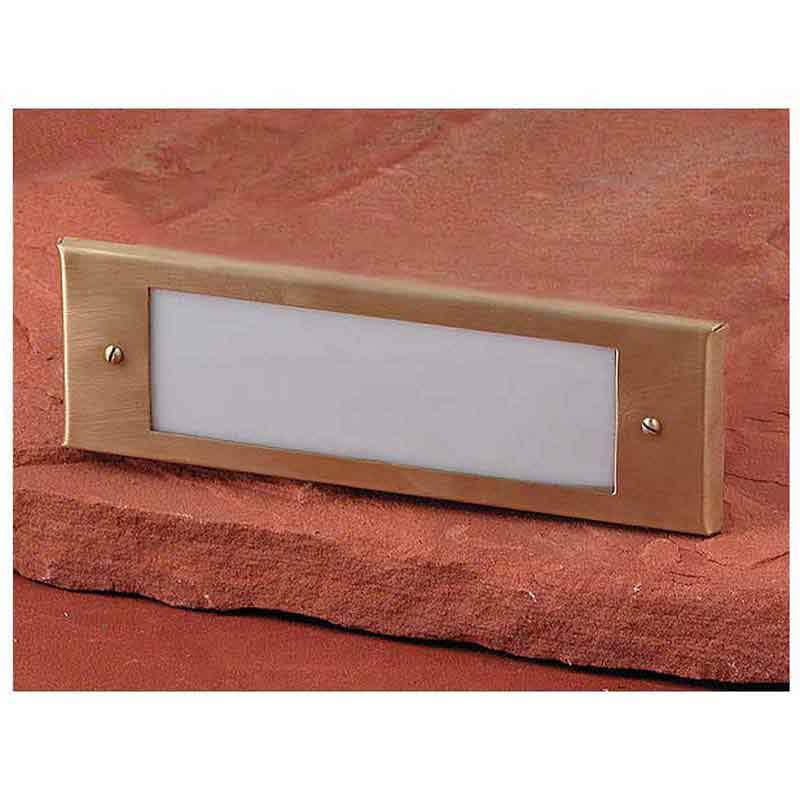

Focus Industries SL-04-AL-LEDP Series 8W LED Flat Panel Lensed Brick Light 12V
- Construction: Stamped aluminum, brass, copper or stainless steel step/brick light with stamped stainless steel surface mounting bracket. No back box required.
3 Lens Options:
-SL-04-LEDP: Standard white acrylic; creates warm 2700K incandescent like color
-SL-04-LEDP-SB: Sand Blast clear acrylic; creates soft 3000K halogen like color
-SL-04-LEDP-CL: Clear acrylic; bright halogen 3000K color
- Gasket: Black neosponge closed cell; .190 inch thickness
- Light Source: 12v, 8w integrated LED flat panel with external driver, warm white 3000K; 630 lumens (3000K)
- Lifetime Rating: 50,000 hours
- Socket: None
- Driver: 8w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
- Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
- Wiring: Red (+) and Black (-) 18 gauge zip cord from LED panel. Connects to external driver Red (+) and Black (-) 18 gauge zip cord. Additional 6 inch 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
- Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable(12/2, 10/2 or 8/2 only)
- Mounting: Stainless Steel surface mount bracket; four screws and wall anchors provided; Face plate attaches to bracket with two provided screws
- Finish: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available; Copper-Unfinished; optional finishes available; Stainless Steel-Brushed
- Caution: Must be powered by low voltage AC Magnetic transformer only
