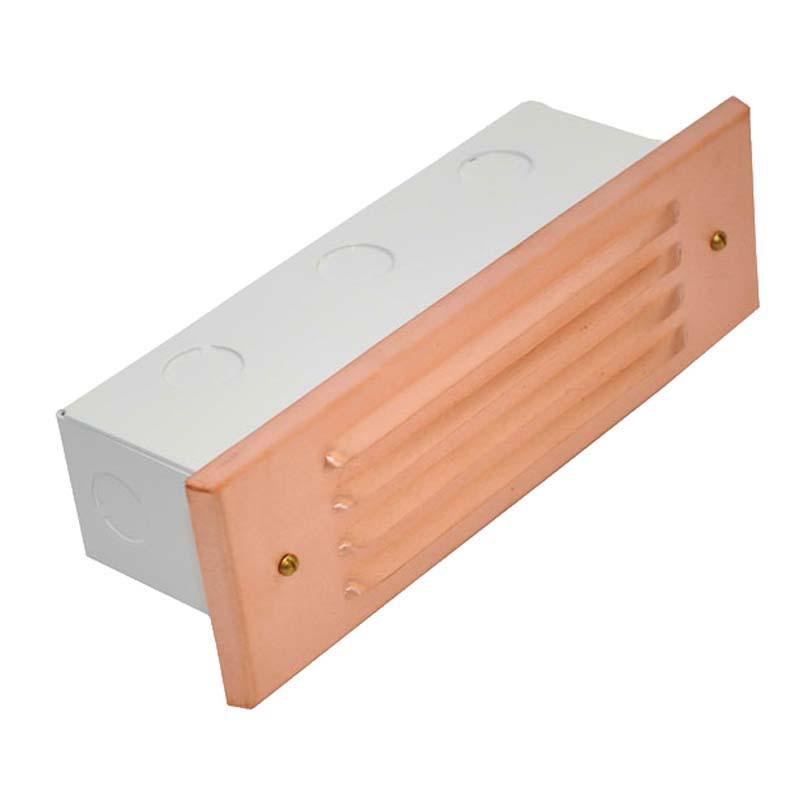

Focus Industries SL-04 Series 18W Brick Light
Mfg ID #: SL-04-BLT
Normally ships within 2-5 Days
Specifications:
-
Construction:
- Face Plate: Heavy duty stamped aluminum, brass, copper or Stainless Steel
- Back Box: Heavy duty stamped galvanized steel powder coated high reflective white
- Lens (-AL & -1L Models Only): High impact white acrylic
- Gasket: Black neosponge closed cell; .190" thickness
- Lamp Supplied: 2 x 18 watt S8 #1141; 1200 hours average rating (25w max.)
- Lamp Options: LED & legacy lamp options see specification sheet
- Socket: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s) with 200°C silicone lead wires
- Wiring: Black 3 foot 18/2 zip cord (12v only). For 25 foot 16/2 fixture lead wire add -25F to catalog number.
- Finish: Aluminum – Black texture polyester powder coat. Optional finishes available. Brass – Unfinished. Optional finishes available. Copper - Unfinished. Optional finishes available. Stainless Steel - Brushed.
Product Files
Click for Focus Industries SL-04 Series 18W Brick Light Specification Sheet
Click for Focus Industries SL-04 Series Installation Instructions
Specifications:
-
Construction:
- Face Plate: Heavy duty stamped aluminum, brass, copper or Stainless Steel
- Back Box: Heavy duty stamped galvanized steel powder coated high reflective white
- Lens (-AL & -1L Models Only): High impact white acrylic
- Gasket: Black neosponge closed cell; .190" thickness
- Lamp Supplied: 2 x 18 watt S8 #1141; 1200 hours average rating (25w max.)
- Lamp Options: LED & legacy lamp options see specification sheet
- Socket: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s) with 200°C silicone lead wires
- Wiring: Black 3 foot 18/2 zip cord (12v only). For 25 foot 16/2 fixture lead wire add -25F to catalog number.
- Finish: Aluminum – Black texture polyester powder coat. Optional finishes available. Brass – Unfinished. Optional finishes available. Copper - Unfinished. Optional finishes available. Stainless Steel - Brushed.
