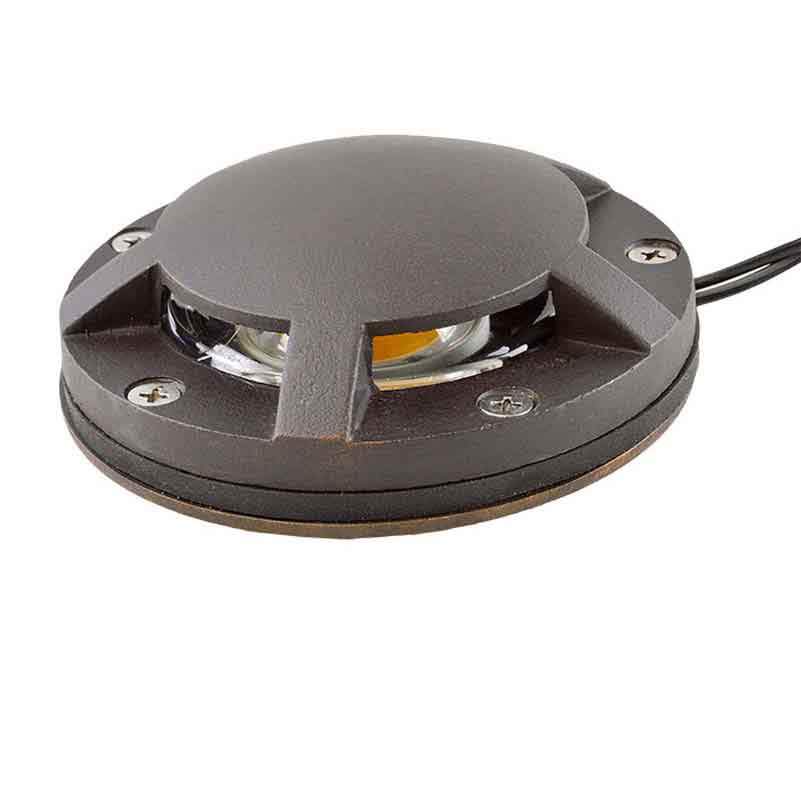

Focus Industries SL-20-SMMSM Series 4W LEDP SM Marker Light

Focus Industries SL-20-SMMSM Series 4W LEDP SM Marker Light

Specifications:

• Marker Dome: Cast Aluminum or cast brass,
• Overall cover height is 1.25", It is .875" from top of screw ledge
• Lens: High impact clear tempered convex glass
• O-Ring: High temperature red silicone
• Light Source: 4w 300 lumen integrated round LED flat panel, warm white 3000K; Optional cool white 5200K 320 lumen available
• Lifetime Rating: 50,000 hours
• 12V External Driver: HW-12-535012LED
• 120V External Driver: HW-12-6350120LED
• Socket: None. LED is hard wired inside fixture
• Wiring: Black 3 foot 18/2 zip cord from base of fixture (12v only)
• For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
• Connection: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
• Finish: Aluminum- Black texture polyester powder coat. Optional finishes available; Brass- Unfinished brass. Optional finishes available
• Note: Number of light openings may be customized, specify at time of order
• Vehicular Pressure Rating: 8800 lbs

Click for SL-20-SMMSM Specification Sheet

Click for SL-20-SMMSM Installation Instructions

Click for Focus Finish Options
