Focus Industries Finishes
Description

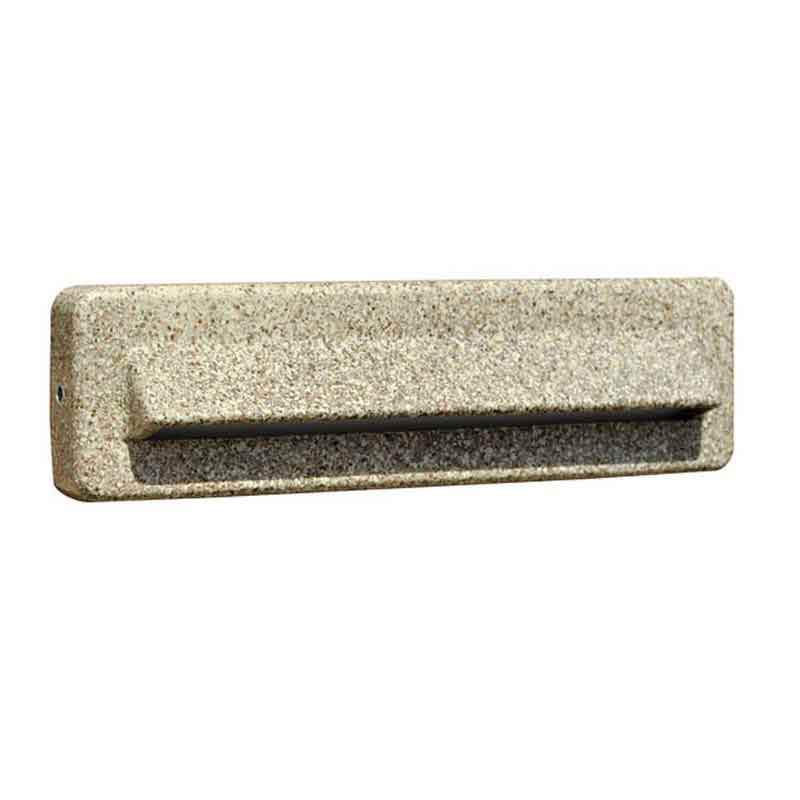

Focus Industries SL-50-LEDP Series 1 Louver Flat Panel LED Brick Light 12V
Specifications:
- Construction: Cast Aluminum or brass 1 louver brick light with stamped stainless steel surface mounting bracket. No back box required.
-
3 Lens Options:
-SL-50-LEDP: Standard white acrylic; creates warm 2700K incandescent like color
-SL-50-LEDP-SB: Sand Blast clear acrylic; creates soft 3000K halogen like color
-SL-50-LEDP-CL: Clear acrylic; bright halogen 3000K color - Gasket: Black neosponge closed cell; .190 inch thickness
- Light Source: 12v, 5w integrated flat panel LED with driver, warm white 3000K; 350 lumens (3000K) / 380 lumens (5200K)
- Lifetime Rating: 50,000 hours
- Driver: 4w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
- Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
- Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6 inch 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
- Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
- Mounting: Stainless Steel surface mount bracket; two screws and wall anchors provided; Face plate attaches to bracket with two provided set screws
- Finsh: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available.
- Caution: Must be powered by low voltage AC magnetic transformer only.
Product Files
Click for SL-50-LEDP Specification Sheet
