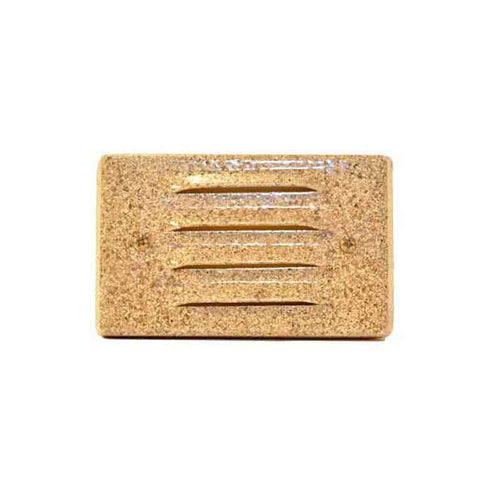

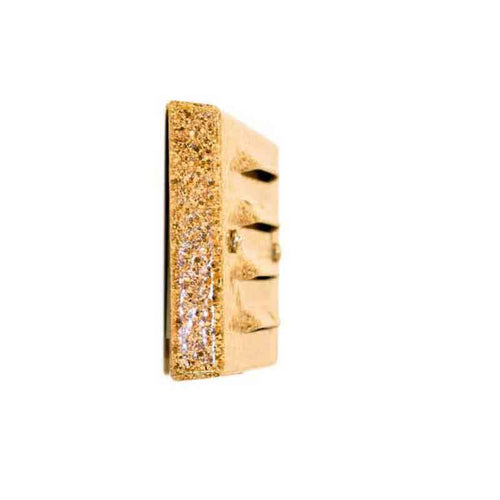

Focus Industries SL02NL Series 4 Louver Step Light 12V (Lamp Not Included)

Save $6.73
Focus Industries | SKU: SL02NLBLT
No reviews

Select Finish: Aluminum/Black Texture
Price:
Sale price$87.98 USD Regular price$94.71 USD

Description

Focus Industries SL02NL Series 4 Louver Step Light 12V (Lamp Not Included)

Specifications:

  • Construction: Stamped aluminum, brass, copper or stainless steel (-SS available only on SL-02 4 louver model) step/brick light with stamped stainless steel surface mounting bracket. No back box required.
  • Gasket: Black neosponge closed cell; .190 inch thickness
  • Socket: None
  • Driver: 4w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
  • Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
  • Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6 inch 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
  • Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
  • Mounting: Stainless Steel surface mount bracket; four screws and wall anchors provided; Face plate attaches to bracket with two provided screws
  • Finish: Aluminum- Black texture polyester powder coat; optional finishes available, Brass- Unfinished; optional finishes available; Copper-Unfinished; optional finishes available; Stainless Steel-Brushed
  • Caution: Must be powered by low voltage AC Magnetic transformer only
