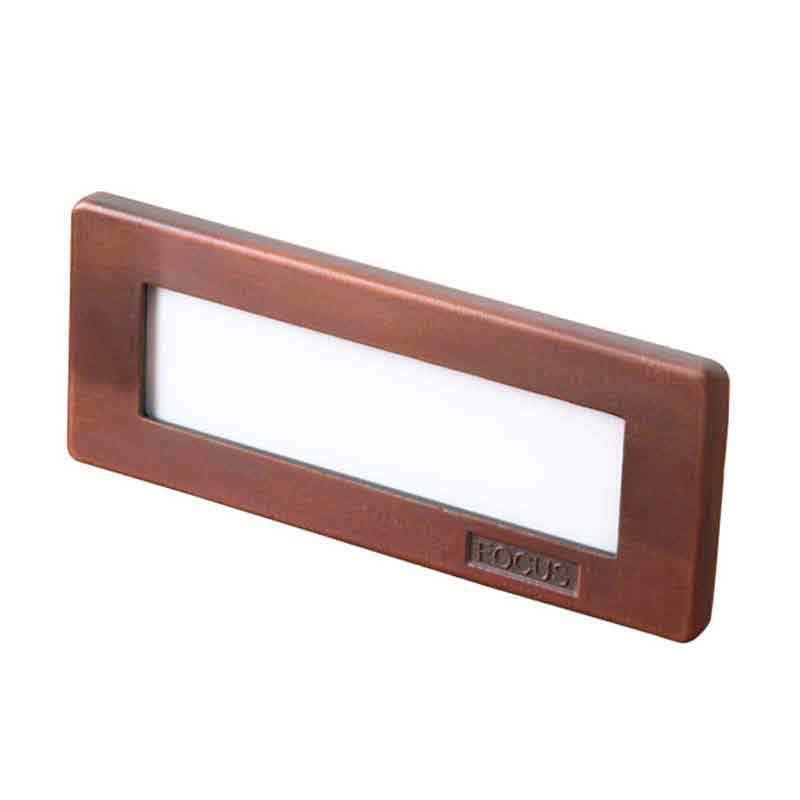

Focus Industries SL08ALNL Series Lensed Flat Panel Brick Light 12V (Lamp Not Included)
Specifications:
- Construction: Cast Aluminum or brass brick light with high impact white acrylic lens. Stamped stainless steel surface mounting bracket. No back box required.
- Gasket: Black neosponge closed cell; .190 inch thickness
- Socket: None
- Driver: 8w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
- Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
- Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6' 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
- Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable (12/2, 10/2 or 8/2 only)
- Mounting: Stainless Steel surface mount bracket; two screws and wall anchors provided; Face plate attaches to bracket with two provided set screws
- Finish: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available
- Caution: Must be powered by low voltage AC magnetic transformer only.
