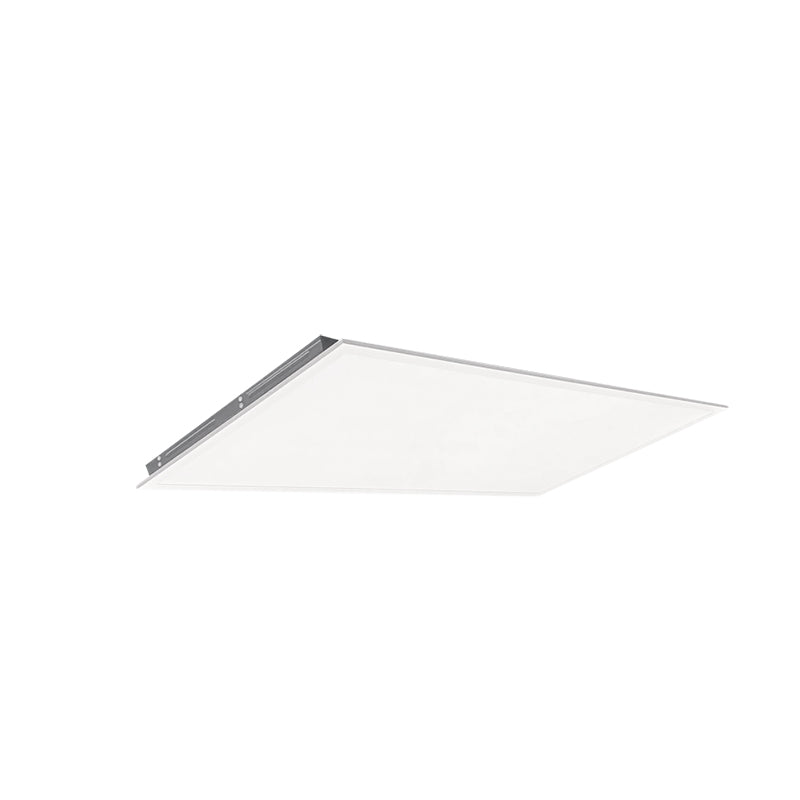

FSC Lighting FPB-AOK-L Series Adjustable Output LED Backlit Flat Panel
Features
Applications: Ideal for use in offices, retail, schools, hallways, multi-purpose rooms and hospitality
Construction: Housing made from cold rolled steel and extruded aluminum and finished with a post- production baked white powder coat. Frosted polystyrene diffuser.
Mounting: Recessed mount. Surface & suspended mount option offered.
Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency.
Operating Temperature: Suitable for -20°C - 50°C Ambient
Lumen Maintenance: L70 rating of 100,000 hours
Warranty: Five-year warranty. Terms and Conditions Apply.
Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards.DesignLights Consortium® (DLC) Pending. RoHS Compliant. IC Rated.
FPB-14-3500L-AOK-L-18WT-3500K
FPB-14-3500L-AOK-L-18WT-4000K
FPB-14-3500L-AOK-L-18WT-5000K
FPB-14-3500L-AOK-L-24WT-3500K
FPB-14-3500L-AOK-L-24WT-4000K
FPB-14-3500L-AOK-L-24WT-5000K
FPB-14-3500L-AOK-L-28WT-3500K
FPB-14-3500L-AOK-L-28WT-4000K
FPB-14-3500L-AOK-L-28WT-5000K
FPB-22-3500L-AOK-L-18WT-3500K
FPB-22-3500L-AOK-L-18WT-4000K
FPB-22-3500L-AOK-L-18WT-5000K
FPB-22-3500L-AOK-L-24WT-3500K
FPB-22-3500L-AOK-L-24WT-4000K
FPB-22-3500L-AOK-L-24WT-5000K
FPB-22-3500L-AOK-L-28WT-3500K
FPB-22-3500L-AOK-L-28WT-4000K
FPB-22-3500L-AOK-L-28WT-5000K
FPB-24-5000L-AOK-L-28WT-3500K
FPB-24-5000L-AOK-L-28WT-4000K
FPB-24-5000L-AOK-L-28WT-5000K
FPB-24-5000L-AOK-L-34WT-3500K
FPB-24-5000L-AOK-L-34WT-4000K
FPB-24-5000L-AOK-L-34WT-5000K
FPB-24-5000L-AOK-L-40WT-3500K
FPB-24-5000L-AOK-L-40WT-4000K
FPB-24-5000L-AOK-L-40WT-5000K

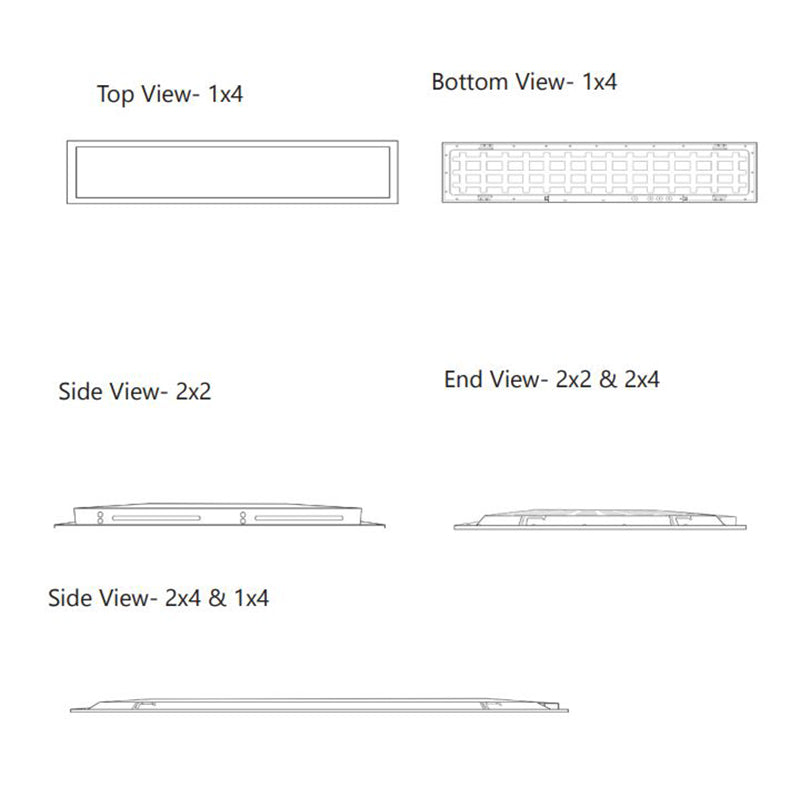

Dimensions
Version
Depth
Length
Width
Weight
2x2
1.5"
23.7"
23.7"
5.78lbs
2x4
1.5"
47.8"
23.7"
9.22lbs
1x4
1.5"
47.8"
11.9"
4.43lbs
Notes
Not all versions of this product may be DLC Premium qualified or DLC qualified.
Lumens will change based on fixture selection. Consult with factory for additional options
