FSC Lighting L285-NCH Series LED Lensed Strip

FSC LightingSKU: L28548-23W-4000K-NCH-5

Select Wattage: 23W
Select Color Temperature: 4000K (Shorter Lead Time)
Select Length: 48"
Price:
Sale price$0.00 USD

Fast & Easy Quote Request For FSC Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

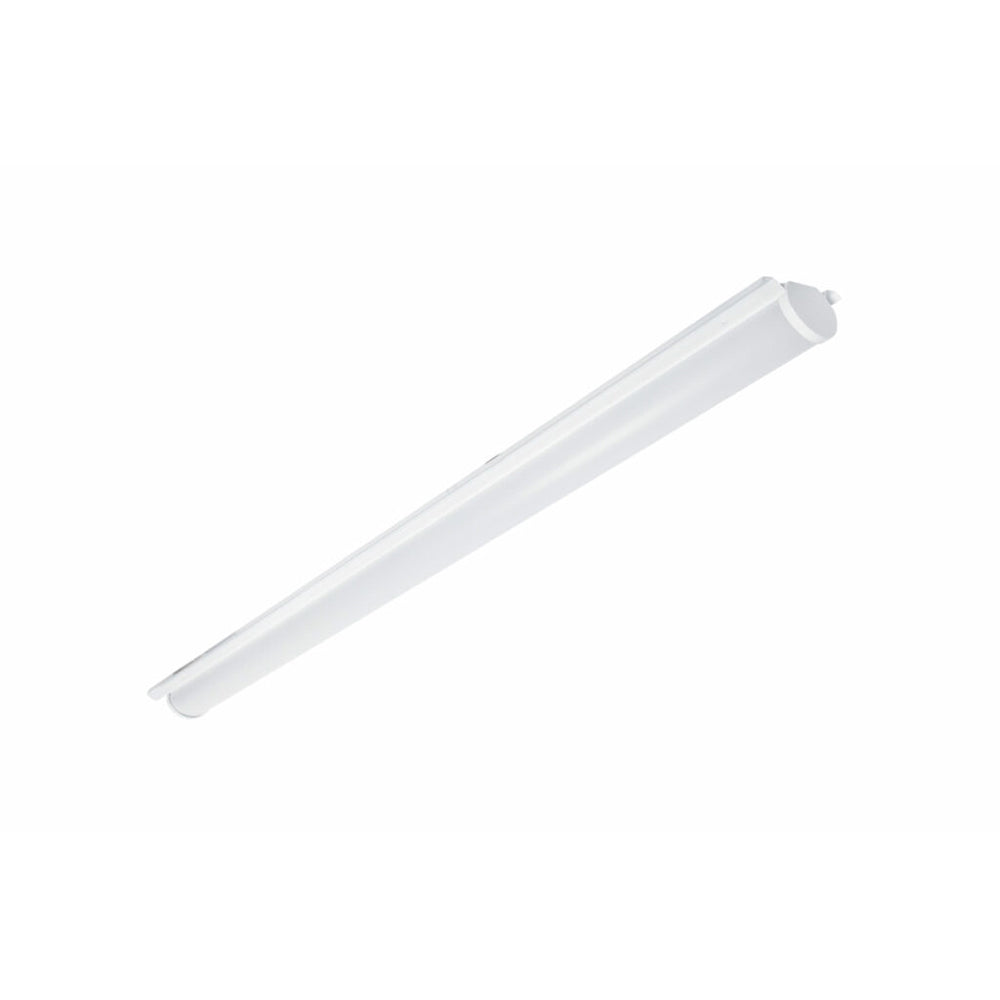

FSC Lighting L285-NCH Series LED Lensed Strip

The L285-NCH Series is a functional multi-purpose LED lensed strip kit that incorporates premium performance and construction durability.

Features

  • Applications: Ideal for use in warehouses, distribution centers, parking garages, covered parking, shops, utility rooms, stairwells, corridors, canopies and general lighting.
  • Construction: Ideal for use in warehouses, distribution centers, parking garages, covered parking, shops, utility rooms, stairwells, corridors, canopies and general lighting.
  • Mounting: Surface mount. Chain and cable mount ready. Cord and plug options offered.
  • Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency.
  • Operating Temperature: Suitable for -40°C - 50°C Ambient
  • Lumen Maintenance: L70 rating of 122,000 hours
  • Warranty: Five-year warranty. Terms and Conditions Apply.
  • Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) qualified. DLC 5.1 rating 1 . RoHS Compliant.
L28548-23W-4000K-NCH-5 L28548-23W-5000K-NCH-5 L28548-23W-3000K-NCH-5 L28548-23W-3500K-NCH-5 L28548-35W-4000K-NCH-5 L28548-35W-5000K-NCH-5
L28548-35W-3000K-NCH-5 L28548-35W-3500K-NCH-5 L28596-46W-4000K-NCH-5 L28596-46W-5000K-NCH-5 L28596-46W-3000K-NCH-5 L28596-46W-3500K-NCH-5
L28596-65W-4000K-NCH-5 L28596-65W-5000K-NCH-5 L28596-65W-3000K-NCH-5 L28596-65W-3500K-NCH-5

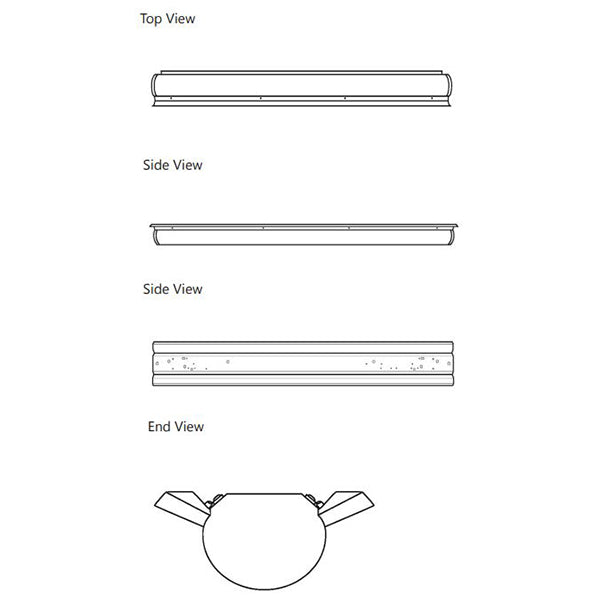

Dimensions

Version Depth Length Width Weight
4FT 2.50" 48.0" 5.85" 7lbs
8FT 2.50" 96.0" 5.85" 14lbs

Notes

  • Not all versions of this product may be DLC Premium qualified or DLC qualified.
  • Lumens will change based on fixture selection. Consult with factory for additional options.
  • Mounting kit is manufactured by Gripple Inc.
Product Files

Click for Spec Sheet

Click for Installation Instructions
