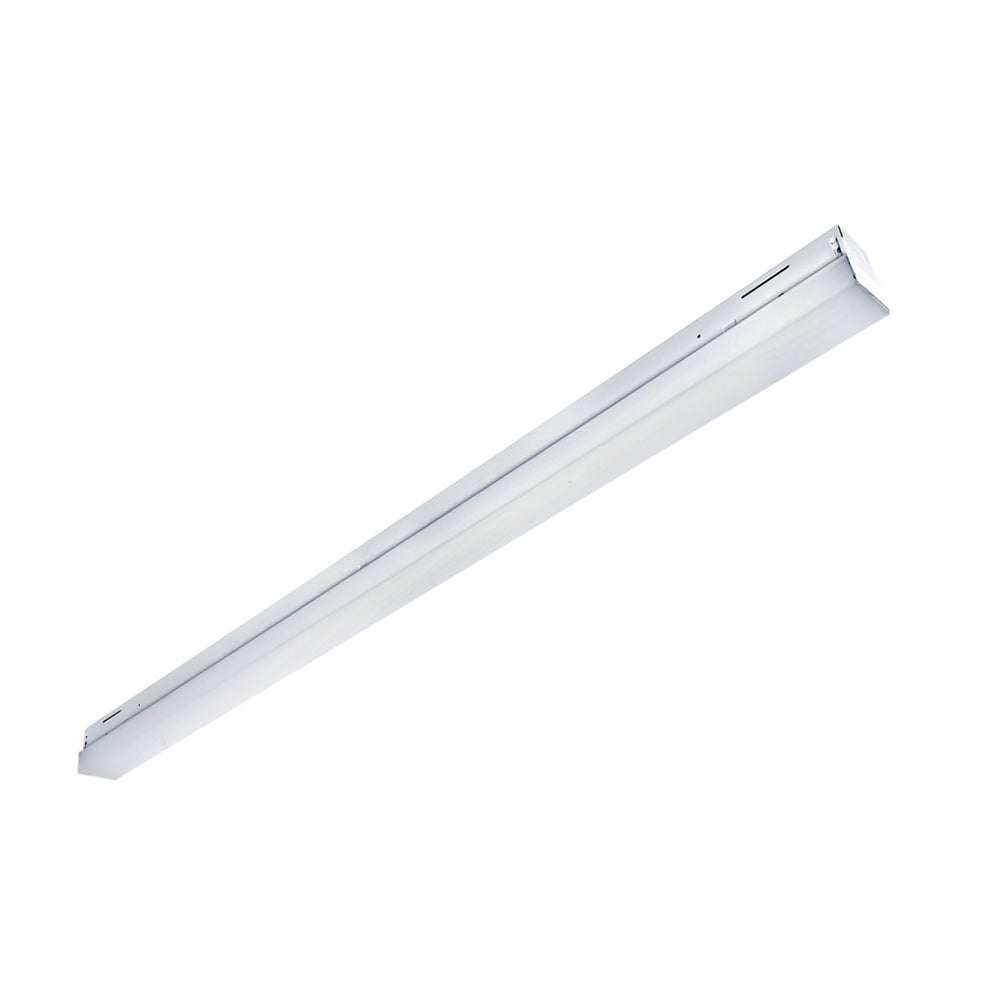

FSC Lighting L28600 Series LED Square-Lensed Strip
The L28600 Series is a functional multi-purpose LED square lensed strip that incorporates premium performance and construction durability
Features
- Applications: Ideal for use in warehouses, distribution centers, parking garages, covered parking, shops, utility rooms, stairwells, corridors, canopies and general lighting.
- Construction: Housing made from die formed heavy gauge cold rolled steel and is finished with a post- production baked white powder coat. Frosted lens.
- Mounting: Surface mount. Chain and cable mount ready. Cord and plug options offered.
- Electrical: Surface mount. Chain and cable mount ready. Cord and plug options offered.
- Operating Temperature: Suitable for -40°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 122,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 listed1 . RoHS Compliant.
| L28624-25W-3500K | L28624-25W-4000K | L28624-25W-5000K | L28648-18W-3500K | L28648-18W-4000K | L28648-18W-5000K |
| L28648-35W-3500K | L28648-35W-4000K | L28648-35W-5000K | L28648-40W-3500K | L28648-40W-4000K | L28648-40W-5000K |

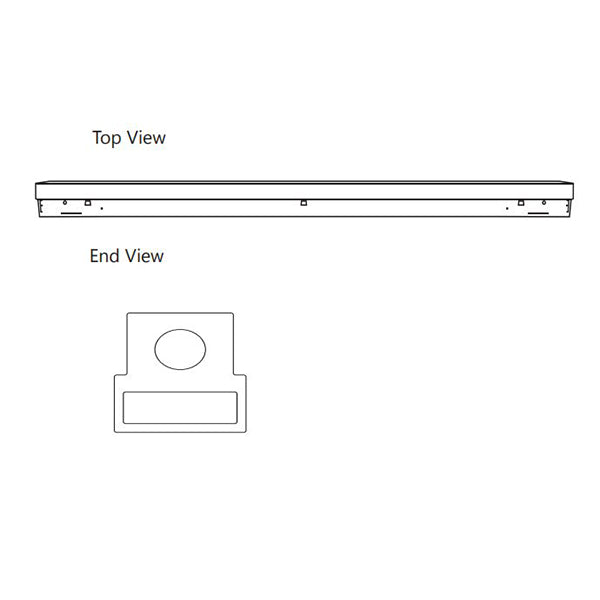

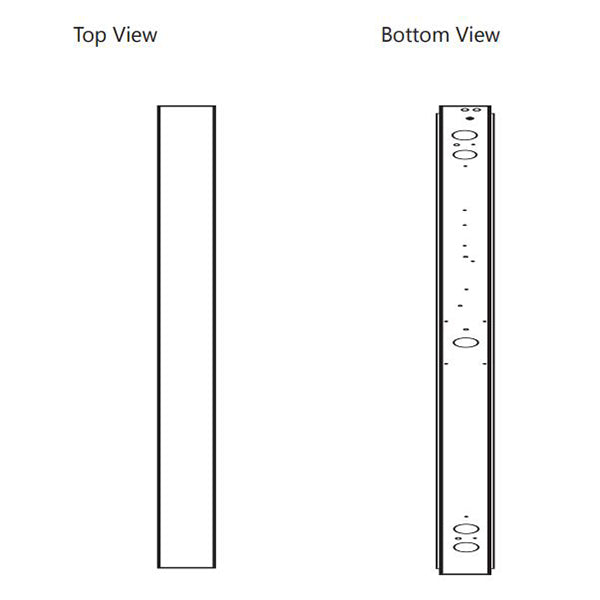

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2FT | 2.75" | 24.00" | 2.35" | 4lbs |
| 4FT | 2.75" | 48.00" | 2.35" | 7lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
- Mounting kit is manufactured by Gripple Inc.
PowerPlus enabled. The PowerPlus module turns every light fixture into a port to power electronics, smart devices and IoT connections.
