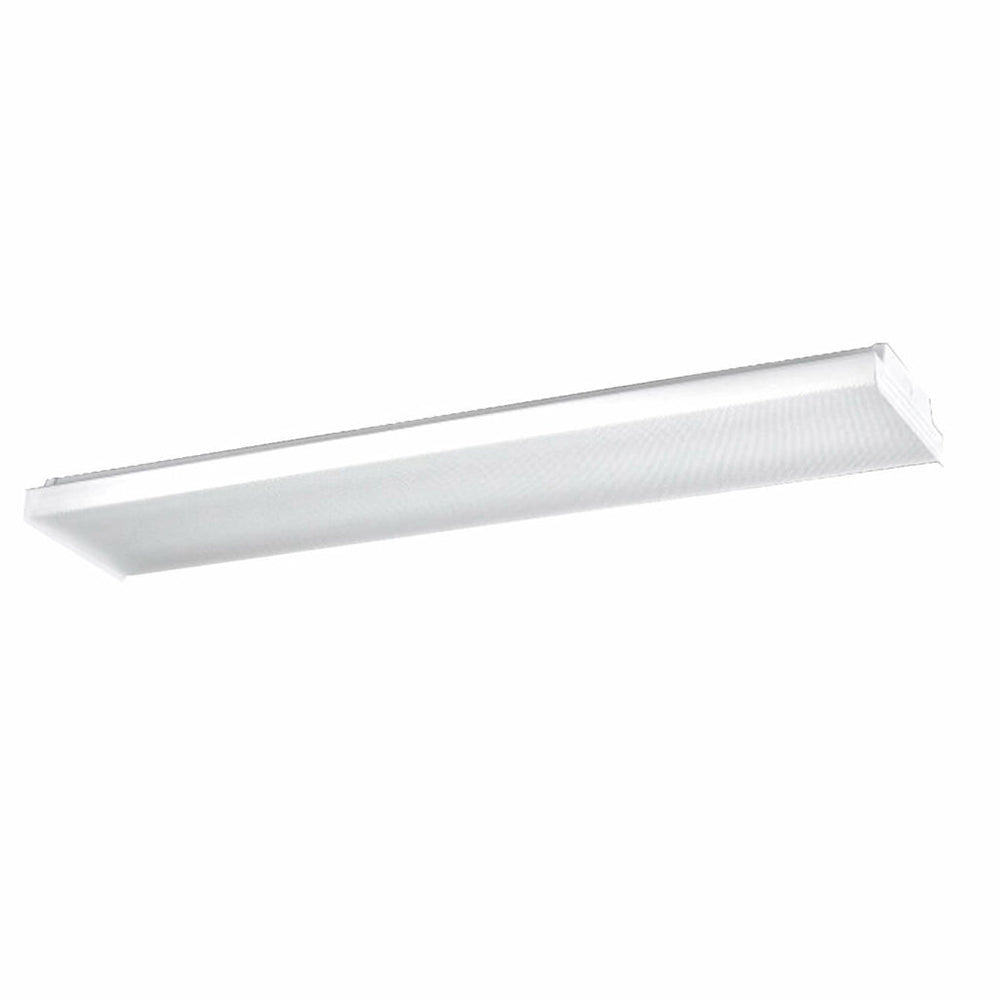

FSC Lighting L5600 Series LED Lensed Wraparound

FSC Lighting | SKU: L5648-22W-7-3500K-E5
No reviews

Select Wattage: 22W
Select Color Temperature: 3500K
Select Width: 7"
Sale price$0.00 USD


FSC Lighting L5600 Series LED Lensed Wraparound

The L5600 Series is a fuctional multi-purpose square lensed wraparound that incorporates premium performance and construction durability.


  • Applications: Ideal for use in warehouses, distribution centers, garages, utility rooms, corridors, schools, offices, hospitals and canopies.
  • Construction: Housing made from die formed heavy gauge pre-painted cold rolled steel and is finished with a post- production white polyester polymer. frosted diffuser.
  • Mounting: Surface mount. Chain and cable mount ready. Cord and plug options offered.
  • Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 480V option. 50/60HZ input frequency
  • Operating Temperature: Suitable for -20°C - 50°C Ambient
  • Lumen Maintenance: L70 rating of 122,000 hours
  • Warranty: Five-year warranty. Terms and Conditions Apply.
  • Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 qualified 1 . RoHS Compliant.
L5648-22W-7-3500K-E5 L5648-22W-7-4000K-E5 L5648-22W-7-5000K-E5 L5648-22W-9-3500K-E5 L5648-22W-9-4000K-E5 L5648-22W-9-5000K-E5
L5648-40W-7-3500K-E5 L5648-40W-7-4000K-E5 L5648-40W-7-5000K-E5 L5648-40W-9-3500K-E5 L5648-40W-9-4000K-E5 L5648-40W-9-5000K-E5


Version Depth Length Width Weight
2FT- 7IN 2.9" 24.0" 7.0" 5lbs
2FT- 9IN 2.9" 24.0" 9.0" 6lbs
4FT- 7IN 2.9" 48.0" 7.0" 11lbs
4FT- 9IN 2.9" 48.0" 9.0" 12lbs


  • Not all versions of this product may be DLC Premium qualified or DLC qualified.
  • Lumens will change based on fixture selection. Consult with factory for additional options.
  • Hanging kit manufactureed by Gripple Inc.
