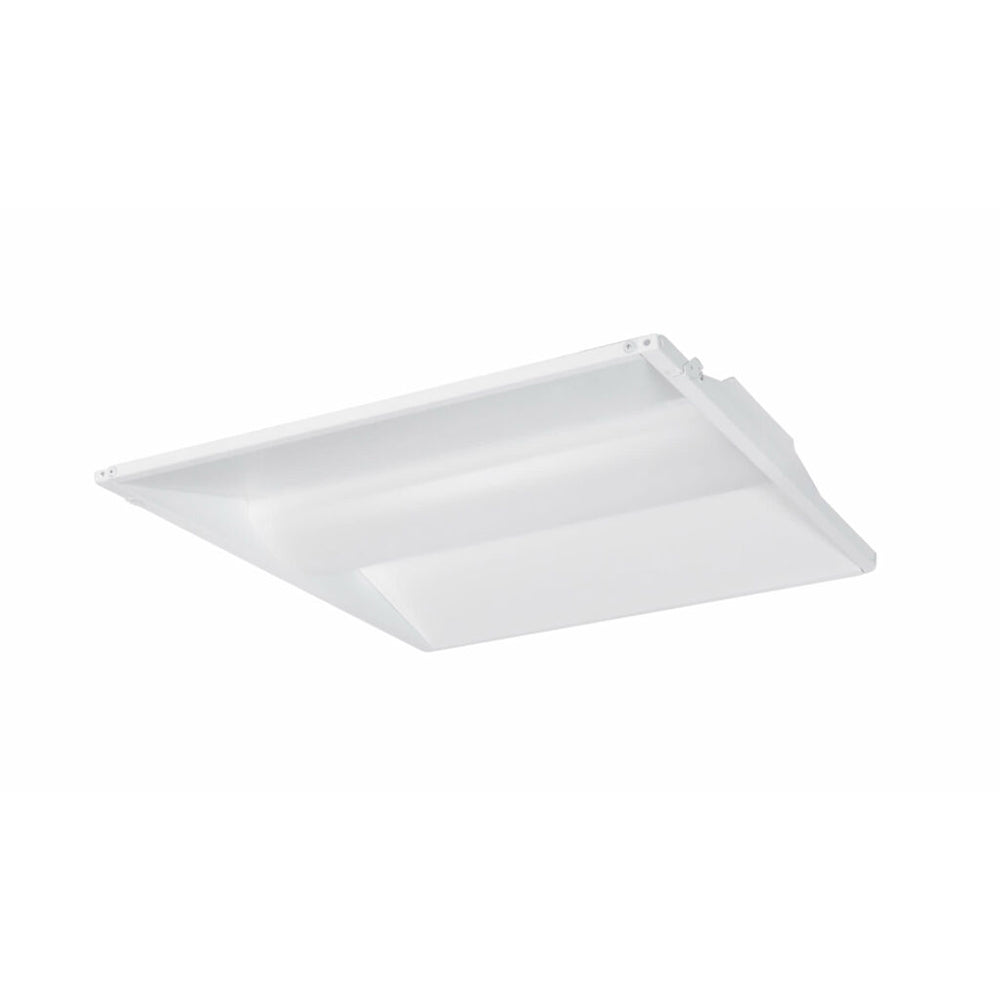

FSC Lighting L74-AOK-RFKW Series LED Troffer Kit
Features
- Applications: Ideal for use in offices, retail, schools, offices, hallways, multi-purpose rooms and hospitality areas.
- Construction: Housing made from cold rolled steel and is finished with a postproduction baked white powder coat. Frosted diffuser.
- Mounting: Recessed mount.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency
- Operating Temperature: Suitable for -20°C - 40°C Ambient
- Lumen Maintenance: L70 rating of 122,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 listed1 . RoHS Compliant.
| L7424-AOK-RFKW-S5-25W-3500K | L7424-AOK-RFKW-S5-25W-4000K | L7424-AOK-RFKW-S5-25W-5000K | L7424-AOK-RFKW-S5-30W-3500K | L7424-AOK-RFKW-S5-30W-4000K | L7424-AOK-RFKW-S5-30W-5000K |
| L7424-AOK-RFKW-S5-34W-3500K | L7424-AOK-RFKW-S5-34W-4000K | L7424-AOK-RFKW-S5-34W-5000K | L7422-AOK-RFKW-S5-25W-3500K | L7422-AOK-RFKW-S5-25W-4000K | L7422-AOK-RFKW-S5-25W-5000K |
| L7422-AOK-RFKW-S5-30W-3500K | L7422-AOK-RFKW-S5-30W-4000K | L7422-AOK-RFKW-S5-30W-5000K | L7422-AOK-RFKW-S5-34W-3500K | L7422-AOK-RFKW-S5-34W-4000K | L7422-AOK-RFKW-S5-34W-5000K |

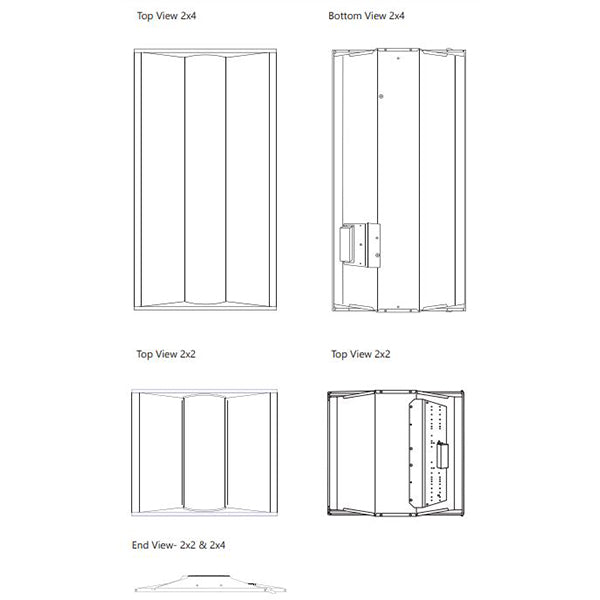

Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2x2 | 2.87" | 23.87" | 24.00" | 12lbs |
| 2x4 | 2.87" | 45.50" | 23.0" | 19lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
