Description

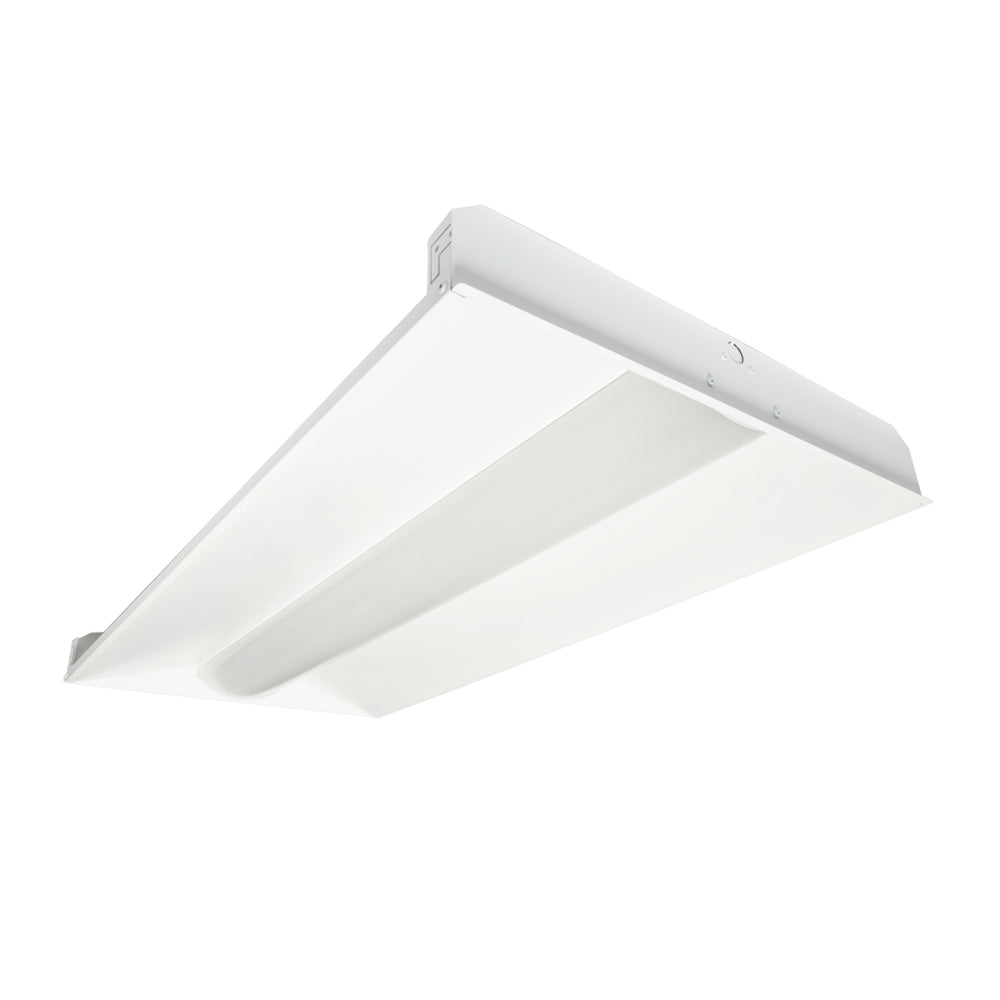

FSC Lighting L7400-AOK-SL Series Adjustable Output & Kelvin LED Slim Troffer Light
Features
- Applications: Ideal for use in offices, retail, schools, hallways, multi-purpose rooms and hospitality.
- Construction: Housing made from cold rolled steel and is finished with a postproduction baked white powder coat. Frosted PMMA diffuser.
- Mounting: Recessed mount. Surface mount option offered.
- Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency
- Operating Temperature: Suitable for -20°C - 50°C Ambient
- Lumen Maintenance: L70 rating of 100,000 hours
- Warranty: Five-year warranty. Terms and Conditions Apply.
- Certification: UL Damp Listed. Adheres to LM79, LM80 and TM21 industry standards.DesignLights Consortium® (DLC) 5.1 Premium qualified1 . RoHS Compliant.
| L7414-AOK-SL-20W-3500K | L7414-AOK-SL-20W-4000K | L7414-AOK-SL-20W-5000K | L7414-AOK-SL-25W-3500K | L7414-AOK-SL-25W-4000K | L7414-AOK-SL-25W-5000K |
| L7414-AOK-SL-30W-3500K | L7414-AOK-SL-30W-4000K | L7414-AOK-SL-30W-5000K | L7422-AOK-SL-20W-3500K | L7422-AOK-SL-20W-4000K | L7422-AOK-SL-20W-5000K |
| L7422-AOK-SL-25W-3500K | L7422-AOK-SL-25W-4000K | L7422-AOK-SL-25W-5000K | L7422-AOK-SL-30W-3500K | L7422-AOK-SL-30W-4000K | L7422-AOK-SL-30W-5000K |
| L7422-AOK-SL-35W-3500K | L7422-AOK-SL-35W-4000K | L7422-AOK-SL-35W-5000K | L7422-AOK-SL-40W-3500K | L7422-AOK-SL-40W-4000K | L7422-AOK-SL-40W-5000K |
| L7424-AOK-SL-25W-3500K | L7424-AOK-SL-25W-4000K | L7424-AOK-SL-25W-5000K | L7424-AOK-SL-30W-3500K | L7424-AOK-SL-30W-4000K | L7424-AOK-SL-30W-5000K |
| L7424-AOK-SL-35W-3500K | L7424-AOK-SL-35W-4000K | L7424-AOK-SL-35W-5000K | L7424-AOK-SL-34W-3500K | L7424-AOK-SL-34W-4000K | L7424-AOK-SL-34W-5000K |
| L7424-AOK-SL-38W-3500K | L7424-AOK-SL-38W-4000K | L7424-AOK-SL-38W-5000K | L7424-AOK-SL-45W-3500K | L7424-AOK-SL-45W-4000K | L7424-AOK-SL-45W-5000K |
Dimensions
| Version | Depth | Length | Width | Weight |
|---|---|---|---|---|
| 2x2 | 2.1" | 23.7" | 23.7" | 6.83lbs |
| 2x4 | 2.1" | 47.8" | 23.7" | 11.44lbs |
| 1x4 | 2.0" | 47.8" | 11.9" | 7.72lbs |
Notes
- Not all versions of this product may be DLC Premium qualified or DLC qualified.
- Lumens will change based on fixture selection. Consult with factory for additional options.
