FSC Lighting WF-AO Series Adjustable LED Full Cut-off Wall Pack
FSC Lighting WF-AO Series Adjustable LED Full Cut-off Wall Pack
Roll over image to zoom in Click on image to zoom
FSC Lighting WF-AO Series Adjustable LED Full Cut-off Wall PackFSC Lighting WF-AO Series Adjustable LED Full Cut-off Wall Pack

FSC Lighting WF-AO Series Adjustable LED Full Cut-off Wall Pack

FSC LightingSKU: WF-S-3L-AO-3000K-15W
Select Wattage: 15W
Select Color Temperature: 3000K
Price:
$0.00 USD

Description

FSC Lighting WF-AO Series Adjustable LED Full Cut-off Wall Pack

Features

  • Applications: Ideal for use in exterior commercial and industrial building perimeters.
  • Construction: Housing made from die-cast aluminum. Tempered glass lens.
  • Mounting: Wall Mount
  • Electrical: Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V dimming standard. 50/60HZ input frequency. 5KV Surge Protection.
  • Operating Temperature: Suitable for -40°C - 40°C Ambient
  • CRI: 70+
  • Lumen Maintenance: L70 rating of 54,000
  • Warranty: Five-year warranty. Terms and Conditions Apply.
  • Certification: UL Wet Listed. Adheres to LM79, LM80 and TM21 industry standards. DesignLights Consortium® (DLC) 5.1 Premium listed1 . IP65 Rated.
WF-S-3L-AO-3000K-15W WF-S-3L-AO-4000K-15W WF-S-3L-AO-5000K-15W WF-S-3L-AO-3000K-22W WF-S-3L-AO-4000K-22W WF-S-3L-AO-5000K-22W
WF-S-3L-AO-3000K-28W WF-S-3L-AO-4000K-28W WF-S-3L-AO-5000K-28W

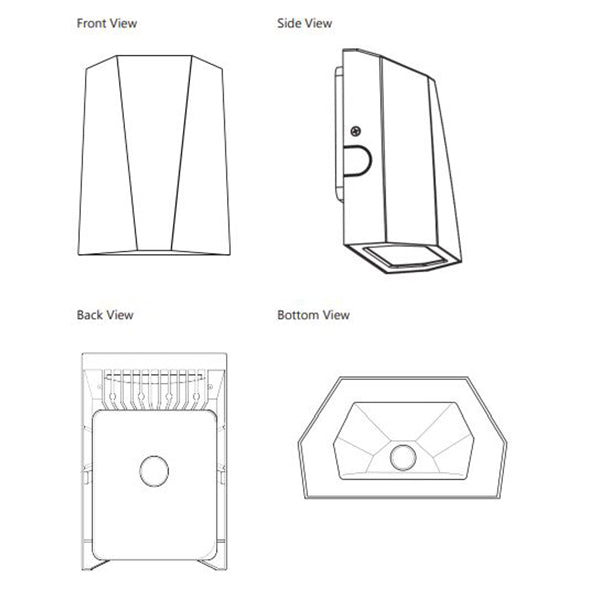

Dimensions

Version Depth Length Width Weight
Small 3.6" 7.63" 5.75" 4lbs

Notes

  • Not all versions of this product may be DLC Premium qualified or DLC qualified.

Click for Spec Sheet

Click for Installation Instructions
