Gardco 942L DG1 Faceplate Replacement Assembly (Min. Quantity 2)

Gardco LightingSKU: REPL.FACEPLATE ASSY 942L DG1 WH
No reviews

Select Type - Finish: Diffused Glass / Textured White
Price:
Sale price$283.46 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

Description

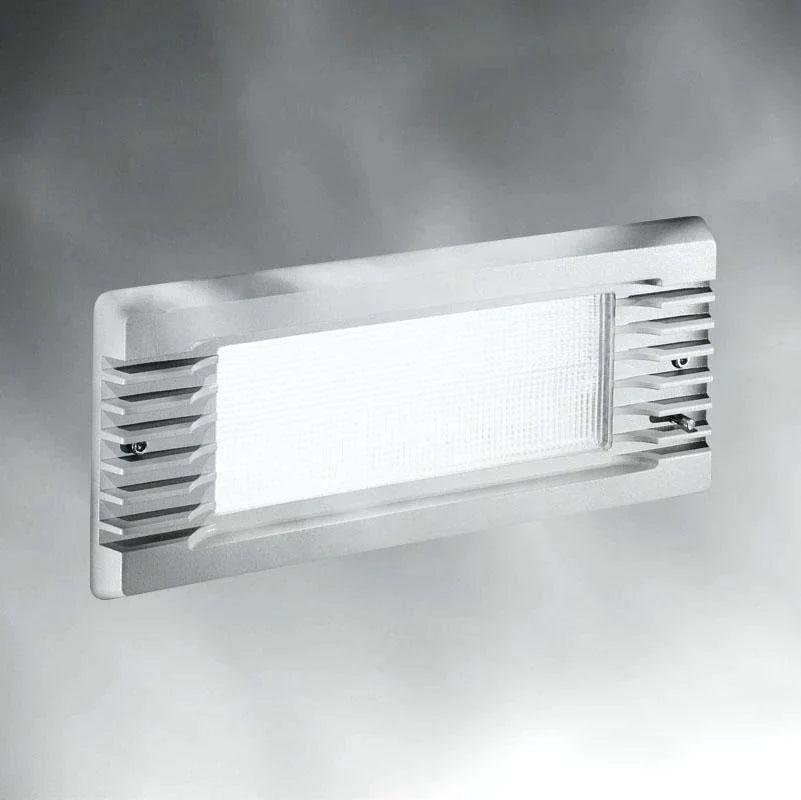

Gardco 942L DG1 Faceplate Replacement Assembly Only! (Min. Quantity 2)

Product Family Details

  • Source: LED
  • Watts: 21, 31
  • Voltage(s): 120, 277, UNIV
  • Lumens: 1000, 1100, 1500, 200, 300, 400, 500, 700, 800
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • Shape: Rectangular
  • Mounting type(s): Recessed

Features

  • Utilizes an advanced high output LED array
  • Sealed and gasket
  • TGIC polyester powdercoat finish
  • Available for installation in all types of wall construction

Benefits

  • Uses up to 50% less energy than HID and fluorescent alternatives
  • Provides added corrosion resistance
  • Low-glare illumination
  • Quick installation and maintenance
  • Eliminates potential for misapplication

Product Family Information

The Gardco 942L recessed aisle lights are architecturally styled luminaires precisely constructed of die cast aluminum, providing light with high performance, long life LED systems. Retrofit kits are also available, making it possible to update installations of classic 942 Gardco fluorescent and HID step lights to LED without the need to replace the back housing. A field adjustable junction box enhances design flexibility. Self-compensating silicone gasketing completely excludes moisture, insects and contaminants. A choice of three (3) architecturally designed faceplates allows for a variety of applications.

Catalog Number Lumens Input watts Distribution Type
942L-21L-NW-DG-BZ 21 800 942L-21L-NW-DG-BZ.IES
942L-21L-NW-DG-WH 21 1100 942L-DG-20LA-NW-WP.IES
942L-21L-NW-DG-WH 21 1000 942L-21L-NW-DG-WH.IES
942L-21L-NW-LV-BZ 21 1500 942L-21L-NW-LV-BZ.IES
942L-21L-NW-LV-WH 21 200 942L-21L-NW-LV-WH.IES
942L-21L-NW-RDG-BZ 21 300 942L-21L-NW-RDG-BZ.IES
942L-21L-NW-RDG-WH 21 200 942L-21L-NW-RDG-WH.IES
942L-31L-NW-DG-BZ 31 400 942L-31L-NW-DG-BZ.IES
942L-31L-NW-DG-WH 31 300 942L-31L-NW-DG-WH.IES
942L-31L-NW-LV-BZ 31 500 942L-31L-NW-LV-BZ.IES
942L-31L-NW-LV-WH 31 400 942L-31L-NW-LV-WH.IES
942L-31L-NW-RDG-BZ 31 700 942L-31L-NW-RDG-BZ.IES
