Description

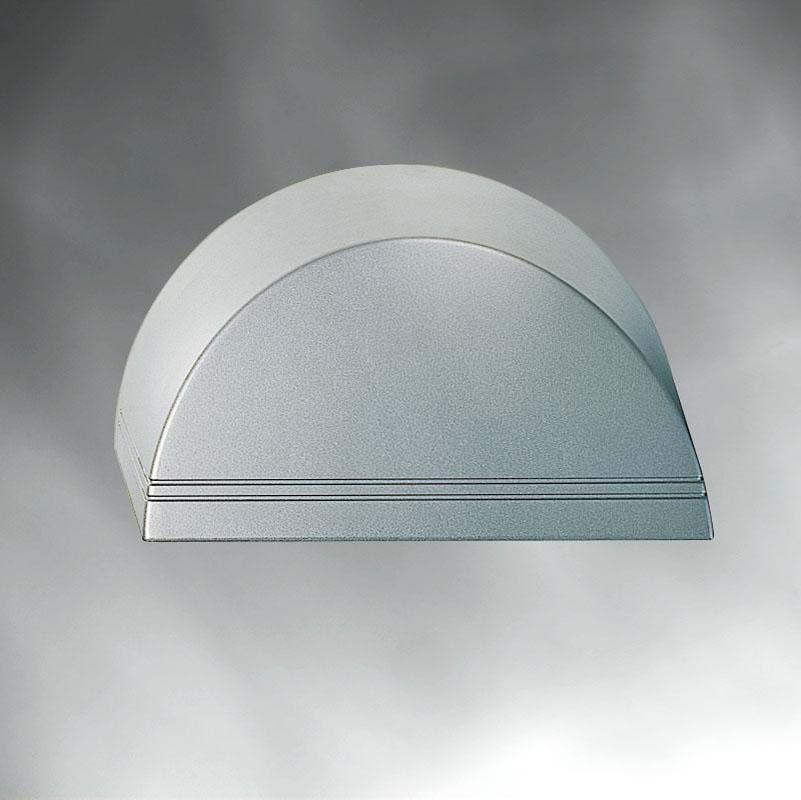

Gardco Lighting 102L LED Sconce
Product Family Details
- Source: LED
- Voltage(s): 120, 208, 240, 277, 347, 480
- Lumens: 2944.249972, 3789.0645342, 5050.2598143, 5242, 5697.8414048, 5743.8624315, 5744, 7241.7372777, 8941, 9797
- Input watts: 106.7, 27.8, 36.8, 52, 54.8, 64.6, 70.2
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 4000K
- Shape: Rectangular
- Distribution Type: Type II, Type III, Type IV
- Mounting type(s): Wall, Wall
Features
- Advanced Class 1 LED array system
- IP66 rated optics
- Die-cast ribbed back plate dissipates heat from electrical components
- Polyester powdercoat finish
- Meet zero uplight criteria
Benefits
- Uses up to 50% less energy than HID
- Uniform distribution free of hot spots, streaks or striations
- Maintains long LED life
- Classic Form
- Controls glare and light trespass
Product Family Information
Gardco 102 LED rounded wedge high performance sconce luminaires are designed to integrate naturally to wall surfaces. 102 LED luminaires are available with three (3) different distribution patterns, providing full cut-off performance (in the normal downlight position) and featuring LED arrays. Luminaires provide performance excellence and advanced Gardco LED thermal management technology. High performance Class 1 LED systems offer potential energy savings of 50 % or more compared to HID systems. 102 LED luminaires are also available with Automatic Profile Dimming, increasing savings by an additional 33%.
Products List
| Catalog Number | Lumens | Input watts | Distribution Type |
| 102L-16L-1000-NW-G1-2 | 54.8 | Type II | 102L-16L-1000-NW-G1-2.ies 102L-16L-1000-NW-G1-2.pdf |
| 102L-16L-1000-NW-G1-3 | 54.8 | Type III | 102L-16L-1000-NW-G1-3.ies 102L-16L-1000-NW-G1-3.pdf |
| 102L-16L-1000-NW-G1-4 | 54.8 | Type IV | 102L-16L-1000-NW-G1-4.ies 102L-16L-1000-NW-G1-4.pdf |
| 102L-16L-1200-NW-G1-2 | 64.6 | Type II | 102L-16L-1200-NW-G1-2.ies 102L-16L-1200-NW-G1-2.pdf |
| 102L-16L-1200-NW-G1-3 | 64.6 | Type III | 102L-16L-1200-NW-G1-3.ies 102L-16L-1200-NW-G1-3.pdf |
| 102L-16L-1200-NW-G1-4 | 64.6 | Type IV | 102L-16L-1200-NW-G1-4.ies 102L-16L-1200-NW-G1-4.pdf |
| 102L-16L-530-NW-G1-2 | 27.8 | Type II | 102L-16L-530-NW-G1-2.ies 102L-16L-530-NW-G1-2.pdf |
| 102L-16L-530-NW-G1-3 | 27.8 | Type III | 102L-16L-530-NW-G1-3.ies 102L-16L-530-NW-G1-3.pdf |
| 102L-16L-530-NW-G1-4 | 27.8 | Type IV | 102L-16L-530-NW-G1-4.ies 102L-16L-530-NW-G1-4.pdf |
| 102L-16L-700-NW-G1-2 | 36.8 | Type II | 102L-16L-700-NW-G1-2.ies 102L-16L-700-NW-G1-2.pdf |
| 102L-16L-700-NW-G1-3 | 36.8 | Type III | 102L-16L-700-NW-G1-3.ies 102L-16L-700-NW-G1-3.pdf |
| 102L-16L-700-NW-G1-4 | 36.8 | Type IV | 102L-16L-700-NW-G1-4.ies 102L-16L-700-NW-G1-4.pdf |
| 102L-16L-NW-G1-2-EBPC | - | Type II | 102L-16L-NW-G1-2-EBPC.ies |
| 102L-16L-NW-G1-3-EBPC | - | Type III | 102L-16L-NW-G1-3-EBPC.ies |
| 102L-16L-NW-G1-4-EBPC | - | Type IV | 102L-16L-NW-G1-4-EBPC.ies |
| 102L-32L-1000-NW-G1-2 | 106.7 | Type II | 102L-32L-1000-NW-G1-2.ies 102L-32L-1000-NW-G1-2.pdf |
| 102L-32L-1000-NW-G1-3 | 106.7 | Type III | 102L-32L-1000-NW-G1-3.ies 102L-32L-1000-NW-G1-3.pdf |
| 102L-32L-1000-NW-G1-4 | 106.7 | Type IV | 102L-32L-1000-NW-G1-4.ies 102L-32L-1000-NW-G1-4.pdf |
| 102L-32L-530-NW-G1-2 | 52 | Type II | 102L-32L-530-NW-G1-2.ies 102L-32L-530-NW-G1-2.pdf |
| 102L-32L-530-NW-G1-3 | 52 | Type III | 102L-32L-530-NW-G1-3.ies 102L-32L-530-NW-G1-3.pdf |
| 102L-32L-530-NW-G1-4 | 52 | Type IV | 102L-32L-530-NW-G1-4.ies 102L-32L-530-NW-G1-4.pdf |
| 102L-32L-700-NW-G1-2 | 70.2 | Type II | 102L-32L-700-NW-G1-2.ies 102L-32L-700-NW-G1-2.pdf |
| 102L-32L-700-NW-G1-3 | 70.2 | Type III | 102L-32L-700-NW-G1-3.ies 102L-32L-700-NW-G1-3.pdf |
| 102L-32L-700-NW-G1-4 | 70.2 | Type IV | 102L-32L-700-NW-G1-4.ies 102L-32L-700-NW-G1-4.pdf |
| 102L-32L-NW-G1-2-EBPC | - | Type II | 102L-32L-NW-G1-2-EBPC.ies |
