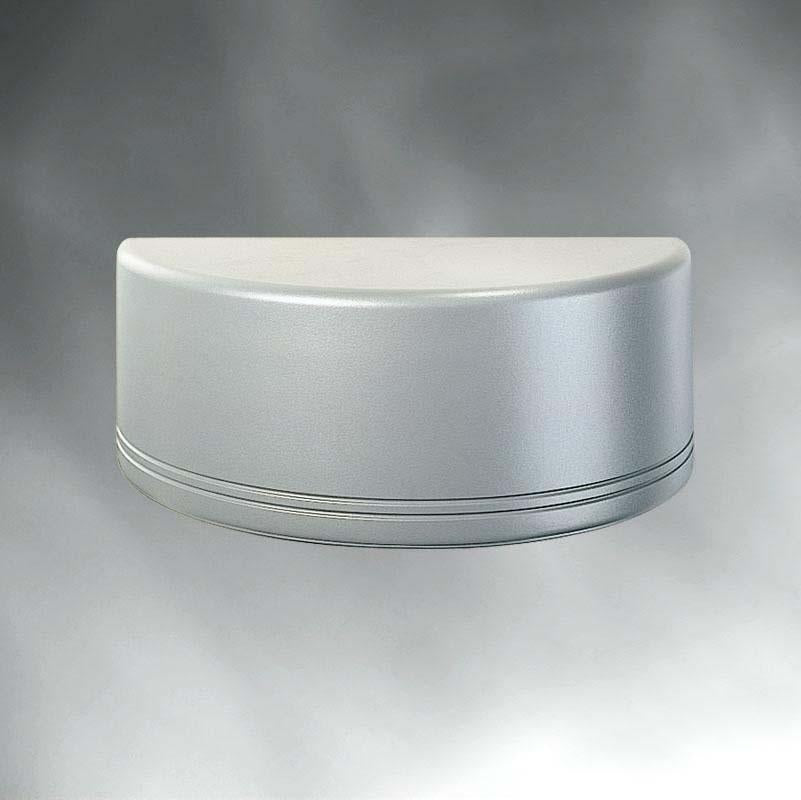

Gardco Lighting 104L LED Sconce - DISCONTINUED

Gardco LightingSKU: 104L-16L-530-NW-G1-3-120-PCB-BK

Product Type: 104L-16L-530-NW-G1-3-120-PCB-BK

Variant

Price:

$605.00 USD

Quantity:

Share this product

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Information For: Gardco Lighting 104L LED Sconce

Product Family Details

Source: LED
Voltage(s): 120, 208, 240, 277, 347, 480
Lumens: 2944.249972, 3789.0645342, 4712, 5050.2598143, 5242, 5697.8414048, 5743.8624315, 5744, 7241.7372777, 8941, 9140, 9797
Input watts: 106.7, 27.8, 36.8, 52, 54.8, 64.6, 70.2
Spec/Service Smart: Has Rev/BIM Files
Colour Temperature: 4000K
Shape: Round
Distribution Type: Type II, Type III, Type IV
Mounting type(s): Wall, Wall

Features

Advanced Class 1 LED array system
IP66 rated optics
Die-cast ribbed back plate dissipates heat from electrical components
Polyester powdercoat finish
Meet zero uplight criteria

Benefits

Uses up to 50% less energy than HID
Uniform distribution free of hot spots, streaks or striations
Maintains long LED life
Classic Form
Controls glare and light trespass

Product Family Information

Gardco 104 LED half cylinder high performance sconce luminaires are designed to integrate naturally to wall surfaces. 104 LED luminaires are available with three (3) different distribution patterns, providing full cut-off performance (in the normal downlight position) and featuring LED arrays. Luminaires provide performance excellence and advanced Gardco LED thermal management technology. High performance Class 1 LED systems offer potential energy savings of 50 % or more compared to HID systems. 104 LED luminaires are also available with Automatic Profile Dimming, increasing savings by an additional 33%.

Products List

Catalog Number	Lumens	Input watts	Distribution Type
104L-16L-1000-NW-G1-2	5050.2598143	54.8	Type II
104L-16L-1000-NW-G1-3	5050.2598143	54.8	Type III
104L-16L-1000-NW-G1-4	5050.2598143	54.8	Type IV
104L-16L-1200-NW-G1-2	5743.8624315	64.6	Type II
104L-16L-1200-NW-G1-3	5743.8624315	64.6	Type III
104L-16L-1200-NW-G1-4	5743.8624315	64.6	Type IV
104L-16L-530-NW-G1-2	2944.249972	27.8	Type II
104L-16L-530-NW-G1-3	2944.249972	27.8	Type III
104L-16L-530-NW-G1-4	2944.249972	27.8	Type IV
104L-16L-700-NW-G1-2	3789.0645342	36.8	Type II
104L-16L-700-NW-G1-3	3789.0645342	36.8	Type III
104L-16L-700-NW-G1-4	3789.0645342	36.8	Type IV
104L-16L-NW-G1-2-EBPC	5744	-	Type II
104L-16L-NW-G1-3-EBPC	5242	-	Type III
104L-16L-NW-G1-4-EBPC	4712	-	Type IV
104L-32L-1000-NW-G1-2	9797	106.7	Type II
104L-32L-1000-NW-G1-3	9797	106.7	Type III
104L-32L-1000-NW-G1-4	9797	106.7	Type IV
104L-32L-530-NW-G1-2	5697.8414048	52	Type II
104L-32L-530-NW-G1-3	5697.8414048	52	Type III
104L-32L-530-NW-G1-4	5697.8414048	52	Type IV
104L-32L-700-NW-G1-2	7241.7372777	70.2	Type II
104L-32L-700-NW-G1-3	7241.7372777	70.2	Type III
104L-32L-700-NW-G1-4	7241.7372777	70.2	Type IV
104L-32L-NW-G1-2-EBPC	9797	-	Type II
