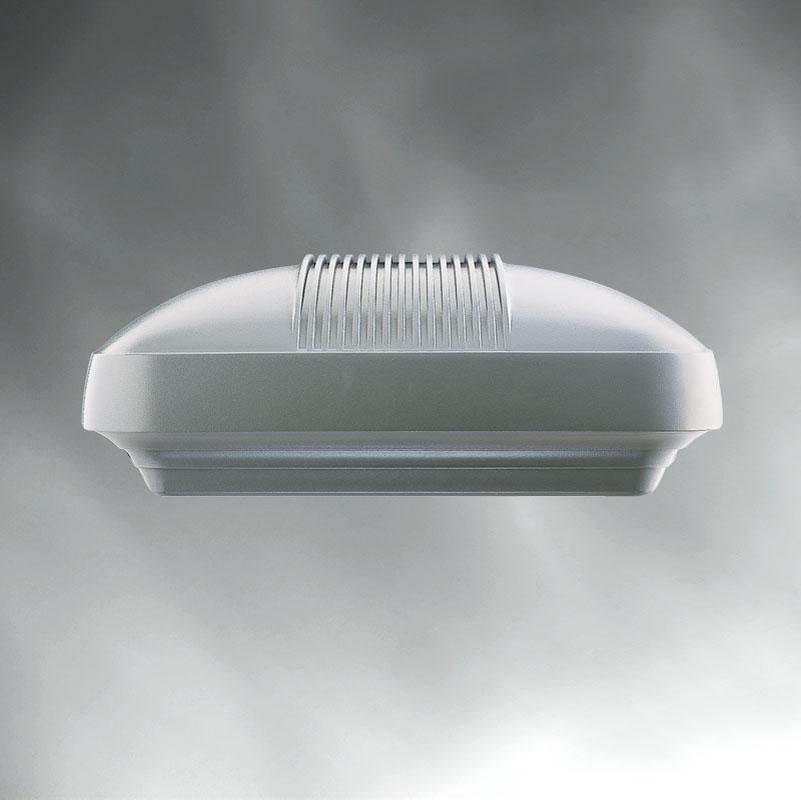

Gardco Lighting 107L LED Sconce
Roll over image to zoom in Click on image to zoom
Gardco Lighting 107L LED Sconce

Gardco Lighting 107L LED Sconce - DISCONTINUED

Gardco LightingSKU: 107L
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Gardco Lighting finishes

Description

Information For: Gardco Lighting 107L LED Sconce

Product Family Details

  • Source: LED
  • Voltage(s): 120, 208, 240, 277, 347, 480
  • Lumens: 2944.249972, 3789.0645342, 5050.2598143, 5242, 5359, 5697.8414048, 5743.8624315, 5744, 7241.7372777, 8941, 9140, 9797
  • Input watts: 106.7, 27.8, 36.8, 52, 54.8, 64.6, 70.2
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • Shape: Rectangular
  • Distribution Type: Type II, Type III, Type IV
  • Mounting type(s): Wall, Wall

Features

  • Advanced Class 1 LED array system
  • IP66 rated optics
  • Die-cast ribbed back plate dissipates heat from electrical components
  • Polyester powdercoat finish
  • Meet zero uplight criteria

Benefits

  • Uses up to 50% less energy than HID
  • Uniform distribution free of hot spots, streaks or striations
  • Maintains long LED life
  • Classic Form
  • Controls glare and light trespass

Product Family Information

Gardco 107 Gullwing LED high performance sconce luminaires are designed to integrate naturally to wall surfaces. 107 LED luminaires are available with three (3) different distribution patterns, providing full cut-off performance (in the normal downlight position) and featuring LED arrays. Luminaires provide performance excellence and advanced Gardco LED thermal management technology. High performance Class 1 LED systems offer potential energy savings of 50 % or more compared to HID systems. 107 LED luminaires are also available with Automatic Profile Dimming, increasing savings by an additional 33%.

Products List
Catalog Number Lumens Input watts Distribution Type
107L-16L-1000-NW-G1-2 54.8 Type II 107L-16L-1000-NW-G1-2.ies 107L-16L-1000-NW-G1-2.pdf
107L-16L-1000-NW-G1-3 54.8 Type III 107L-16L-1000-NW-G1-3.ies 107L-16L-1000-NW-G1-3.pdf
107L-16L-1000-NW-G1-4 54.8 Type IV 107L-16L-1000-NW-G1-4.ies 107L-16L-1000-NW-G1-4.pdf
107L-16L-1200-NW-G1-2 64.6 Type II 107L-16L-1200-NW-G1-2.ies 107L-16L-1200-NW-G1-2.pdf
107L-16L-1200-NW-G1-3 64.6 Type III 107L-16L-1200-NW-G1-3.ies 107L-16L-1200-NW-G1-3.pdf
107L-16L-1200-NW-G1-4 64.6 Type IV 107L-16L-1200-NW-G1-4.ies 107L-16L-1200-NW-G1-4.pdf
107L-16L-530-NW-G1-2 27.8 Type II 107L-16L-530-NW-G1-2.ies 107L-16L-530-NW-G1-2.pdf
107L-16L-530-NW-G1-3 27.8 Type III 107L-16L-530-NW-G1-3.ies 107L-16L-530-NW-G1-3.pdf
107L-16L-530-NW-G1-4 27.8 Type IV 107L-16L-530-NW-G1-4.ies 107L-16L-530-NW-G1-4.pdf
107L-16L-700-NW-G1-2 36.8 Type II 107L-16L-700-NW-G1-2.ies 107L-16L-700-NW-G1-2.pdf
107L-16L-700-NW-G1-3 36.8 Type III 107L-16L-700-NW-G1-3.ies 107L-16L-700-NW-G1-3.pdf
107L-16L-700-NW-G1-4 36.8 Type IV 107L-16L-700-NW-G1-4.ies 107L-16L-700-NW-G1-4.pdf
107L-16L-NW-G1-2-EBPC - Type II 107L-16L-NW-G1-2-EBPC.ies
107L-16L-NW-G1-3-EBPC - Type III 107L-16L-NW-G1-3-EBPC.ies
107L-16L-NW-G1-4-EBPC - Type IV 107L-16L-NW-G1-4-EBPC.ies
107L-32L-1000-NW-G1-2 106.7 Type II 107L-32L-1000-NW-G1-2.ies 107L-32L-1000-NW-G1-2.pdf
107L-32L-1000-NW-G1-3 106.7 Type III 107L-32L-1000-NW-G1-3.ies 107L-32L-1000-NW-G1-3.pdf
107L-32L-1000-NW-G1-4 106.7 Type IV 107L-32L-1000-NW-G1-4.ies 107L-32L-1000-NW-G1-4.pdf
107L-32L-530-NW-G1-2 52 Type II 107L-32L-530-NW-G1-2.ies 107L-32L-530-NW-G1-2.pdf
107L-32L-530-NW-G1-3 52 Type III 107L-32L-530-NW-G1-3.ies 107L-32L-530-NW-G1-3.pdf
107L-32L-530-NW-G1-4 52 Type IV 107L-32L-530-NW-G1-4.ies 107L-32L-530-NW-G1-4.pdf
107L-32L-700-NW-G1-2 70.2 Type II 107L-32L-700-NW-G1-2.ies 107L-32L-700-NW-G1-2.pdf
107L-32L-700-NW-G1-3 70.2 Type III 107L-32L-700-NW-G1-3.ies 107L-32L-700-NW-G1-3.pdf
107L-32L-700-NW-G1-4 70.2 Type IV 107L-32L-700-NW-G1-4.ies 107L-32L-700-NW-G1-4.pdf
107L-32L-NW-G1-2-EBPC - Type II 107L-32L-NW-G1-2-EBPC.ies
