Gardco Lighting 941L Step Light LED

Gardco LightingSKU: 941L-31L-WW-C-LV-UNV-BK
No reviews

Catalog #: Fixture - 941L-31L-WW-C-LV-UNV-BK
Sale price$582.00 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.


Information For: Gardco Lighting 941L Step Light LED

Product Family Details

  • Source: LED
  • Watts: 21, 31
  • Voltage(s): 120, 277, UNIV
  • Lumens: 100, 1300, 200, 300, 700, 900
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • Shape: Rectangular
  • Mounting type(s): Recessed


  • Utilizes an advanced high output LED array
  • Sealed and gasket
  • TGIC polyester powdercoat finish
  • Available for installation in all types of wall construction


  • Uses up to 50% less energy than HID and fluorescent alternatives
  • Provides added corrosion resistance
  • Low-glare illumination
  • Quick installation and maintenance
  • Eliminates potential for misapplication

Product Family Information

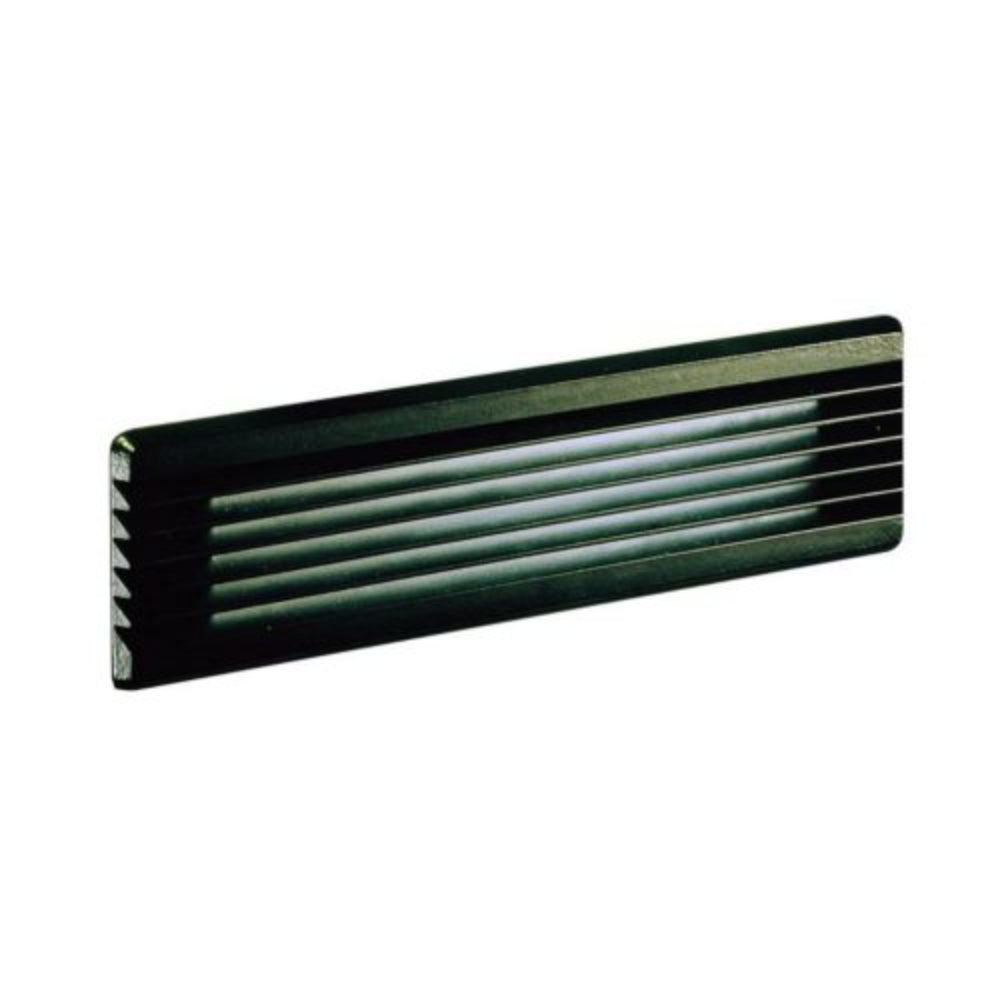

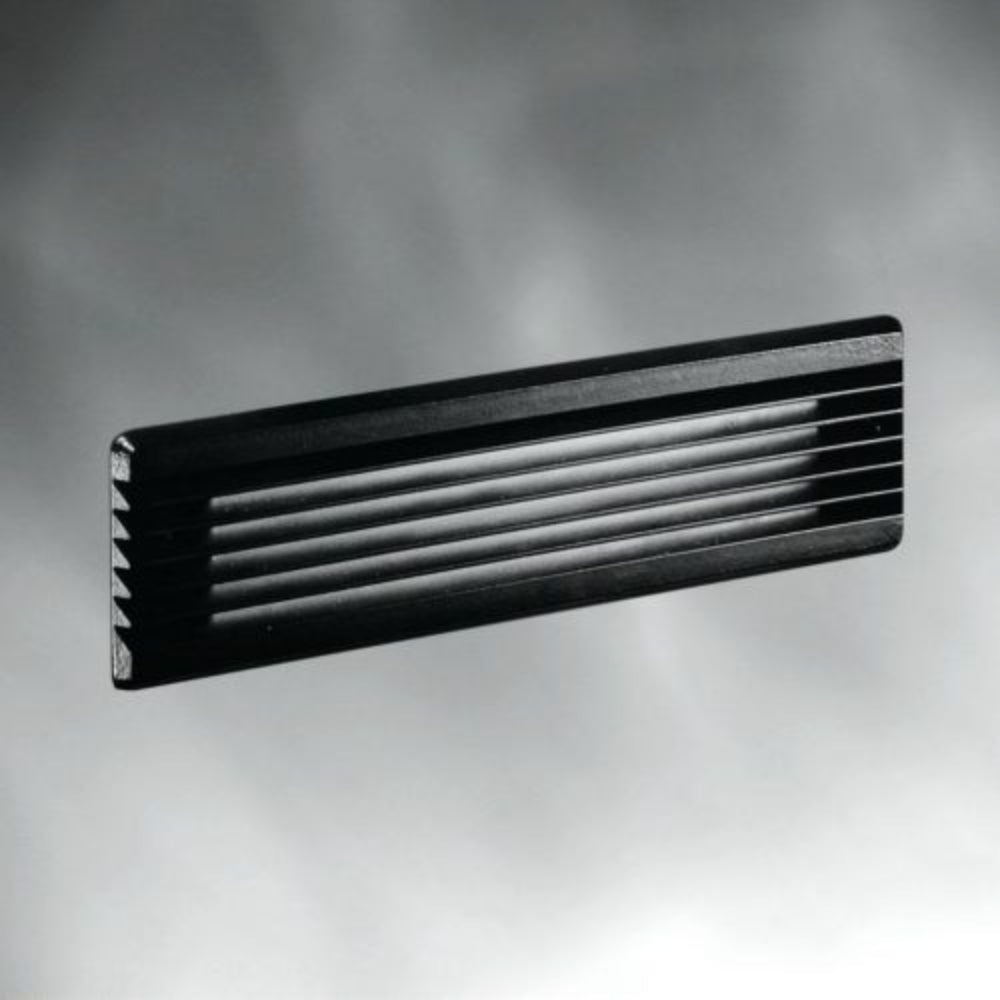

The Gardco 941L recessed steplights are architecturally styled luminaires precisely constructed of die cast aluminum, providing light with high performance, long life LED systems. Retrofit kits are also available, making it possible to update installations of classic 941 Gardco fluorescent and HID step lights to LED without the need to replace the back housing. A field adjustable junction box enhances design flexibility. Self-compensating silicone gasketing completely excludes moisture, insects and contaminants. A choice of two (2) architecturally designed faceplates allows for a variety of applications.

Catalog Number Lumens Input watts Distribution Type
941L-21L-NW-DG-BZ 21 700 941L-21L-NW-DG-BZ.IES
941L-21L-NW-DG-WH 21 900 941L-21L-NW-DG-WH.IES
941L-21L-NW-LV-BZ 21 900 941L-21L-NW-LV-BZ.IES
941L-21L-NW-LV-WH 21 1300 941L-21L-NW-LV-WH.IES
941L-31L-NW-DG-BZ 31 100 941L-31L-NW-DG-BZ.IES
941L-31L-NW-DG-WH 31 200 941L-31L-NW-DG-WH.IES
941L-31L-NW-LV-BZ 31 100 941L-31L-NW-LV-BZ.IES
941L-31L-NW-LV-WH 31 300 941L-31L-NW-LV-WH.IES
California Residents: Prop 65 regulations

Gardco Lighting finish chart
