Gardco Lighting 943L Step Light LED

Gardco LightingSKU: 943L
No reviews

Sale price$0.00 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.


Information For: Gardco Lighting 943L Step Light LED

Product Family Details

  • Source: LED
  • Watts: 21, 31
  • Voltage(s): 120, 277, UNIV
  • Lumens: 1000, 1400, 200, 300, 400, 500, 700
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • Shape: Rectangular
  • Mounting type(s): Recessed


  • Utilizes an advanced high output LED array
  • Sealed and gasket
  • TGIC polyester powdercoat finish
  • Available for installation in all types of wall construction


  • Uses up to 50% less energy than HID and fluorescent alternatives
  • Provides added corrosion resistance
  • Low-glare illumination
  • Quick installation and maintenance
  • Eliminates potential for misapplication

Product Family Information

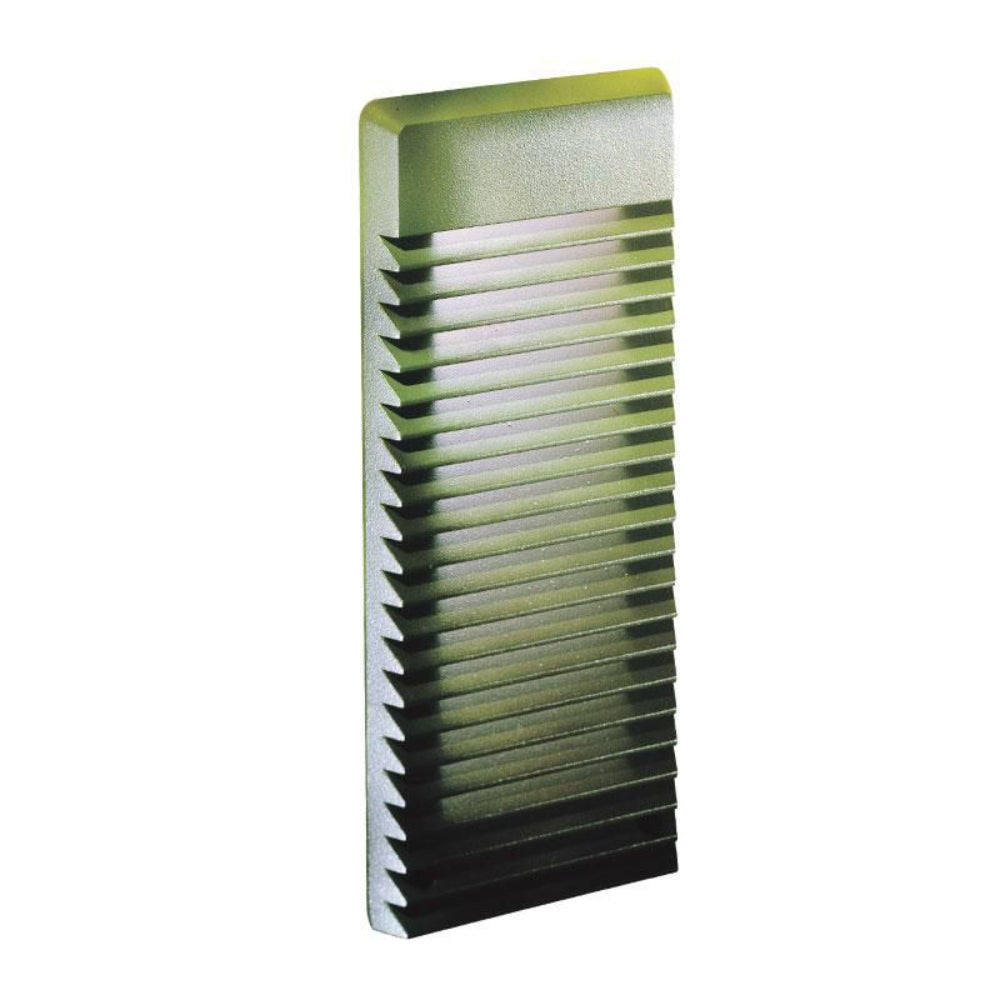

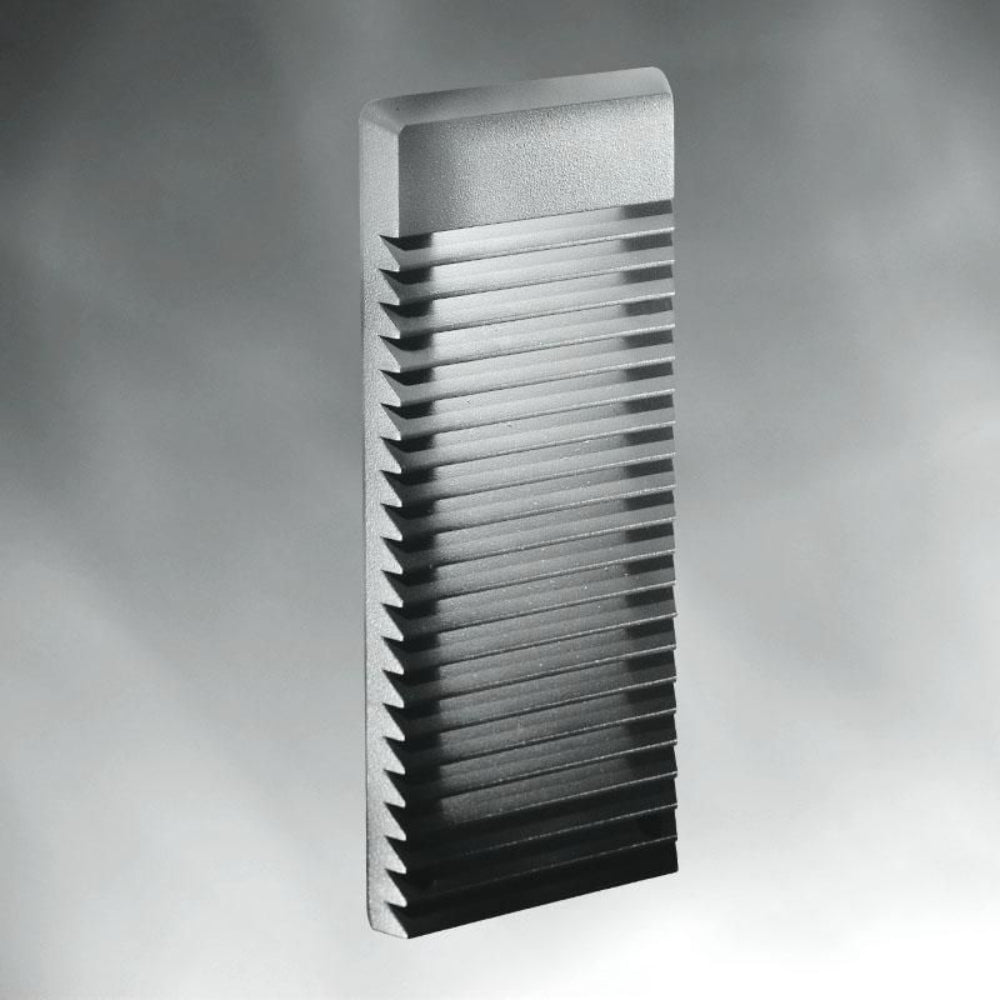

The Gardco 943L recessed aisle lights are architecturally styled luminaires precisely constructed of die cast aluminum, providing light with high performance, long life LED systems. Retrofit kits are also available, making it possible to update installations of classic 943 Gardco fluorescent and HID step lights to LED without the need to replace the back housing. A field adjustable junction box enhances design flexibility. Self-compensating silicone gasketing completely excludes moisture, insects and contaminants. A choice of three (3) architecturally designed faceplates allows for a variety of applications.

Catalog Number Lumens Input watts Distribution Type
943L-21L-NW-DG-BZ 21 700 943L-21L-NW-DG-BZ.IES
943L-21L-NW-DG-WH 21 1000 943L-21L-NW-DG-WH.IES
943L-21L-NW-LV-BZ 31 1400 943L-21L-NW-LV-BZ.IES
943L-21L-NW-LV-WH 21 1000 943L-21L-NW-LV-WH.IES
943L-21L-NW-RDG-BZ 21 200 943L-21L-NW-RDG-BZ.IES
943L-21L-NW-RDG-WH 21 300 943L-21L-NW-RDG-WH.IES
943L-31L-NW-DG-BZ 31 200 943L-31L-NW-DG-BZ.IES
943L-31L-NW-DG-WH 31 500 943L-31L-NW-DG-WH.IES
943L-31L-NW-LV-BZ 31 300 943L-31L-NW-LV-BZ.IES
943L-31L-NW-LV-WH 31 500 943L-31L-NW-LV-WH.IES
943L-31L-NW-RDG-BZ 31 400 943L-31L-NW-RDG-BZ.IES
943L-31L-NW-RDG-WH 31 700 943L-31L-NW-RDG-WH.IES
California Residents: Prop 65 regulations

Gardco Lighting finish chart
