Description

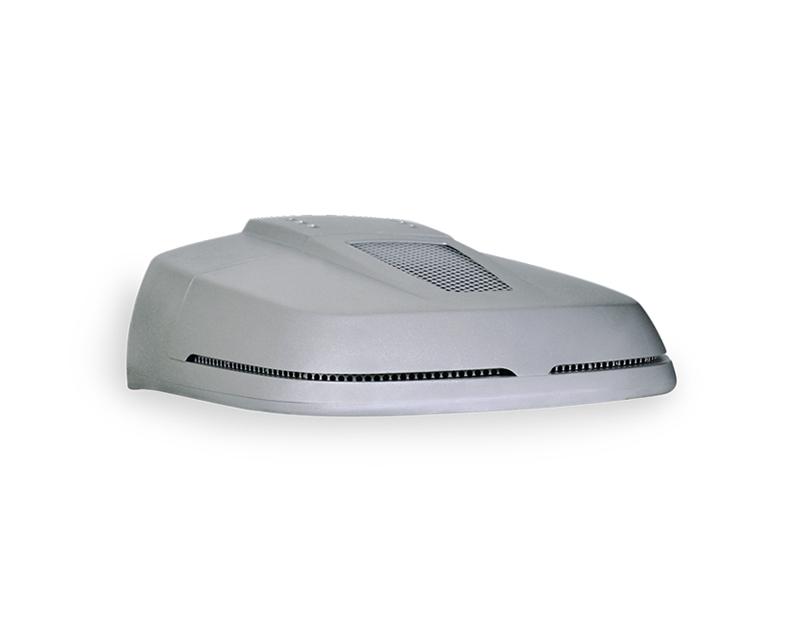

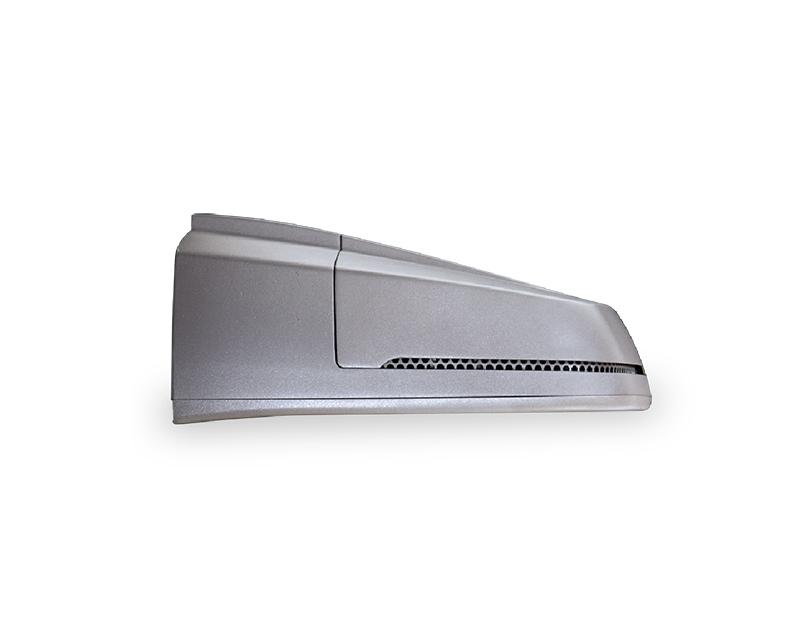

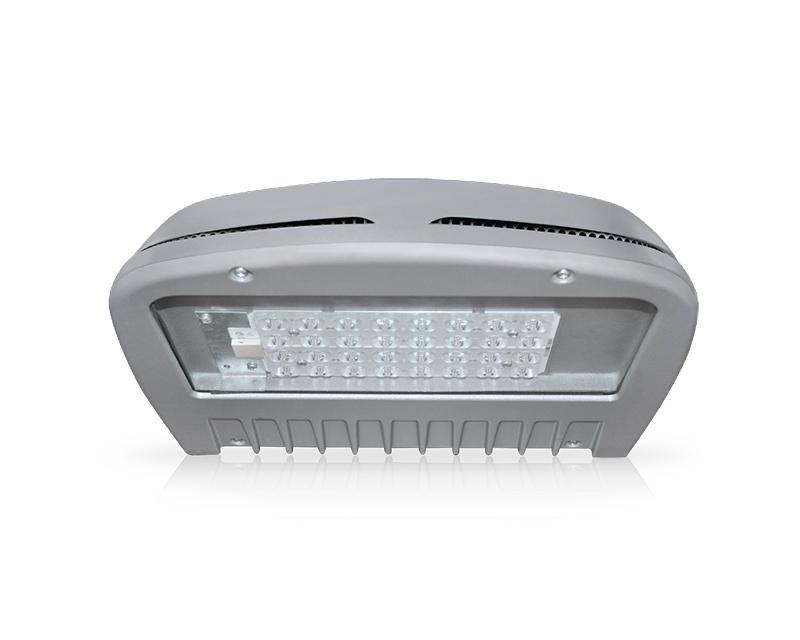

Information For: Gardco Lighting ASW AeroScape LED Sconce Small
Product Family Details
- Source: LED
- Voltage(s): 120, 208, 240, 277, 347, 480, UNIV
- Lumens: 10200, 3900, 4100, 5600, 5900, 9500, 9600
- Input watts: 114, 37, 57
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 4000K
- Distribution Type: Type II, Type III, Type IV
- Mounting type(s): Wall, Wall
Features
- Superior optical performance
- Use of quality materials
- Best in class thermal management
- Full range of control options available
- IP66 rated optics
Benefits
- Up to 50% energy savings over HID
- Optimal versatility and design flexibilty
- Quick and easy installation and maintenance
- Over 100,000 hour life
- Suitable for a variety of applications
Product Family Information
AeroScape wall and surface mount series features energy saving LEDs and a design that compliments modern architecture. ASW suits both building and perimeter zones as well as egress lighting zones. Three optical distributions are available to provide task and egress lighting around the perimeter of a building. ASW features LEDGINE, global platform, which ensures the optical system is fully upgradable as technology advances. Full range dimming and control options are available for additional energy savings. An advanced pass through convective thermal management system ensures optimum performance and long life.
Products List
| Catalog Number | Lumens | Input watts | Distribution Type |
| ASW-32L-1000-NW-G2-2 | 10200 | 114 | Type II |
| ASW-32L-1000-NW-G2-3 | 9600 | 114 | Type III |
| ASW-32L-1000-NW-G2-4 | 9500 | 114 | Type IV |
| ASW-32L-350-NW-G2-2 | 4100 | 37 | Type II |
| ASW-32L-350-NW-G2-3 | 3900 | 37 | Type III |
| ASW-32L-350-NW-G2-4 | 3900 | 37 | Type IV |
| ASW-32L-530-NW-G2-2 | 5900 | 57 | Type II |
| ASW-32L-530-NW-G2-3 | 5600 | 57 | Type III |
| ASW-32L-530-NW-G2-4 | 5600 | 57 | Type IV |
