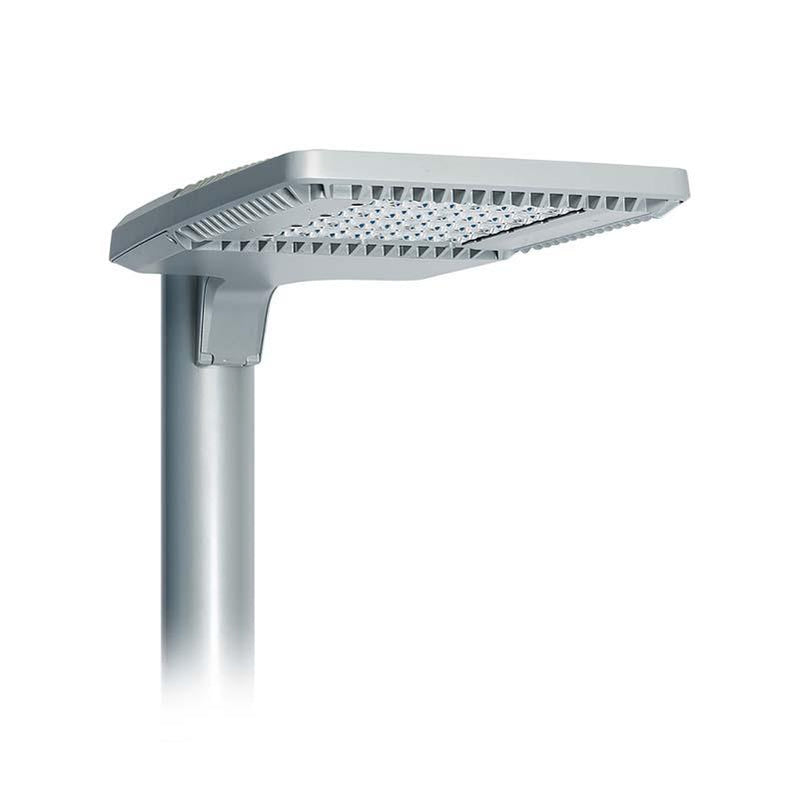

Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC

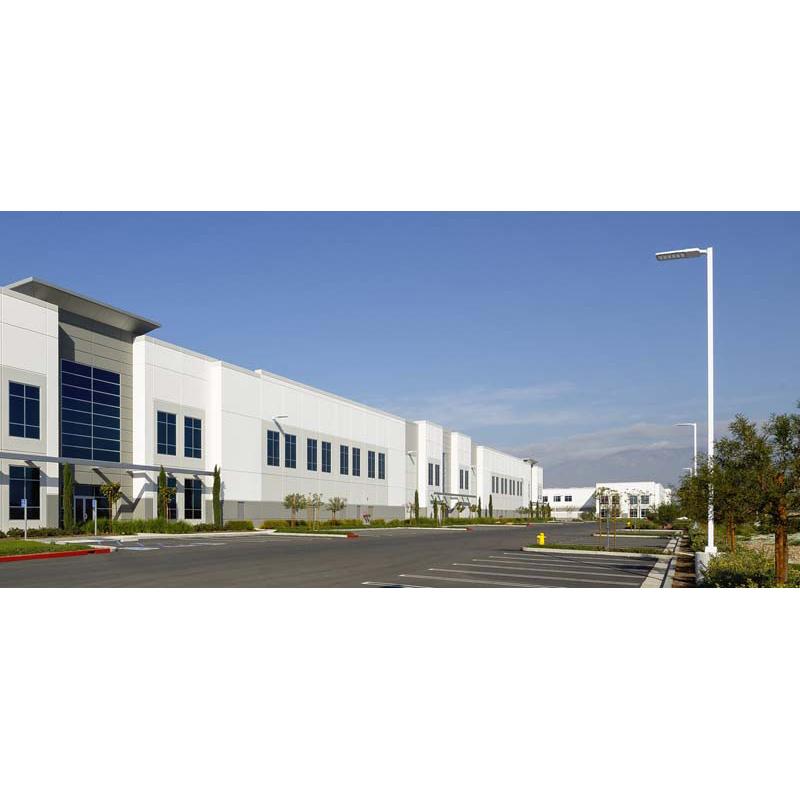

Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 1

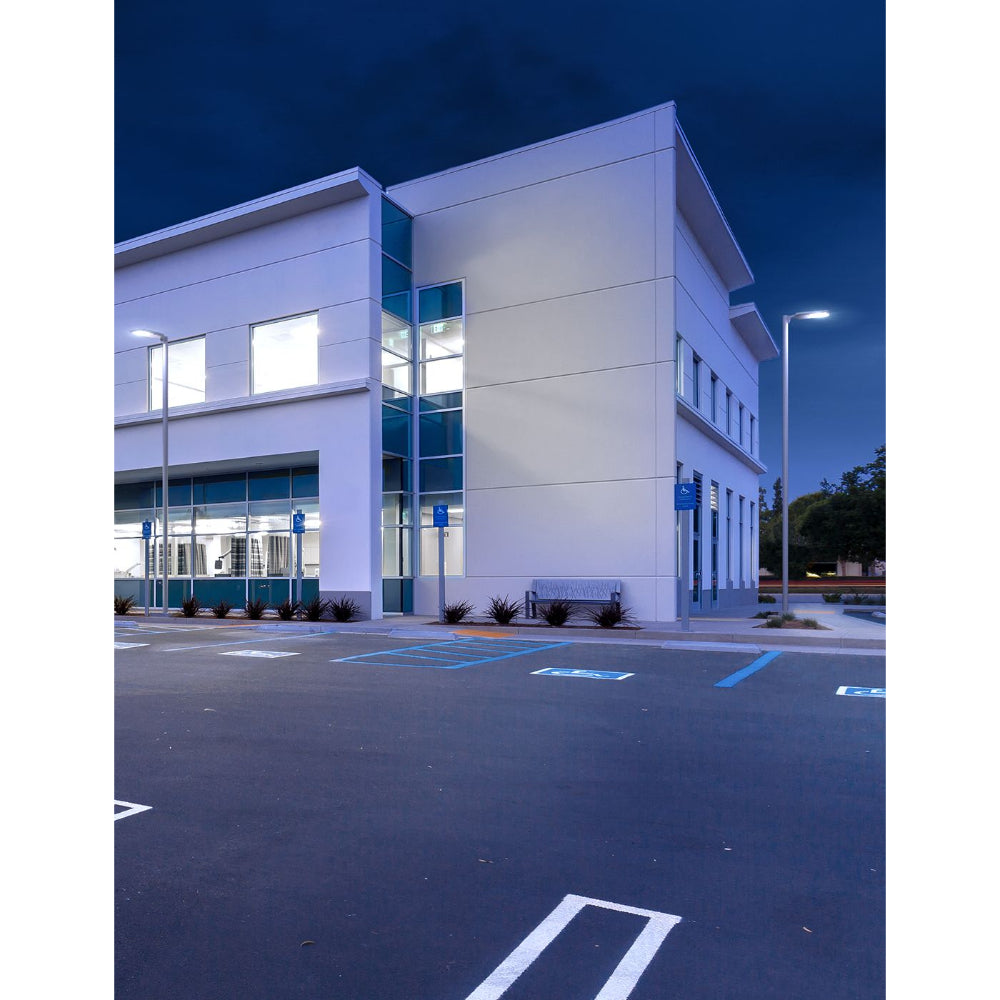

Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 2
Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 3

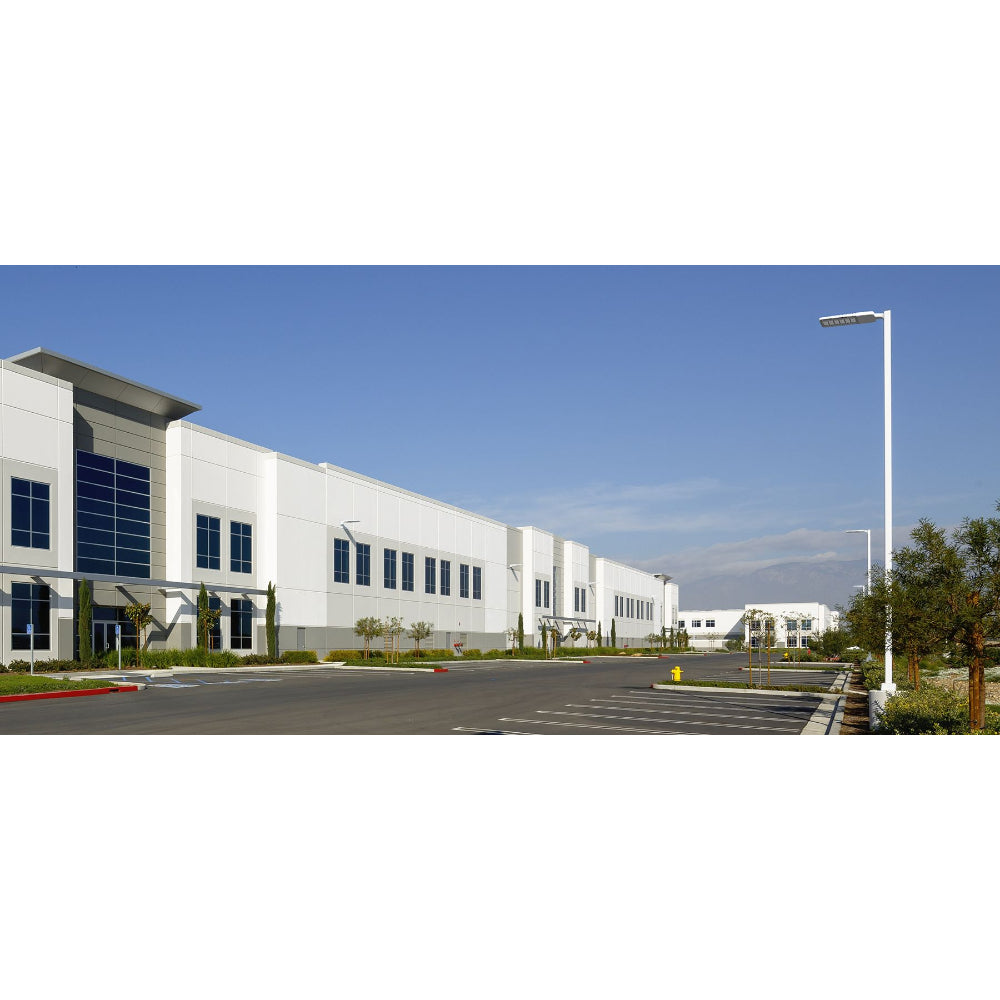

Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 4
Roll over image to zoom in Click on image to zoom
Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWCGardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 1Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 2Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 3Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC Additional Image - 4

Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC

Gardco LightingSKU: ECF-S-64L-600-AM-G2-AR-4-120-PCB-F1-BZ
Catalog #: ECF-S-64L-600-AM-G2-AR-4-120-PCB-F1-BZ
Price:
$1,495.80 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Gardco Lighting finishes

Description

Gardco Lighting ECF EcoForm LED G2 Wildlife Friendly ECF-S-FWC

Deliver more than expected

Product Family Information

The Gardco EcoForm Gen-2 luminaire features narrow spectrum amber LEDs combined with special shielding, making it a wildlife friendly lighting solution. EcoForm features an innovative retrofit arm kit, simplifying site conversions to LED by eliminating the need to drill additional holes in most existing poles. Integral control systems available for further energy savings.

Benefits

  • Wildlife Friendly lighting with narrow spectrum LEDs
  • Maintain consistent aesthetics throughout the site with two housing sizes
  • A variety of mounting options available for new installs and retrofit applications including retrofit mounting styles
  • Deliver optimum light levels without over- or under- lighting with true 400W and 1000W HID equivalency
  • Enhanced long-term energy savings and personalized functionality with a full range of outdoor lighting controls

Features

  • Narrow spectrum amber LEDs (>590nm)
  • Type 2, 3, 4, 5, 5 Wide housing size available with 2, 3, or 4 LED modules
  • Standard arm mount, retrofit arm mount, slipfitter mount and wall mount available
  • Stylized, one piece die-cast aluminum housing with built in heat sink
  • IP66 rated optical assembly and IP65 rated electrical housing

Applications

  • Education
  • Municipal Buildings
  • Parks and Plazas
  • Walkways
  • Office
  • Hospitality
Product Variations
Image Title SKU
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 2 ECF-S-32L-400-AM-G2-2
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 3 ECF-S-32L-400-AM-G2-3
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 4 ECF-S-32L-400-AM-G2-4
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 5 ECF-S-32L-400-AM-G2-5
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 5 wide ECF-S-32L-400-AM-G2-5W
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 2, with FWC shield ECF-S-32L-400-AM-G2-2-FWC
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 3, with FWC shield ECF-S-32L-400-AM-G2-3-FWC
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 4, with FWC shield ECF-S-32L-400-AM-G2-4-FWC
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 5, with FWC shield ECF-S-32L-400-AM-G2-5-FWC
EcoForm, Small, 32 LEDs, 400mA, Amber (596nm), Type 5 wide, with FWC shield ECF-S-32L-400-AM-G2-5W-FWC
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 2 ECF-S-32L-600-AM-G2-2
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 3 ECF-S-32L-600-AM-G2-3
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 4 ECF-S-32L-600-AM-G2-4
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 5 ECF-S-32L-600-AM-G2-5
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 5 wide ECF-S-32L-600-AM-G2-5W
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 2, with FWC shield ECF-S-32L-600-AM-G2-2-FWC
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 3, with FWC shield ECF-S-32L-600-AM-G2-3-FWC
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 4, with FWC shield ECF-S-32L-600-AM-G2-4-FWC
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 5, with FWC shield ECF-S-32L-600-AM-G2-5-FWC
EcoForm, Small, 32 LEDs, 600mA, Amber (596nm), Type 5 wide, with FWC shield ECF-S-32L-600-AM-G2-5W-FWC
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 2 ECF-S-48L-400-AM-G2-2
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 3 ECF-S-48L-400-AM-G2-3
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 4 ECF-S-48L-400-AM-G2-4
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 5 ECF-S-48L-400-AM-G2-5
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 5 wide ECF-S-48L-400-AM-G2-5W
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 2, with FWC shield ECF-S-48L-400-AM-G2-2-FWC
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 3, with FWC shield ECF-S-48L-400-AM-G2-3-FWC
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 4, with FWC shield ECF-S-48L-400-AM-G2-4-FWC
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 5, with FWC shield ECF-S-48L-400-AM-G2-5-FWC
EcoForm, Small, 48 LEDs, 400mA, Amber (596nm), Type 5 wide, with FWC shield ECF-S-48L-400-AM-G2-5W-FWC
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 2 ECF-S-48L-600-AM-G2-2
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 3 ECF-S-48L-600-AM-G2-3
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 4 ECF-S-48L-600-AM-G2-4
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 5 ECF-S-48L-600-AM-G2-5
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 5 wide ECF-S-48L-600-AM-G2-5W
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 2, with FWC shield ECF-S-48L-600-AM-G2-2-FWC
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 3, with FWC shield ECF-S-48L-600-AM-G2-3-FWC
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 4, with FWC shield ECF-S-48L-600-AM-G2-4-FWC
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 5, with FWC shield ECF-S-48L-600-AM-G2-5-FWC
EcoForm, Small, 48 LEDs, 600mA, Amber (596nm), Type 5 wide, with FWC shield ECF-S-48L-600-AM-G2-5W-FWC
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 2 ECF-S-64L-400-AM-G2-2
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 3 ECF-S-64L-400-AM-G2-3
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 4 ECF-S-64L-400-AM-G2-4
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 5 ECF-S-64L-400-AM-G2-5
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 5 wide ECF-S-64L-400-AM-G2-5W
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 2, with FWC shield ECF-S-64L-400-AM-G2-2-FWC
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 3, with FWC shield ECF-S-64L-400-AM-G2-3-FWC
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 4, with FWC shield ECF-S-64L-400-AM-G2-4-FWC
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 5, with FWC shield ECF-S-64L-400-AM-G2-5-FWC
EcoForm, Small, 64 LEDs, 400mA, Amber (596nm), Type 5 wide, with FWC shield ECF-S-64L-400-AM-G2-5W-FWC
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 2 ECF-S-64L-600-AM-G2-2
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 3 ECF-S-64L-600-AM-G2-3
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 4 ECF-S-64L-600-AM-G2-4
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 5 ECF-S-64L-600-AM-G2-5
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 5 wide ECF-S-64L-600-AM-G2-5W
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 2, with FWC shield ECF-S-64L-600-AM-G2-2-FWC
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 3, with FWC shield ECF-S-64L-600-AM-G2-3-FWC
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 4, with FWC shield ECF-S-64L-600-AM-G2-4-FWC
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 5, with FWC shield ECF-S-64L-600-AM-G2-5-FWC
EcoForm, Small, 64 LEDs, 600mA, Amber (596nm), Type 5 wide, with FWC shield ECF-S-64L-600-AM-G2-5W-FWC
Product Files

Click for Gardco Philips-EcoForm LED G2 Wildlife Friendly ECF-S Spec Sheet (FWC)

Click for Gardco EcoForm Bird Deterrent - Installation Sheets

Click for Gardco EcoForm Retrofit Arm Mount Installation sheets

Click for Gardco EcoForm Arm Mount - Installation sheet

Click for Gardco Pole Top Fitters Installation Sheet

Click for Gardco EcoForm Wall Surface Mount - Installation Sheets
