Gardco Lighting Form Ten Round Area Comfort CA/MA17L - DISCONTINUED
Gardco Lighting Form Ten Round Area Comfort CA/MA17L
Roll over image to zoom in Click on image to zoom
Gardco Lighting Form Ten Round Area Comfort CA/MA17L - DISCONTINUEDGardco Lighting Form Ten Round Area Comfort CA/MA17L

Gardco Lighting Form Ten Round Area Comfort CA/MA17L - DISCONTINUED

Gardco LightingSKU: GARDCO-CA17L
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Description

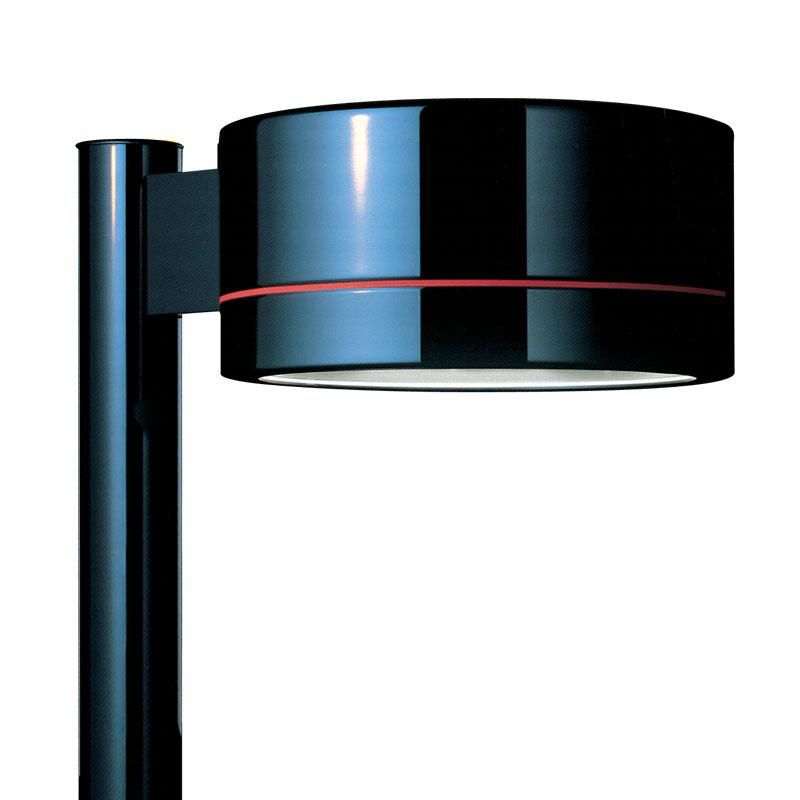

Gardco Lighting Form Ten Round Area Comfort CA/MA17L

Gardco Form 10 LED round arm mount luminaires are cutoff area luminaires featuring Comfort optics are designed to enhance visual comfort by reducing glare. Type 1, 2, 3, and 5 optical distributions.

Benefits

  • Comfort optics area reduce glare to enhance visual comfort.
  • Both comfort optics and precision optics available, suitable for a range of mounting heights and lumen output.

Features

  • Comfort optics offer low glare for increased visual comfort
  • Type 2, 3, and 5 optical distributions

Applications

  • Parks and Plazas
  • Site Lighting
  • Area Lighting

Product List

Compare Product Name Compare Product Sku Wattage (W): Lumens (lm): CCT (K):
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Neutral White, Type 1 CA[MA]17L-196L-450-NW-G3-1 21 2528 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Neutral White, Type 1 CA[MA]17L-196L-650-NW-G3-1 30 3643 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Neutral White, Type 1 CA[MA]17L-196L-1150-NW-G3-1 51 6228 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Neutral White, Typ… CA[MA]17L-196L-1675-NW-G3-1 74 8691 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Neutral White, Typ… CA[MA]17L-196L-2100-NW-G3-1 93 10400 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Neutral White, Type… CA[MA]17L-196L-450-NW-G3-2 21 2174 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Neutral White, Type… CA[MA]17L-196L-650-NW-G3-2 30 3132 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Neutral White, Typ… CA[MA]17L-196L-1150-NW-G3-2 51 5354 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Neutral White, Typ… CA[MA]17L-196L-1675-NW-G3-2 74 7472 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Neutral White, Typ… CA[MA]17L-196L-2100-NW-G3-2 93 8942 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Neutral White, Type… CA[MA]17L-196L-450-NW-G3-3 21 2427 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Neutral White, Type… CA[MA]17L-196L-650-NW-G3-3 30 3498 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Neutral White, Typ… CA[MA]17L-196L-1150-NW-G3-3 51 5979 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Neutral White, Typ… CA[MA]17L-196L-1675-NW-G3-3 74 8345 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Neutral White, Typ… CA[MA]17L-196L-2100-NW-G3-3 93 9985 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Neutral White, Type… CA[MA]17L-196L-450-NW-G3-5 21 2361 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Neutral White, Type… CA[MA]17L-196L-650-NW-G3-5 30 3402 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Neutral White, Typ… CA[MA]17L-196L-1150-NW-G3-5 51 5815 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Neutral White, Typ… CA[MA]17L-196L-1675-NW-G3-5 74 8116 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Neutral White, Typ… CA[MA]17L-196L-2100-NW-G3-5 93 9712 4000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Warm White, Type 1 CA[MA]17L-196L-450-WW-G3-1 21 2431 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Warm White, Type 1 CA[MA]17L-196L-650-WW-G3-1 30 3503 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Warm White, Type 1 CA[MA]17L-196L-1150-WW-G3-1 51 5988 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Warm White, Type 1 CA[MA]17L-196L-1675-WW-G3-1 74 8357 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Warm White, Type 1 CA[MA]17L-196L-2100-WW-G3-1 93 10000 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Warm White, Type 2 CA[MA]17L-196L-450-WW-G3-2 21 2090 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Warm White, Type 2 CA[MA]17L-196L-650-WW-G3-2 30 3012 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Warm White, Type 2 CA[MA]17L-196L-1150-WW-G3-2 51 5148 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Warm White, Type 2 CA[MA]17L-196L-1675-WW-G3-2 74 7185 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Warm White, Type 2 CA[MA]17L-196L-2100-WW-G3-2 93 8598 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Warm White, Type 3 CA[MA]17L-196L-450-WW-G3-3 21 2334 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Warm White, Type 3 CA[MA]17L-196L-650-WW-G3-3 30 3363 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Warm White, Type 3 CA[MA]17L-196L-1150-WW-G3-3 51 5749 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Warm White, Type 3 CA[MA]17L-196L-1675-WW-G3-3 74 8024 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Warm White, Type 3 CA[MA]17L-196L-2100-WW-G3-3 93 9601 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Warm White, Type 5 CA[MA]17L-196L-450-WW-G3-5 21 2270 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Warm White, Type 5 CA[MA]17L-196L-650-WW-G3-5 30 3271 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Warm White, Type 5 CA[MA]17L-196L-1150-WW-G3-5 51 5591 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Warm White, Type 5 CA[MA]17L-196L-1675-WW-G3-5 74 7804 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Warm White, Type 5 CA[MA]17L-196L-2100-WW-G3-5 93 9338 3000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Cool White, Type 1 CA[MA]17L-196L-450-CW-G3-1 21 2654 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Cool White, Type 1 CA[MA]17L-196L-650-CW-G3-1 30 3825 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Cool White, Type 1 CA[MA]17L-196L-1150-CW-G3-1 51 6539 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Cool White, Type 1 CA[MA]17L-196L-1675-CW-G3-1 74 9126 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Cool White, Type 1 CA[MA]17L-196L-2100-CW-G3-1 93 10920 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Cool White, Type 2 CA[MA]17L-196L-450-CW-G3-2 21 2282 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Cool White, Type 2 CA[MA]17L-196L-650-CW-G3-2 30 3289 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Cool White, Type 2 CA[MA]17L-196L-1150-CW-G3-2 51 5621 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Cool White, Type 2 CA[MA]17L-196L-1675-CW-G3-2 74 7846 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Cool White, Type 2 CA[MA]17L-196L-2100-CW-G3-2 93 9389 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Cool White, Type 3 CA[MA]17L-196L-450-CW-G3-3 21 2549 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Cool White, Type 3 CA[MA]17L-196L-650-CW-G3-3 30 3673 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Cool White, Type 3 CA[MA]17L-196L-1150-CW-G3-3 51 6278 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Cool White, Type 3 CA[MA]17L-196L-1675-CW-G3-3 74 8762 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Cool White, Type 3 CA[MA]17L-196L-2100-CW-G3-3 93 10485 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 450mA (22W), Cool White, Type 5 CA[MA]17L-196L-450-CW-G3-5 21 2479 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 650mA (30W), Cool White, Type 5 CA[MA]17L-196L-650-CW-G3-5 30 3572 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1150mA (52W), Cool White, Type 5 CA[MA]17L-196L-1150-CW-G3-5 51 6105 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 1675mA (75W), Cool White, Type 5 CA[MA]17L-196L-1675-CW-G3-5 74 8522 5000
Form Ten, Arm Mount, 17" Round Housing, Comfort Optics, 196 LEDs, 2100mA (96W), Cool White, Type 5 CA[MA]17L-196L-2100-CW-G3-5 93 10197 5000
Product Files

Click for Form_10_CA-MA17L_LED_Comfort_Optics_0422-CST.pdf

Click for Form Ten Gen3 Installation Sheet
