Description
- Description
- Products List
- Product Files
- Gardco Finishes
Product Family Details
- Source: LED
- Voltage(s): 120, 208, 240, 277, 347, 480, UNIV
- Lumens: 10020, 10246, 10617, 10630, 11850, 12118, 12556, 12572, 2260, 2732, 2794, 2895, 2898, 3651, 4413, 4513, 4676, 4682, 4834, 5843, 5975, 6191, 6199, 6532, 7895, 8073, 8290, 8365, 8376, 9804
- Input watts: 107, 25, 36, 57, 64, 85
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 4000K
- CRI: 70
- Shape: Square
- Distribution Type: Symmetric, Type I, Type III, Type V
- Mounting type(s): Surface
Features
- Modular design
- Available with various levels of control options
- Driver housing and optical arrays are IP66 rated
- Easy-access driver door
- Offers a complete selection of optical systems
Benefits
- Ability to increase light levels without adding luminaires
- Up to 50% more energy savings with controls
- Provides uniform illumination free from hot spots and striations
- Prolongs LED system life
Product Family Information

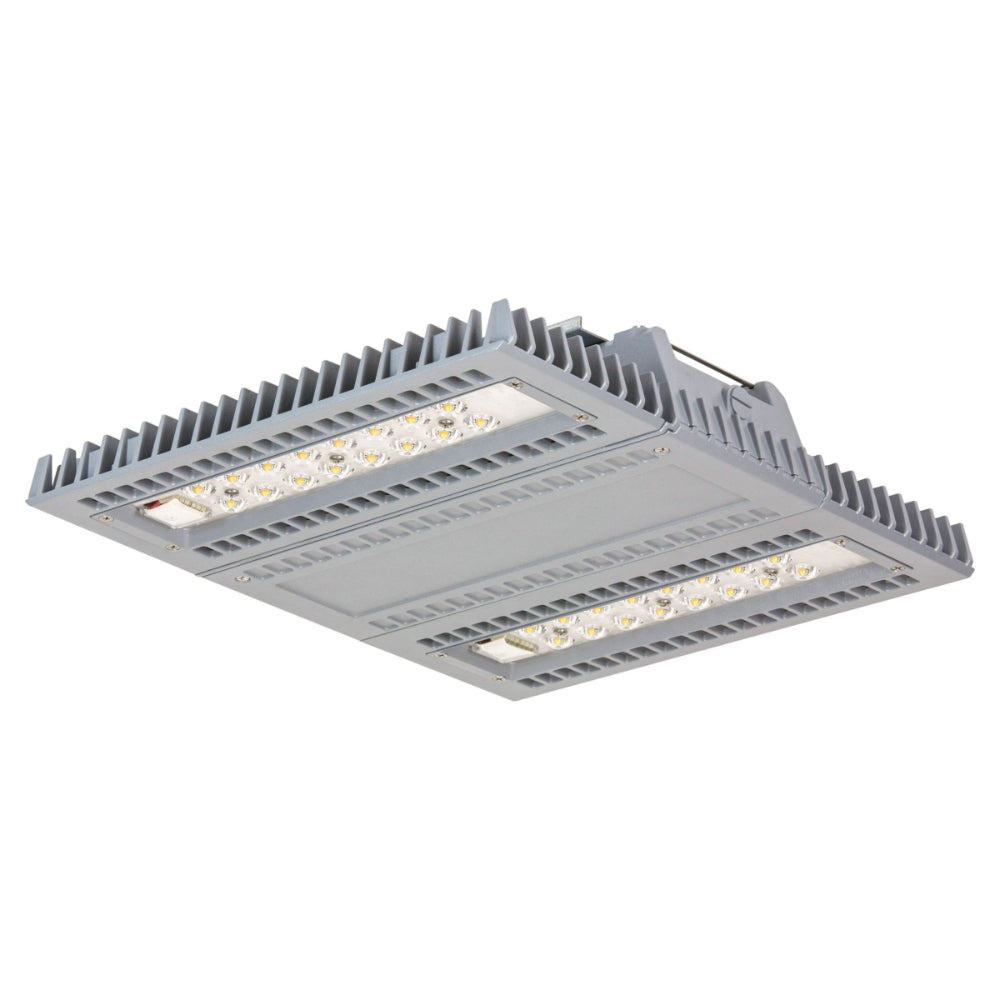

The Gardco G3 parking garage luminaire combines excellent performance with value, providing one of the most energy efficient lighting solutions for the energy and budget conscious. A complete selection of optical systems are available, including a concentrated downlight for use at entrances or at higher mounting heights. G3 luminaires are available with dimming, as well as motion response technology to expand potential energy savings. The G3 is also available with the LimeLight Wireless Lighting Control System.
| Catalog Number | Lumens | Input watts | Distribution Type |
| G3-1R-16L-1000-NW-G2 | 5975 | 57 | Type I |
| G3-1R-16L-400-NW-G2 | 2794 | 25 | Type I |
| G3-1R-16L-700-NW-G2 | 4513 | 36 | Type I |
| G3-1R-32L-1000-NW-G2 | 12118 | 107 | Type I |
| G3-1R-32L-600-NW-G2 | 8073 | 64 | Type I |
| G3-1R-32L-800-NW-G2 | 10246 | 85 | Type I |
| G3-3-16L-1000-NW-G2 | 6199 | 57 | Type III |
| G3-3-16L-400-NW-G2 | 2898 | 25 | Type III |
| G3-3-16L-700-NW-G2 | 4682 | 36 | Type III |
| G3-3-32L-1000-NW-G2 | 12572 | 107 | Type III |
| G3-3-32L-600-NW-G2 | 8376 | 64 | Type III |
| G3-3-32L-800-NW-G2 | 10630 | 85 | Type III |
| G3-5-16L-1000-NW-G2 | 5843 | 57 | Type V |
| G3-5-16L-400-NW-G2 | 2732 | 25 | Type V |
| G3-5-16L-700-NW-G2 | 4413 | 36 | Type V |
| G3-5-32L-1000-NW-G2 | 11850 | 107 | Type V |
| G3-5-32L-600-NW-G2 | 7895 | 64 | Type V |
| G3-5-32L-800-NW-G2 | 10020 | 85 | Type V |
| G3-5DL-16L-1000-NW-G2 | 4834 | 57 | Type V |
| G3-5DL-16L-400-NW-G2 | 2260 | 25 | Type V |
| G3-5DL-16L-700-NW-G2 | 3651 | 36 | Type V |
| G3-5DL-32L-1000-NW-G2 | 9804 | 107 | Type V |
| G3-5DL-32L-600-NW-G2 | 6532 | 64 | Type V |
| G3-5DL-32L-800-NW-G2 | 8290 | 85 | Type V |
| G3-CD-16L-1000-NW-G2 | 6191 | 57 | Symmetric |
