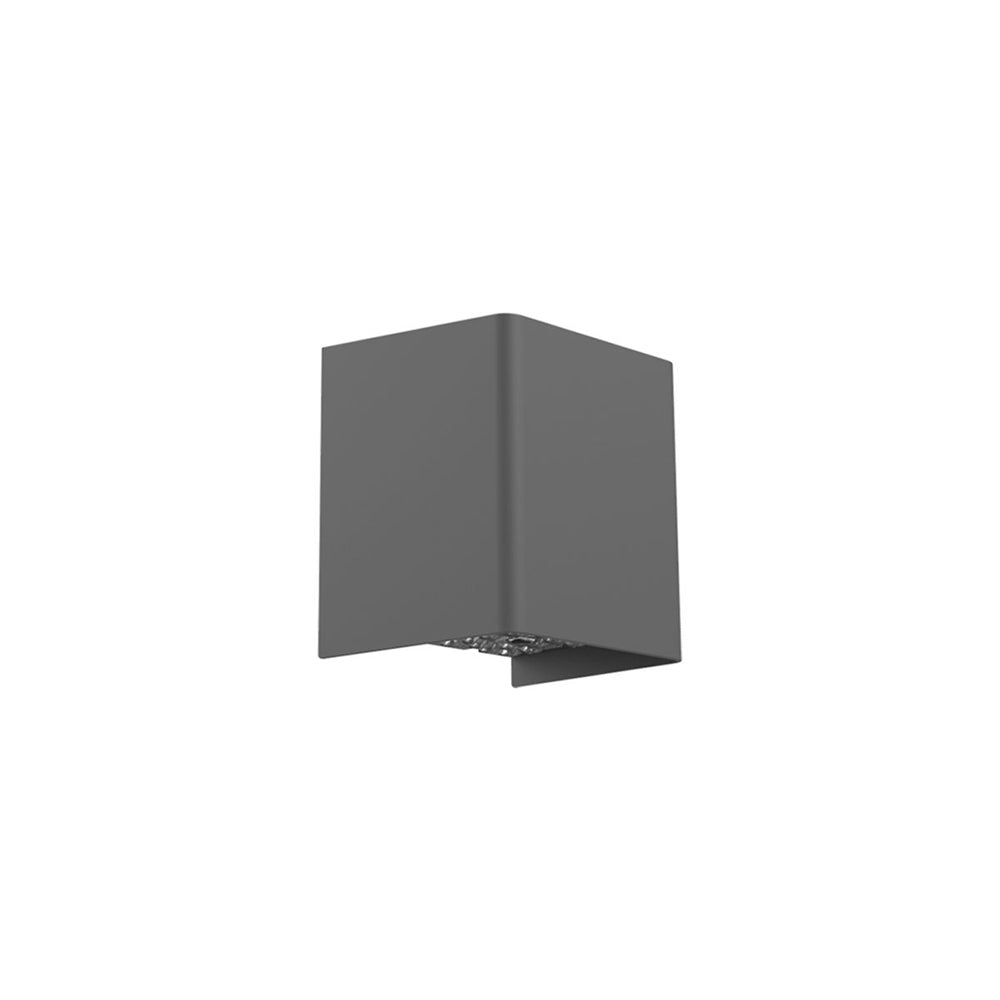

Gardco Lighting GeoForm Block Small LED Wall Sconce GBS

GeoForm LED wall sconces offer six distinct luminaire shapes to pair with buildings large and small, modern or traditional. Designed around the latest in LED technology, these sconces are small in scale, featuring a minimalistic daytime aesthetic. At night, GeoForm sconces combine best-in-class pathway lighting with specialized optics to highlight any facade.

Benefits

  • Modern and compact geometric designs to complement architecture.
  • Two light engines available to provide excellent pathway illumination or facade lighting.
  • Provides up to 174 lumens per watt for significant energy savings.
  • Lightweight for ease of installation.
  • Service Tag feature provides assistance throughout the life of the product.

Features

  • Block shape available in two sizes: small and medium.
  • Precision plus optics provide excellent pathway illumination, while light effects illuminate building features.
  • Block medium with light effects optics available with both up-and-down lighting.
  • Lumen output ranging from 1500 to 6000 lumens.
  • Control options available for additional energy savings.
  • Emergency battery backup option for path-of-egress illumination

Applications

  • Airports
  • Eduction
  • Exit and Emergency
  • Healthcare
  • Hospitality
  • Retail
  • Schools
  • Walkways
  • Warehouses

Product List

Compare Product Name Compare Product Sku Wattage (W): Lumens (lm): CCT (K):
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Type 2 GBS-A01-830-T2M 10 1500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Type 2 GBS-A02-830-T2M 17 2500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Type 2 GBS-A03-830-T2M 25 4000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Type 2 GBS-A04-830-T2M 34 5000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Type 2 GBS-A05-830-T2M 41 6000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Type 2 GBS-A01-840-T2M 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Type 2 GBS-A02-840-T2M 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Type 2 GBS-A03-840-T2M 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Type 2 GBS-A04-840-T2M 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Type 2 GBS-A05-840-T2M 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 4000k, Type 2 GBS-A01-740-T2M 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 4000k, Type 2 GBS-A02-740-T2M 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 4000k, Type 2 GBS-A03-740-T2M 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 4000k, Type 2 GBS-A04-740-T2M 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 4000k, Type 2 GBS-A05-740-T2M 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 5000k, Type 2 GBS-A01-750-T2M 10 1500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 5000k, Type 2 GBS-A02-750-T2M 17 2500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 5000k, Type 2 GBS-A03-750-T2M 25 4000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 5000k, Type 2 GBS-A04-750-T2M 34 5000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 5000k, Type 2 GBS-A05-750-T2M 41 6000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Type 3 GBS-A01-830-T3M 10 1500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Type 3 GBS-A02-830-T3M 17 2500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Type 3 GBS-A03-830-T3M 25 4000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Type 3 GBS-A04-830-T3M 34 5000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Type 3 GBS-A05-830-T3M 41 6000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Type 3 GBS-A01-840-T3M 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Type 3 GBS-A02-840-T3M 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Type 3 GBS-A03-840-T3M 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Type 3 GBS-A04-840-T3M 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Type 3 GBS-A05-840-T3M 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 4000k, Type 3 GBS-A01-740-T3M 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 4000k, Type 3 GBS-A02-740-T3M 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 4000k, Type 3 GBS-A03-740-T3M 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 4000k, Type 3 GBS-A04-740-T3M 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 4000k, Type 3 GBS-A05-740-T3M 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 5000k, Type 3 GBS-A01-750-T3M 10 1500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 5000k, Type 3 GBS-A02-750-T3M 17 2500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 5000k, Type 3 GBS-A03-750-T3M 25 4000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 5000k, Type 3 GBS-A04-750-T3M 34 5000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 5000k, Type 3 GBS-A05-750-T3M 41 6000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Type 4 GBS-A01-830-T4M 10 1500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Type 4 GBS-A02-830-T4M 17 2500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Type 4 GBS-A03-830-T4M 25 4000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Type 4 GBS-A04-830-T4M 34 5000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Type 4 GBS-A05-830-T4M 41 6000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Type 4 GBS-A01-840-T4M 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Type 4 GBS-A02-840-T4M 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Type 4 GBS-A03-840-T4M 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Type 4 GBS-A04-840-T4M 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Type 4 GBS-A05-840-T4M 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 4000k, Type 4 GBS-A01-740-T4M 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 4000k, Type 4 GBS-A02-740-T4M 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 4000k, Type 4 GBS-A03-740-T4M 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 4000k, Type 4 GBS-A04-740-T4M 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 4000k, Type 4 GBS-A05-740-T4M 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 5000k, Type 4 GBS-A01-750-T4M 10 1500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 5000k, Type 4 GBS-A02-750-T4M 17 2500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 5000k, Type 4 GBS-A03-750-T4M 25 4000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 5000k, Type 4 GBS-A04-750-T4M 34 5000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 5000k, Type 4 GBS-A05-750-T4M 41 6000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A01-830-DFL 10 1500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A02-830-DFL 17 2500 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A03-830-DFL 25 4000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A04-830-DFL 34 5000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A05-830-DFL 41 6000 3000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A01-840-DFL 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A02-840-DFL 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A03-840-DFL 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A04-840-DFL 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 80 CRI, 3000k, Diffuse Lens GBS-A05-840-DFL 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 4000k, Diffuse Lens GBS-A01-740-DFL 10 1500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 4000k, Diffuse Lens GBS-A02-740-DFL 17 2500 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 4000k, Diffuse Lens GBS-A03-740-DFL 25 4000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 4000k, Diffuse Lens GBS-A04-740-DFL 34 5000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 4000k, Diffuse Lens GBS-A05-740-DFL 41 6000 4000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 10W, 1500 Lumens, 70 CRI, 5000k, Diffuse Lens GBS-A01-750-DFL 10 1500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 17W, 2500 Lumens, 70 CRI, 5000k, Diffuse Lens GBS-A02-750-DFL 17 2500 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 25W, 4000 Lumens, 70 CRI, 5000k, Diffuse Lens GBS-A03-750-DFL 25 4000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 34W, 5000 Lumens, 70 CRI, 5000k, Diffuse Lens GBS-A04-750-DFL 34 5000 5000
GeoForm Wall Sconce, Block Small GBS, Precision Plus, 41W, 6000 Lumens, 70 CRI, 5000k, Diffuse Lens GBS-A05-750-DFL 41 6000 5000
Product Files

Click for GBS_GeoForm_Block_Small.pdf

Click for PGc-2201BR - GeoForm brochure.pdf

Click for GBS Installation Instructions
