Gardco Lighting MP17L Form Ten Round Post Top LED MPL

Gardco LightingSKU: MP17L
No reviews

Price:
Sale price$0.00 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.

Description

Information For: Gardco Lighting MP17L Form Ten Round Post Top LED MPL

Product Family Details

  • Source: LED
  • Voltage(s): 120, 208, 240, 277, 347, 480
  • Lumens: 11000, 11200, 11300, 11400, 12900, 13400, 13800, 14000, 14200, 14300, 15800, 16400, 17400, 18600, 18800, 19200, 19300, 21100, 21400, 21800, 21900, 4000, 4100, 4400, 5000, 5100, 5200, 5300, 7000, 7200, 7300, 7500, 7800, 8000, 8600, 8900, 9000, 9100, 9200, 9300, 9500
  • Input watts: 109.9, 110, 144, 171, 199, 47, 47.4, 95.7, 96
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • CRI: 70
  • Shape: Round
  • Distribution Type: Type II, Type III, Type IV, Type V
  • Mounting type(s): Pole Top

Product Family Information

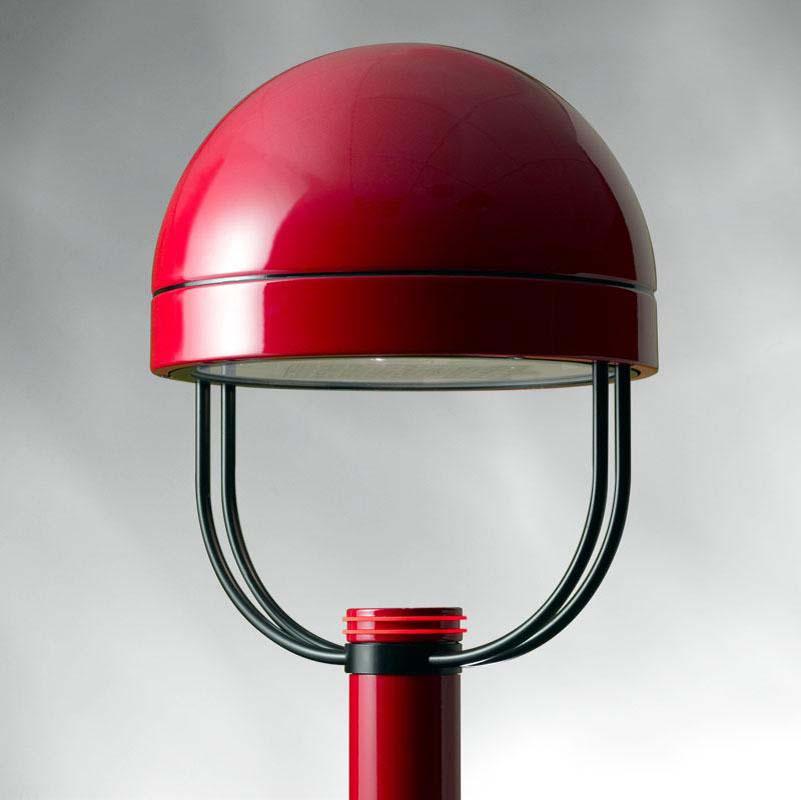

Gardco Form Ten Round luminaires are a natural complement to their rectilinear counterparts. Architecturally, the series lends itself to an extensive variety of building motifs, permitting the designer to choose to draw attention to the luminaire or to have it gracefully fade into the surroundings. Now, by incorporating state-of-the-art, high performance LEDs, these luminaires provide the classic shapes desired today together with the energy saving advantages of the source for tomorrow. Available in the 17" size, the Form Ten Round LED luminaires are offered in two styles - the domed top "M" series and the cylindrical "C" series. Both models preserve the features and benefits that make them industry leaders in site illumination. A one-piece, die cast aluminum door frame contains a heat and impact resistant glass lens and is fully gasketed with memory-retentive, hollow core silicone rubber. The lens and optical pan hinges down with a quarter turn of a captive stainless steel screw. The driver assembly is prewired with quick disconnects and simply dismounts for service or replacement.

Catalog Number Lumens Input watts Distribution Type
MP17L-32L-450-NW-G2-2 5300 47 Type II
MP17L-32L-450-NW-G2-2-HIS 4400 47.4 Type II
MP17L-32L-450-NW-G2-3 5000 47 Type III
MP17L-32L-450-NW-G2-3-HIS 4100 47.4 Type III
MP17L-32L-450-NW-G2-4 5200 47 Type IV
MP17L-32L-450-NW-G2-4-HIS 4000 47.4 Type IV
MP17L-32L-450-NW-G2-5 5100 47 Type V
MP17L-32L-900-NW-G2-2 9300 96 Type II
MP17L-32L-900-NW-G2-2-HIS 7800 95.7 Type II
MP17L-32L-900-NW-G2-3 8900 96 Type III
MP17L-32L-900-NW-G2-3-HIS 7300 95.7 Type III
MP17L-32L-900-NW-G2-4 9200 96 Type IV
MP17L-32L-900-NW-G2-4-HIS 7000 95.7 Type IV
MP17L-32L-900-NW-G2-5 9100 96 Type V
MP17L-48L-700-NW-G2-2 11400 110 Type II
MP17L-48L-700-NW-G2-2-HIS 9500 109.9 Type II
MP17L-48L-700-NW-G2-3 11000 110 Type III
MP17L-48L-700-NW-G2-3-HIS 9000 109.9 Type III
MP17L-48L-700-NW-G2-4 11300 110 Type IV
MP17L-48L-700-NW-G2-4-HIS 8600 109.9 Type IV
MP17L-48L-700-NW-G2-5 11200 110 Type V
MP22L-48L-900-NW-G2-2 14300 144 Type II
MP22L-48L-900-NW-G2-2-HIS 8000 144 Type II
MP22L-48L-900-NW-G2-3 13800 144 Type III
MP22L-48L-900-NW-G2-3-HIS 7500 144 Type III
