Description

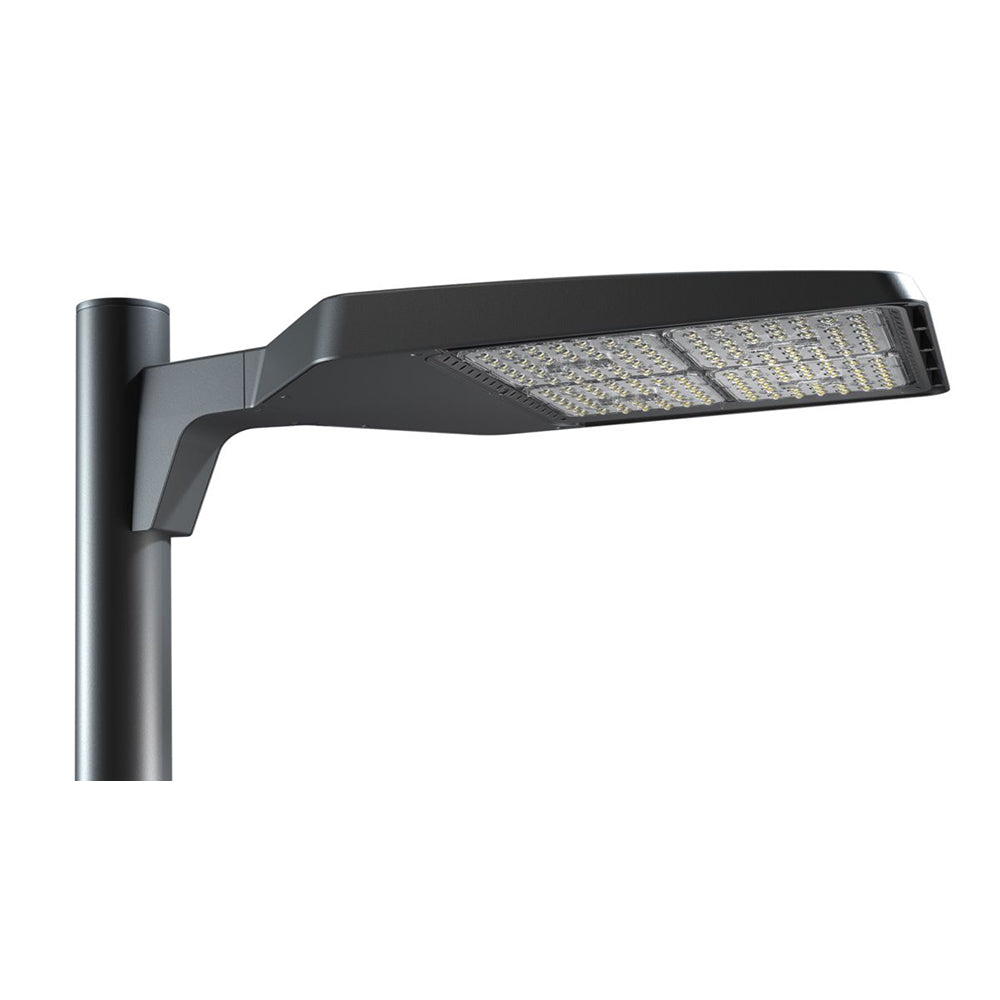

Gardco Lighting OptiForm LED Area Large OPF-L
Gardco OptiForm site and area luminaires are available in three sizes to provide an efficient site lighting luminaire from the pathway to a large parking lot. Featuring the latest in LED technology, OptiForm achieves up to 190 lumens per watt. Eleven optical distributions are available, suitable for a range of outdoor lighting applications. OptiForm features a lightweight design that is easy to install. Service Tag provides ease of maintenance throughout the life of the luminaire.
Benefits
- Low profile design in three sizes to complement any style of architecture.
- Provides up to 190 lumens per watt for significant energy savings.
- Lightweight luminaire for ease of installation.
- Service Tag feature provides assistance throughout the life of the product.
Features
- Unique mounting system with two-piece housing allows for hassle-free installation.
- Mounting options include standard arm, mast arm, and wall mount.
- Eleven optical distributions are available.
- Lumen output ranging from 35,000 to 67,000 lumens.
- Control options available for additional energy savings.
Applications
- Airports
- Education
- Healthcare
- Hospitality

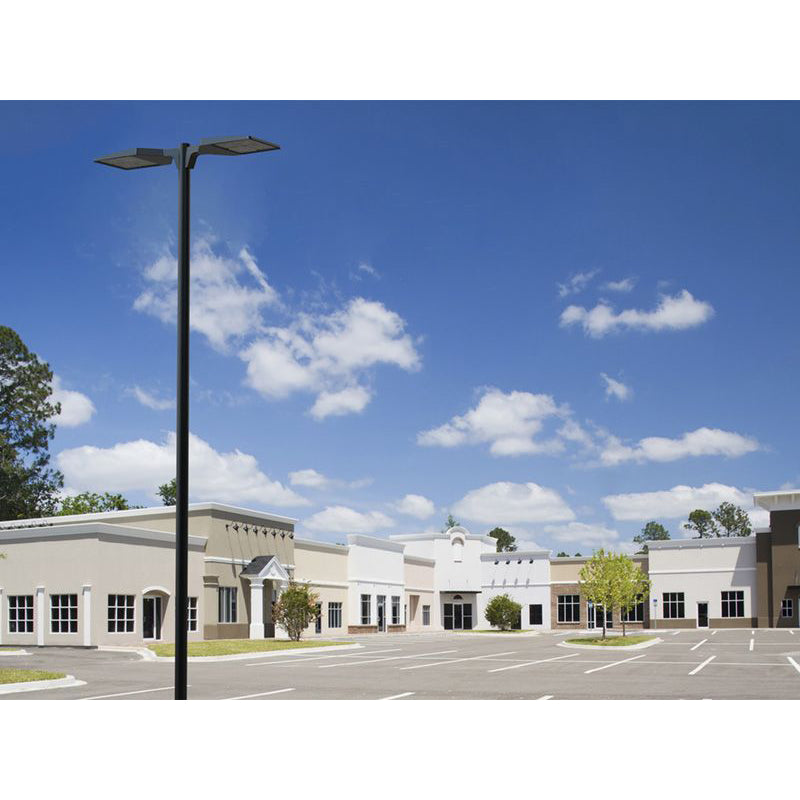

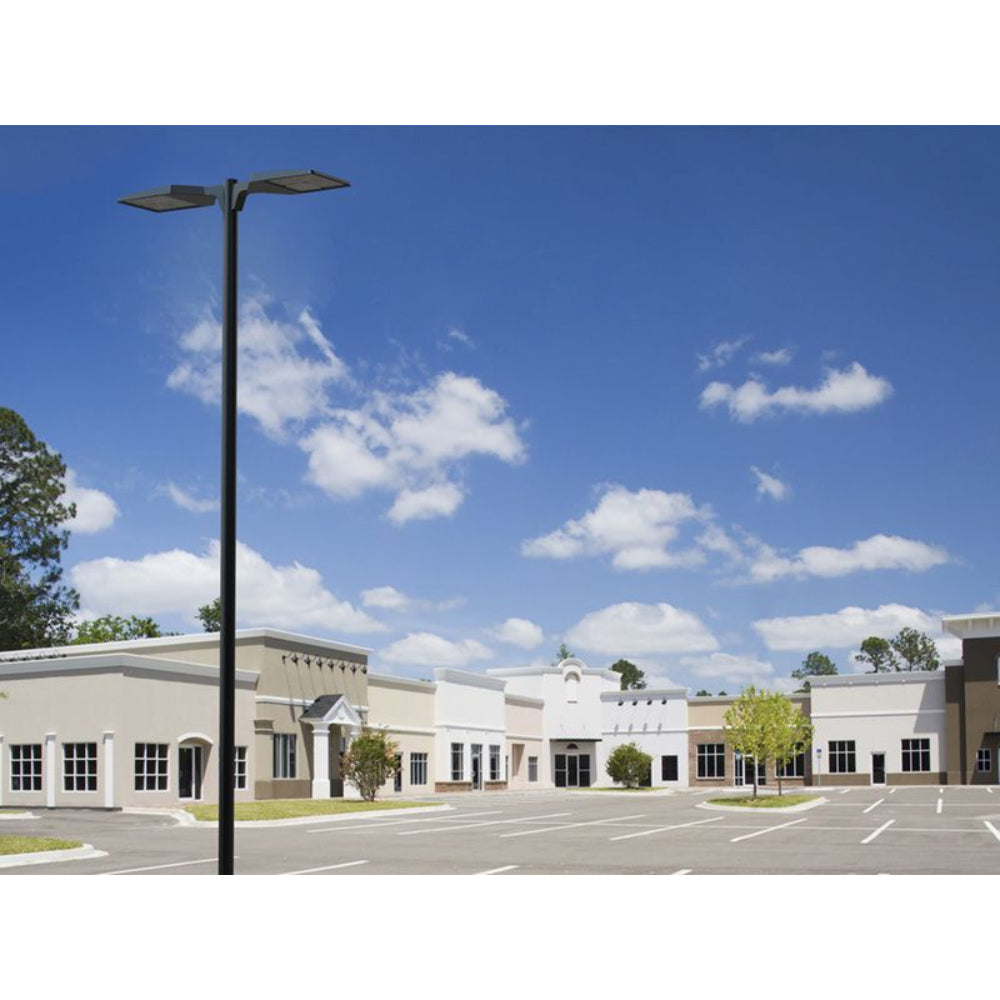

- Parking Lots
- Schools
- Walkways
- Warehouses
Product List
| Compare Product Name | Compare Product Sku | Wattage (W): | Lumens (lm): | CCT (K): |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Auto Front Row | OPF-L-A16-830-AFR | 74.41 | 13458.2 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-L-A16-830-T2M | 74.41 | 12993.9 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-L-A16-830-T3M | 74.41 | 12890.2 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-L-A16-830-T4M | 74.41 | 13063.6 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 4 Wide | OPF-L-A16-830-T4W | 74.41 | 12438.2 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-L-A16-830-T5M | 74.41 | 13465.1 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 5 Narrow | OPF-L-A16-830-T5N | 74.41 | 13370.3 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 3000k, Type 5 Wide | OPF-L-A16-830-T5W | 74.41 | 12873.2 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Auto Front Row | OPF-L-A16-840-AFR | 74.41 | 14228.3 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-L-A16-840-T2M | 74.41 | 13737.5 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-L-A16-840-T3M | 74.41 | 13627.9 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-L-A16-840-T4M | 74.41 | 13811.2 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 4 Wide | OPF-L-A16-840-T4W | 74.41 | 13150 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-L-A16-840-T5M | 74.41 | 14235.7 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 5 Narrow | OPF-L-A16-840-T5N | 74.41 | 14135.5 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 80 CRI, 4000k, Type 5 Wide | OPF-L-A16-840-T5W | 74.41 | 13609.9 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Auto Front Row | OPF-L-A16-730-AFR | 74.41 | 14228.3 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 2 Medium | OPF-L-A16-730-T2M | 74.41 | 13737.5 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 3 Medium | OPF-L-A16-730-T3M | 74.41 | 13627.9 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 4 Medium | OPF-L-A16-730-T4M | 74.41 | 13811.2 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 4 Wide | OPF-L-A16-730-T4W | 74.41 | 13150 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 5 Medium | OPF-L-A16-730-T5M | 74.41 | 14235.7 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 5 Narrow | OPF-L-A16-730-T5N | 74.41 | 14135.5 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 3000k, Type 5 Wide | OPF-L-A16-730-T5W | 74.41 | 13609.9 | 3000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Auto Front Row | OPF-L-A16-740-AFR | 74.41 | 11917.7 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 2 Medium | OPF-L-A16-740-T2M | 74.41 | 11506.6 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 3 Medium | OPF-L-A16-740-T3M | 74.41 | 11414.8 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 4 Medium | OPF-L-A16-740-T4M | 74.41 | 11568.3 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 4 Wide | OPF-L-A16-740-T4W | 74.41 | 11014.5 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 5 Medium | OPF-L-A16-740-T5M | 74.41 | 11923.9 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 5 Narrow | OPF-L-A16-740-T5N | 74.41 | 11839.9 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 4000k, Type 5 Wide | OPF-L-A16-740-T5W | 74.41 | 11399.7 | 4000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Auto Front Row | OPF-L-A16-750-AFR | 74.41 | 12688 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-L-A16-750-T2M | 74.41 | 12250.3 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-L-A16-750-T3M | 74.41 | 12152.5 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-L-A16-750-T4M | 74.41 | 12316 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 4 Wide | OPF-L-A16-750-T4W | 74.41 | 11726.4 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 5 Medium | OPF-L-A16-750-T5M | 74.41 | 12694.5 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 5 Narrow | OPF-L-A16-750-T5N | 74.41 | 12605.2 | 5000 |
| OptiForm Area Large, Area Optic, 35,000 Lumens, 70 CRI, 5000k, Type 5 Wide | OPF-L-A16-750-T5W | 74.41 | 12136.5 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Auto Front Row | OPF-L-A17-830-AFR | 93 | 16735.6 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-L-A17-830-T2M | 93 | 16158.2 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-L-A17-830-T3M | 93 | 16029.3 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-L-A17-830-T4M | 93 | 16244.9 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 4 Wide | OPF-L-A17-830-T4W | 93 | 15467.2 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-L-A17-830-T5M | 93 | 16744.2 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 5 Narrow | OPF-L-A17-830-T5N | 93 | 16626.3 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 3000k, Type 5 Wide | OPF-L-A17-830-T5W | 93 | 16008.2 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Auto Front Row | OPF-L-A17-840-AFR | 93 | 17693.4 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-L-A17-840-T2M | 93 | 17082.9 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-L-A17-840-T3M | 93 | 16946.6 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-L-A17-840-T4M | 93 | 17174.6 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 4 Wide | OPF-L-A17-840-T4W | 93 | 16352.4 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-L-A17-840-T5M | 93 | 17702.5 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 5 Narrow | OPF-L-A17-840-T5N | 93 | 17577.9 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 80 CRI, 4000k, Type 5 Wide | OPF-L-A17-840-T5W | 93 | 16924.3 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Auto Front Row | OPF-L-A17-730-AFR | 93 | 17693.4 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 2 Medium | OPF-L-A17-730-T2M | 93 | 17082.9 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 3 Medium | OPF-L-A17-730-T3M | 93 | 16946.6 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 4 Medium | OPF-L-A17-730-T4M | 93 | 17174.6 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 4 Wide | OPF-L-A17-730-T4W | 93 | 16352.4 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 5 Medium | OPF-L-A17-730-T5M | 93 | 17702.5 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 5 Narrow | OPF-L-A17-730-T5N | 93 | 17577.9 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 3000k, Type 5 Wide | OPF-L-A17-730-T5W | 93 | 16924.3 | 3000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Auto Front Row | OPF-L-A17-740-AFR | 93 | 14820.1 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 2 Medium | OPF-L-A17-740-T2M | 93 | 14308.8 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 3 Medium | OPF-L-A17-740-T3M | 93 | 14194.6 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 4 Medium | OPF-L-A17-740-T4M | 93 | 14385.6 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 4 Wide | OPF-L-A17-740-T4W | 93 | 13696.9 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 5 Medium | OPF-L-A17-740-T5M | 93 | 14827.7 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 5 Narrow | OPF-L-A17-740-T5N | 93 | 14723.4 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 4000k, Type 5 Wide | OPF-L-A17-740-T5W | 93 | 14176 | 4000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Auto Front Row | OPF-L-A17-750-AFR | 93 | 15777.9 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-L-A17-750-T2M | 93 | 15233.5 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-L-A17-750-T3M | 93 | 15112 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-L-A17-750-T4M | 93 | 15315.3 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 4 Wide | OPF-L-A17-750-T4W | 93 | 14582.1 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 5 Medium | OPF-L-A17-750-T5M | 93 | 15786 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 5 Narrow | OPF-L-A17-750-T5N | 93 | 15674.9 | 5000 |
| OptiForm Area Large, Area Optic, 36,000 Lumens, 70 CRI, 5000k, Type 5 Wide | OPF-L-A17-750-T5W | 93 | 15092.1 | 5000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Auto Front Row | OPF-L-A18-830-AFR | 112 | 19943.6 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-L-A18-830-T2M | 112 | 19255.5 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-L-A18-830-T3M | 112 | 19101.9 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-L-A18-830-T4M | 112 | 19358.9 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 4 Wide | OPF-L-A18-830-T4W | 112 | 18432.1 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-L-A18-830-T5M | 112 | 19953.9 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 5 Narrow | OPF-L-A18-830-T5N | 112 | 19813.4 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 3000k, Type 5 Wide | OPF-L-A18-830-T5W | 112 | 19076.8 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Auto Front Row | OPF-L-A18-840-AFR | 112 | 21084.9 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-L-A18-840-T2M | 112 | 20357.4 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-L-A18-840-T3M | 112 | 20195 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-L-A18-840-T4M | 112 | 20466.7 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 4 Wide | OPF-L-A18-840-T4W | 112 | 19486.9 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-L-A18-840-T5M | 112 | 21095.8 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 5 Narrow | OPF-L-A18-840-T5N | 112 | 20947.3 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 80 CRI, 4000k, Type 5 Wide | OPF-L-A18-840-T5W | 112 | 20168.5 | 4000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 70 CRI, 3000k, Auto Front Row | OPF-L-A18-730-AFR | 112 | 21084.9 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 70 CRI, 3000k, Type 2 Medium | OPF-L-A18-730-T2M | 112 | 20357.4 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 70 CRI, 3000k, Type 3 Medium | OPF-L-A18-730-T3M | 112 | 20195 | 3000 |
| OptiForm Area Large, Area Optic, 38,000 Lumens, 70 CRI, 3000k, Type 4 Medium | OPF-L-A18-730-T4M | 112 | 20466.7 | 3000 |
