Description

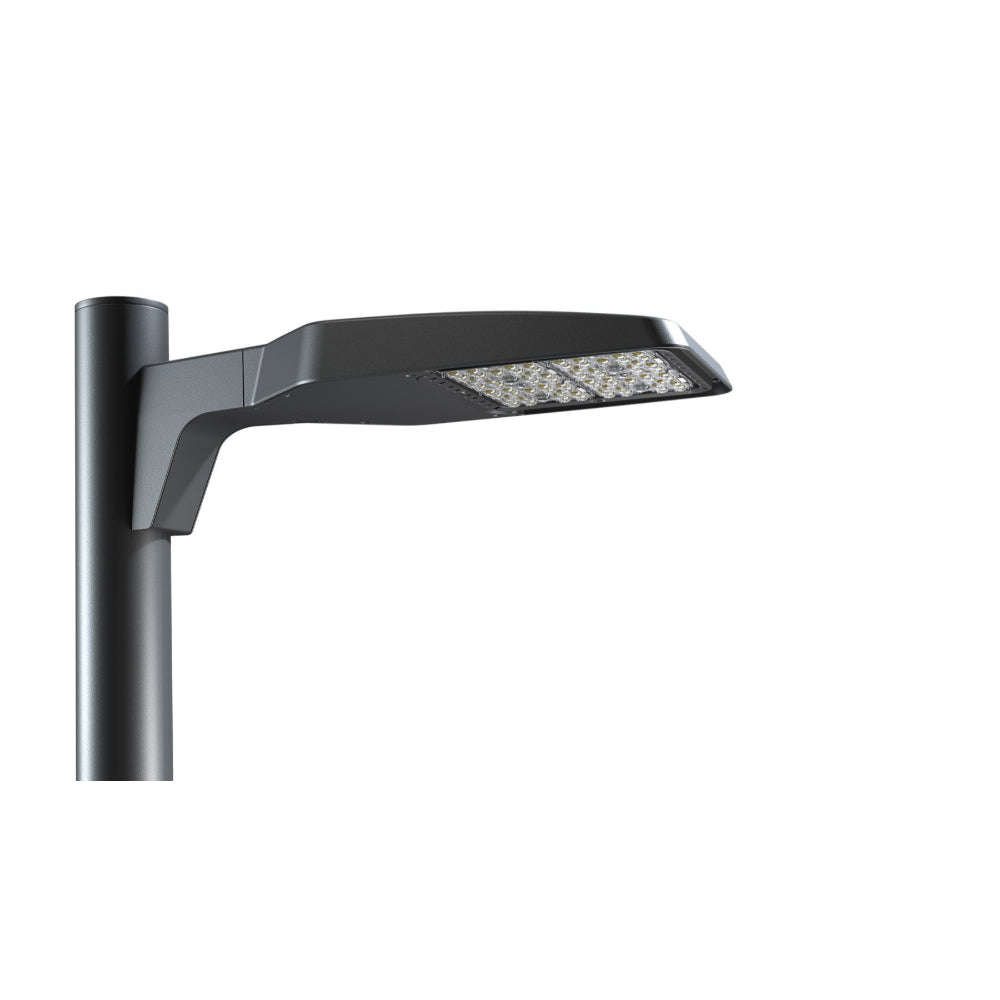

Gardco Lighting OptiForm LED Area Small OPF-S
Gardco OptiForm site and area luminaires are available in three sizes to provide an efficient site lighting luminaire from the pathway to a large parking lot. Featuring the latest in LED technology, OptiForm achieves up to 180 lumens per watt. Eleven optical distributions are available, suitable for a range of outdoor lighting applications. OptiForm features a lightweight design that is easy to install. Service Tag provides ease of maintenance throughout the life of the luminaire.
Benefits
- Low profile design in three sizes to complement any style of architecture.
- Provides up to 183 lumens per watt for significant energy savings.
- Lightweight luminaire for ease of installation.
- Service Tag feature provides assistance throughout the life of the product.
Features
- Two light engines provide low glare illumination or optimal performance.
- Unique mounting system with two-piece housing allows for hassle-free installation.
- Mounting options include standard arm, mast arm, and wall mount.
- Eleven optical distributions are available.
- Lumen output ranging from 2500 to 22,000 lumens.
Applications
- Airports
- Education
- Healthcare
- Hospitality

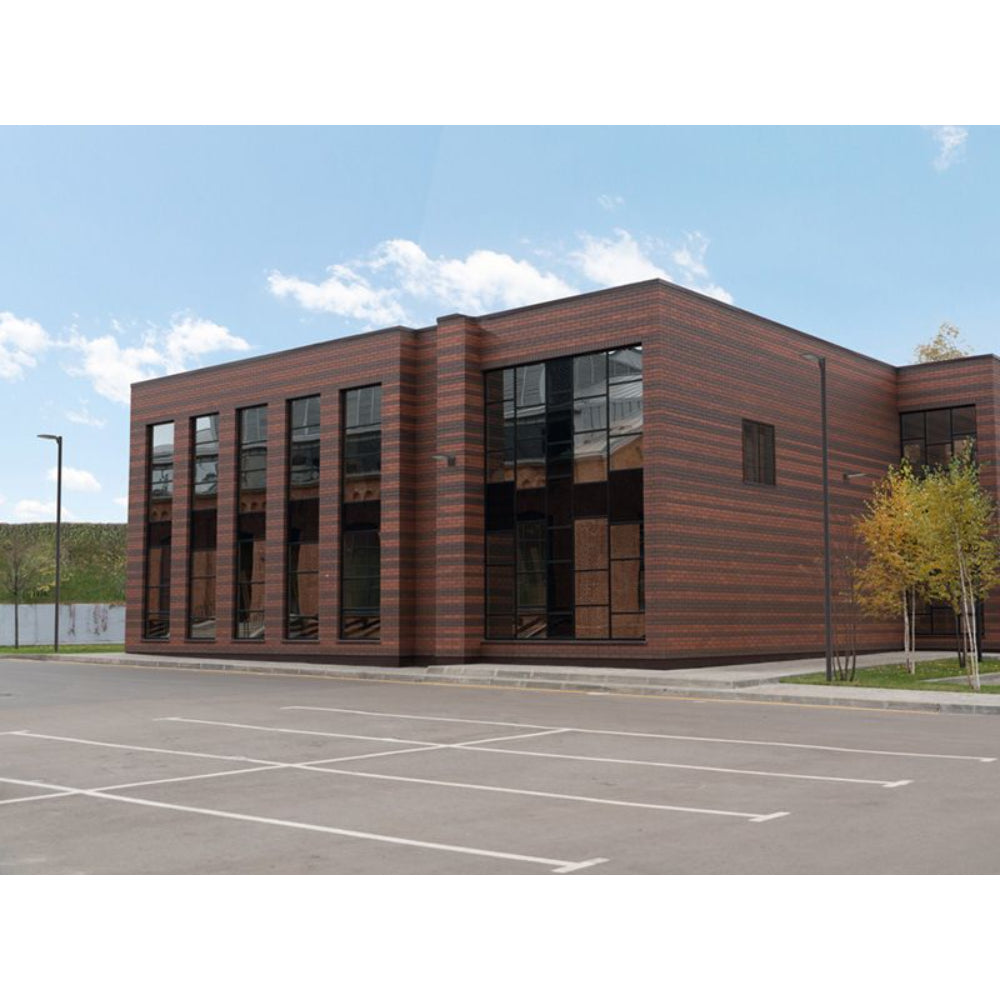

- Parking Lots
- Retail
- Schools

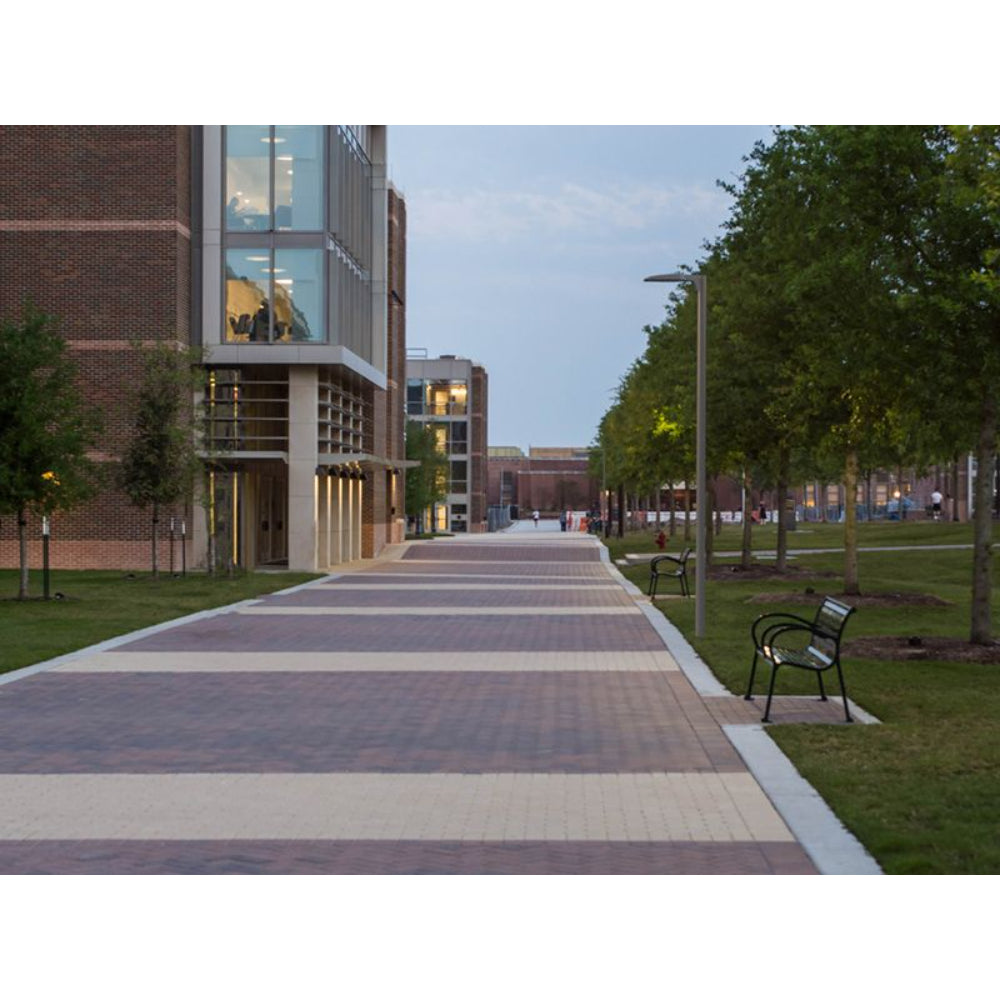

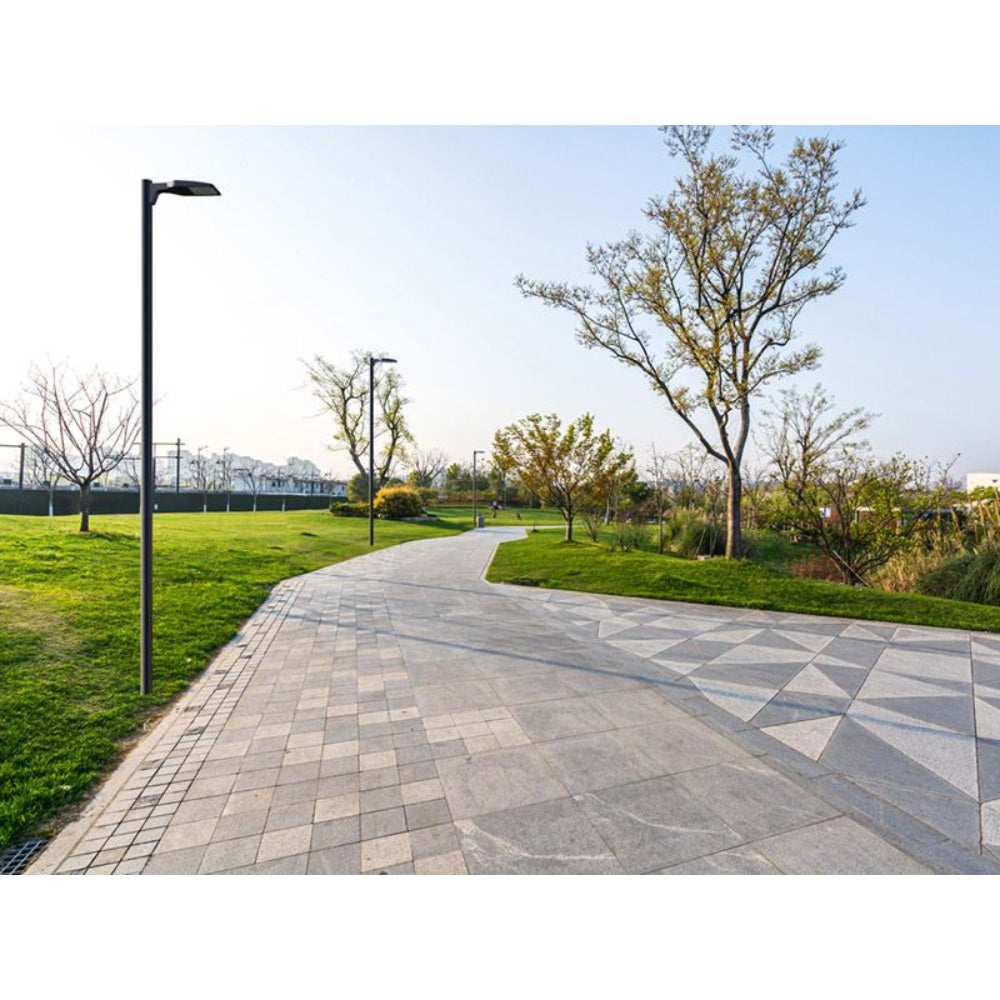

- Walkways
- Warehouses
Product List
| Compare Product Name | Compare Product Sku | Wattage (W): | Lumens (lm): | CCT (K): |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P01-830-T2M | 15 | 2383 | 3000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P02-830-T2M | 23 | 3562 | 3000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P03-830-T2M | 38 | 5725 | 3000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P04-830-T2M | 53 | 7757 | 3000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P05-830-T2M | 66 | 9965 | 3000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P06-830-T2M | 76 | 12387 | 3000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P07-830-T2M | 94 | 14037 | 3000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P08-830-T2M | 113 | 17535 | 3000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 3000k, Type 2 Medium | OPF-S-P09-830-T2M | 133 | 19178 | 3000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P01-830-T3M | 15 | 2407 | 3000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P02-830-T3M | 23 | 3598 | 3000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P03-830-T3M | 38 | 5783 | 3000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P04-830-T3M | 53 | 7836 | 3000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P05-830-T3M | 66 | 10066 | 3000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P06-830-T3M | 76 | 12511 | 3000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P07-830-T3M | 94 | 14178 | 3000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P08-830-T3M | 113 | 17711 | 3000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 3000k, Type 3 Medium | OPF-S-P09-830-T3M | 133 | 19371 | 3000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P01-830-T4M | 15 | 2360 | 3000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P02-830-T4M | 23 | 3527 | 3000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P03-830-T4M | 38 | 5669 | 3000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P04-830-T4M | 53 | 7682 | 3000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P05-830-T4M | 66 | 9868 | 3000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P06-830-T4M | 76 | 12266 | 3000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P07-830-T4M | 94 | 13900 | 3000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P08-830-T4M | 113 | 17364 | 3000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 3000k, Type 4 Medium | OPF-S-P09-830-T4M | 133 | 18991 | 3000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P01-830-T5M | 15 | 2311 | 3000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P02-830-T5M | 23 | 3454 | 3000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P03-830-T5M | 38 | 5552 | 3000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P04-830-T5M | 53 | 7523 | 3000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P05-830-T5M | 66 | 9665 | 3000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P06-830-T5M | 76 | 12013 | 3000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P07-830-T5M | 94 | 13613 | 3000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P08-830-T5M | 113 | 17005 | 3000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 3000k, Type 5 Medium | OPF-S-P09-830-T5M | 133 | 18599 | 3000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P01-840-T2M | 15 | 2537 | 4000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P02-840-T2M | 23 | 3792 | 4000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P03-840-T2M | 38 | 6095 | 4000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P04-840-T2M | 53 | 8258 | 4000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P05-840-T2M | 66 | 10609 | 4000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P06-840-T2M | 76 | 13187 | 4000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P07-840-T2M | 94 | 14943 | 4000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P08-840-T2M | 113 | 18667 | 4000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 4000k, Type 2 Medium | OPF-S-P09-840-T2M | 133 | 20416 | 4000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P01-840-T3M | 15 | 2562 | 4000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P02-840-T3M | 23 | 3830 | 4000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P03-840-T3M | 38 | 6156 | 4000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P04-840-T3M | 53 | 8342 | 4000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P05-840-T3M | 66 | 10716 | 4000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P06-840-T3M | 76 | 13320 | 4000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P07-840-T3M | 94 | 15094 | 4000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P08-840-T3M | 113 | 18855 | 4000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 4000k, Type 3 Medium | OPF-S-P09-840-T3M | 133 | 20622 | 4000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P01-840-T4M | 15 | 2512 | 4000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P02-840-T4M | 23 | 3755 | 4000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P03-840-T4M | 38 | 6035 | 4000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P04-840-T4M | 53 | 8178 | 4000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P05-840-T4M | 66 | 10506 | 4000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P06-840-T4M | 76 | 13058 | 4000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P07-840-T4M | 94 | 14798 | 4000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P08-840-T4M | 113 | 18485 | 4000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 4000k, Type 4 Medium | OPF-S-P09-840-T4M | 133 | 20218 | 4000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P01-840-T5M | 15 | 2460 | 4000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P02-840-T5M | 23 | 3677 | 4000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P03-840-T5M | 38 | 5911 | 4000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P04-840-T5M | 53 | 8009 | 4000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P05-840-T5M | 66 | 10289 | 4000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P06-840-T5M | 76 | 12789 | 4000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P07-840-T5M | 94 | 14492 | 4000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P08-840-T5M | 113 | 18104 | 4000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 80 CRI, 4000k, Type 5 Medium | OPF-S-P09-840-T5M | 133 | 19800 | 4000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P01-750-T2M | 15 | 2845 | 5000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P02-750-T2M | 23 | 4252 | 5000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P03-750-T2M | 38 | 6835 | 5000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P04-750-T2M | 53 | 9261 | 5000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P05-750-T2M | 66 | 11898 | 5000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P06-750-T2M | 76 | 14788 | 5000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P07-750-T2M | 94 | 16758 | 5000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P08-750-T2M | 113 | 20934 | 5000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 70 CRI, 5000k, Type 2 Medium | OPF-S-P09-750-T2M | 133 | 22896 | 5000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P01-750-T3M | 15 | 2874 | 5000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P02-750-T3M | 23 | 4295 | 5000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P03-750-T3M | 38 | 6904 | 5000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P04-750-T3M | 53 | 9355 | 5000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P05-750-T3M | 66 | 12018 | 5000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P06-750-T3M | 76 | 14937 | 5000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P07-750-T3M | 94 | 16927 | 5000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P08-750-T3M | 113 | 21145 | 5000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 70 CRI, 5000k, Type 3 Medium | OPF-S-P09-750-T3M | 133 | 23127 | 5000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P01-750-T4M | 15 | 2817 | 5000 |
| OptiForm Area Small, Precision Plus, 4,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P02-750-T4M | 23 | 4211 | 5000 |
| OptiForm Area Small, Precision Plus, 6,500 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P03-750-T4M | 38 | 6768 | 5000 |
| OptiForm Area Small, Precision Plus, 9,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P04-750-T4M | 53 | 9171 | 5000 |
| OptiForm Area Small, Precision Plus, 11,500 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P05-750-T4M | 66 | 11782 | 5000 |
| OptiForm Area Small, Precision Plus, 14,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P06-750-T4M | 76 | 14644 | 5000 |
| OptiForm Area Small, Precision Plus, 16,500 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P07-750-T4M | 94 | 16595 | 5000 |
| OptiForm Area Small, Precision Plus, 19,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P08-750-T4M | 113 | 20730 | 5000 |
| OptiForm Area Small, Precision Plus, 22,000 Lumens, 70 CRI, 5000k, Type 4 Medium | OPF-S-P09-750-T4M | 133 | 22673 | 5000 |
| OptiForm Area Small, Precision Plus, 2,500 Lumens, 70 CRI, 5000k, Type 5 Medium | OPF-S-P01-750-T5M | 15 | 2759 | 5000 |
Product Files
Click for OptiForm_OPF-S_Spec_Sheet.pdf
Click for Outdoor Multisensor Spec Sheet (NAM)
Click for OptiForm Installation Instructions
Click for LRI8135-00_Outdoor multisensor Install Instructions
