Description

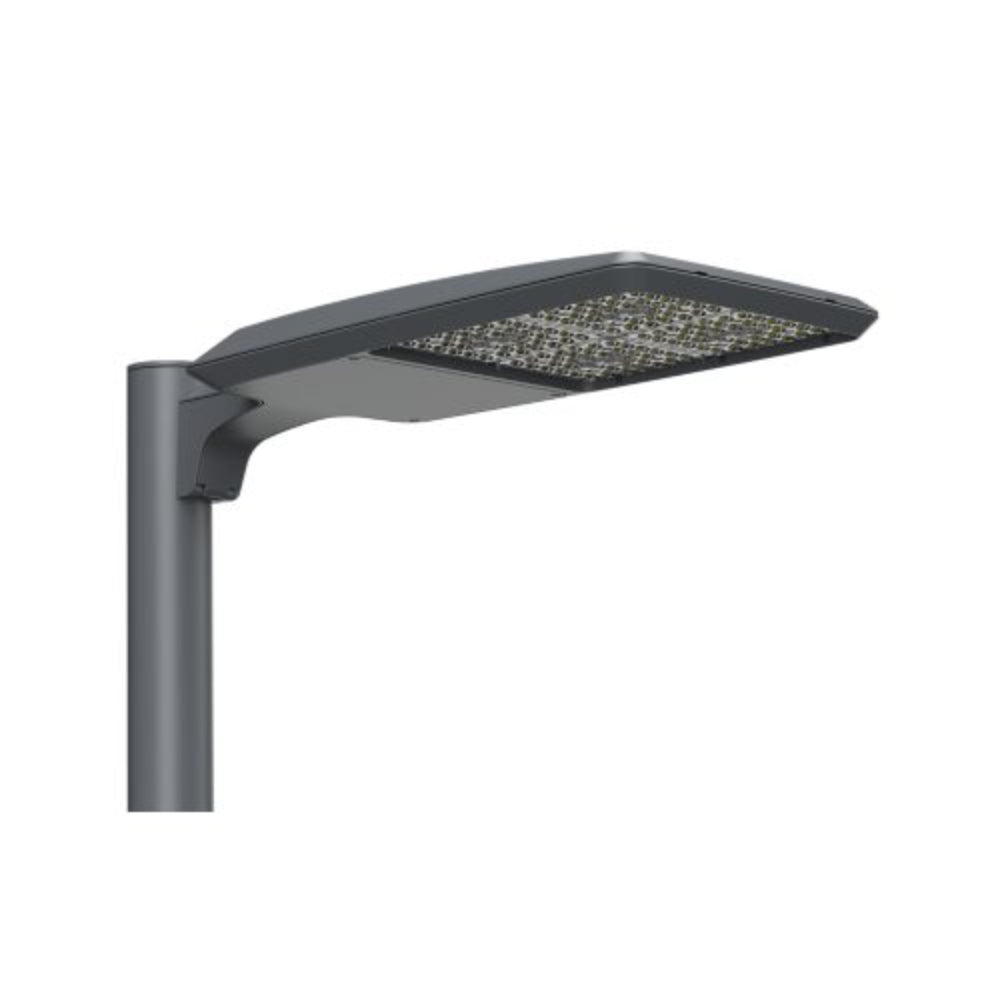

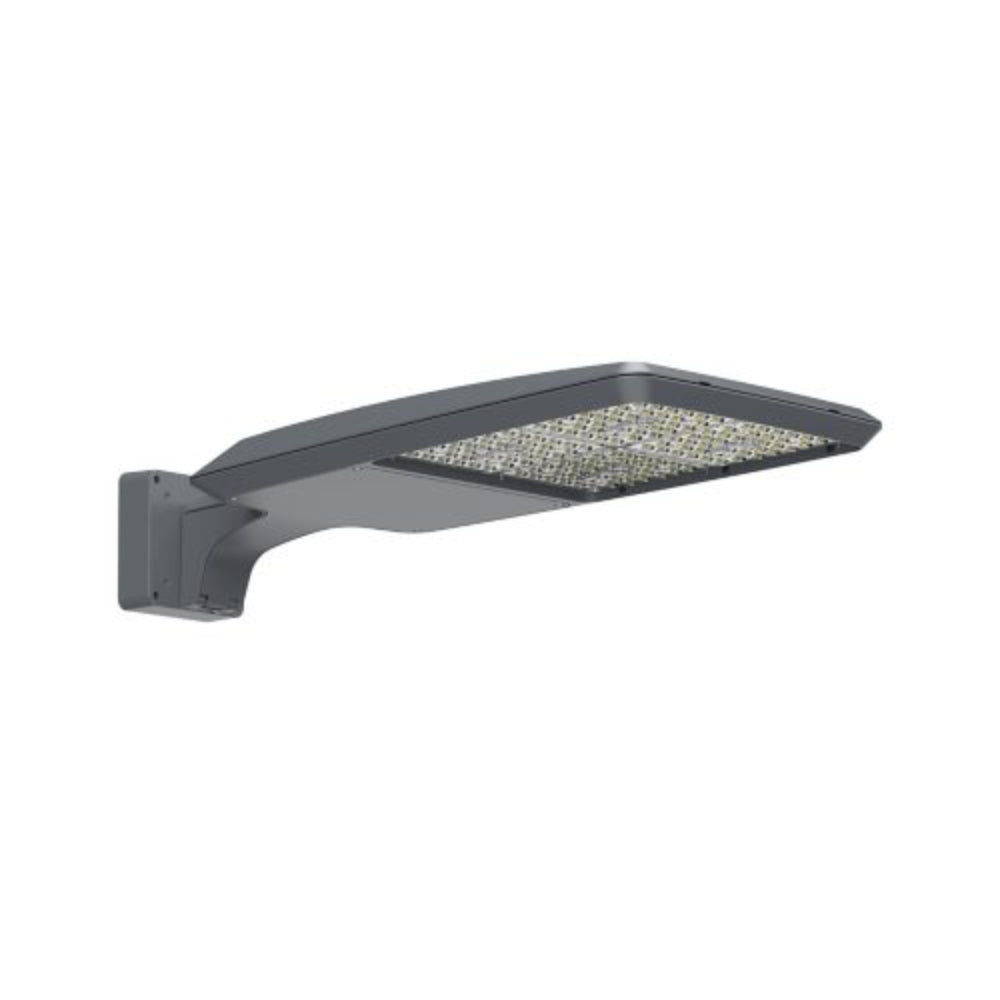

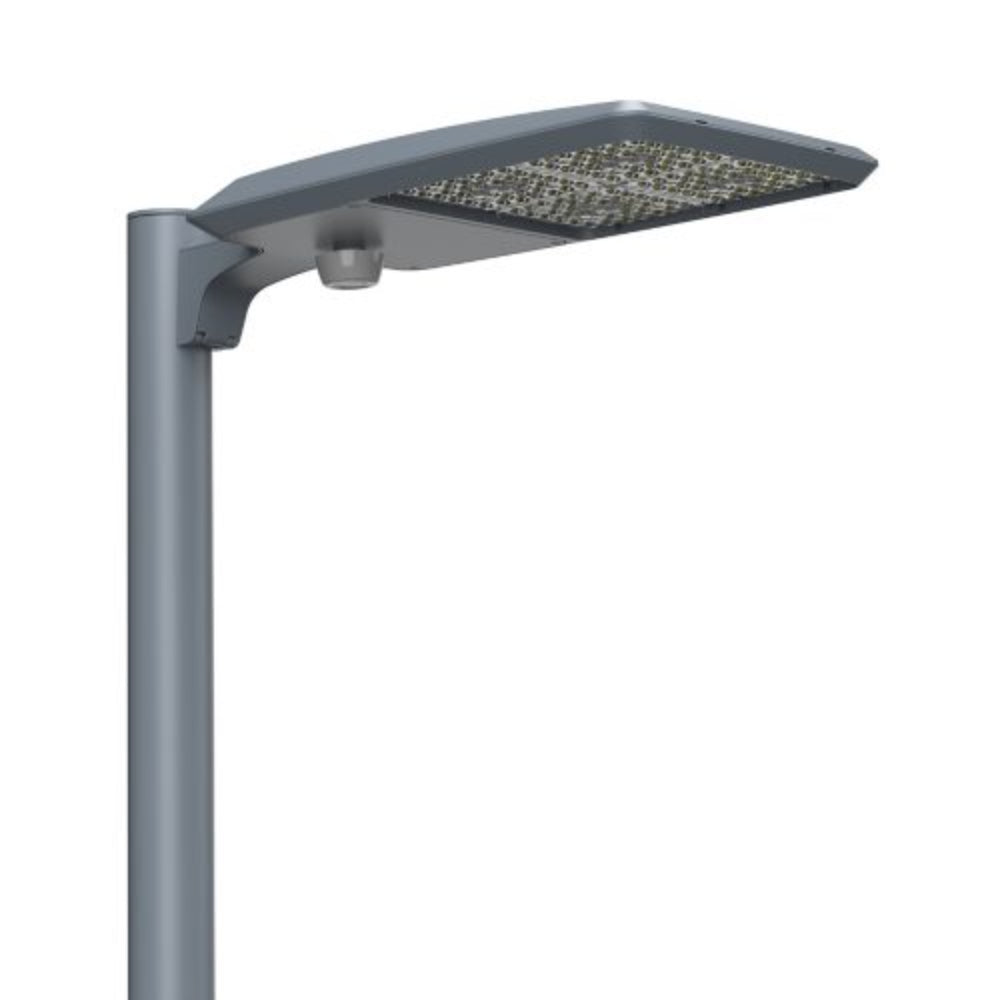

Information For: Gardco Lighting P26 PureForm LED Area Medium Comfort
Product Family Details
- Source: LED
- Voltage(s): 120, 208, 240, 277, 347, 480
- Lumens: 10000, 10100, 10300, 2300, 2400, 2500, 3300, 3400, 3500, 3600, 5600, 5700, 5800, 5900, 6000, 6100, 6200, 7800, 8000, 8100, 8200, 8300, 8400, 8600, 9300, 9400, 9600, 9700, 9800
- Input watts: 22, 30, 52, 75, 96
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 3000K, 4000K, 5000K
- CRI: 70
- Distribution Type: Type II, Type III, Type V
- Mounting type(s): Pole Arm
Features
- Comfort optics offer low glare for increased visual comfort
- Type 2, 3, and 5 optical distributions
- A full range of control options provide additional energy savings
Benefits
- Sleek, low profile design blends in with architecture.
- Comfort optics area reduce glare to enhance visual comfort.
- Both comfort optics and precision optics available, suitable for a range of mounting heights and lumen output.
- Seamless integration with the latest controls solutions makes management easy, further enhancing value.
Product Family Information
Gardco PureForm site and area medium LED with comfort optics features a sleek, low profile design. Comfort optics reduce glare to increase visual comfort. Type 2, 3, and 5 optical distributions are availble. A full range of control options provide additional energy savings.
Products List
| Catalog Number | Lumens | Input watts | Distribution Type |
| P26-140L-1150-CW-G2-2 | 6000 | 5000K | 52 |
| P26-140L-1150-CW-G2-3 | 6200 | 5000K | 52 |
| P26-140L-1150-CW-G2-5 | 6100 | 5000K | 52 |
| P26-140L-1150-NW-G2-2 | 5800 | 4000K | 52 |
| P26-140L-1150-NW-G2-3 | 6000 | 4000K | 52 |
| P26-140L-1150-NW-G2-5 | 5900 | 4000K | 52 |
| P26-140L-1150-WW-G2-2 | 5600 | 3000K | 52 |
| P26-140L-1150-WW-G2-3 | 5700 | 3000K | 52 |
| P26-140L-1150-WW-G2-5 | 5600 | 3000K | 52 |
| P26-140L-1675-CW-G2-2 | 8400 | 5000K | 75 |
| P26-140L-1675-CW-G2-3 | 8600 | 5000K | 75 |
| P26-140L-1675-CW-G2-5 | 8400 | 5000K | 75 |
| P26-140L-1675-NW-G2-2 | 8100 | 4000K | 75 |
| P26-140L-1675-NW-G2-3 | 8300 | 4000K | 75 |
| P26-140L-1675-NW-G2-5 | 8200 | 4000K | 75 |
| P26-140L-1675-WW-G2-2 | 7800 | 3000K | 75 |
| P26-140L-1675-WW-G2-3 | 8000 | 3000K | 75 |
| P26-140L-1675-WW-G2-5 | 7800 | 3000K | 75 |
| P26-140L-2100-CW-G2-2 | 10000 | 5000K | 96 |
| P26-140L-2100-CW-G2-3 | 10300 | 5000K | 96 |
| P26-140L-2100-CW-G2-5 | 10100 | 5000K | 96 |
| P26-140L-2100-NW-G2-2 | 9700 | 4000K | 96 |
| P26-140L-2100-NW-G2-3 | 10000 | 4000K | 96 |
| P26-140L-2100-NW-G2-5 | 9800 | 4000K | 96 |
| P26-140L-2100-WW-G2-2 | 9300 | 3000K | 96 |
