Description
- Description
- Products List
- Product Files
- Gardco Finishes
Product Family Details
- Source: LED
- Voltage(s): 120, 120-277, 208, 240, 277, 347, 480
- Lumens: 10100, 10700, 1400, 1500, 2000, 2100, 2400, 2500, 2700, 3400, 3500, 3700, 5900, 6100, 6400, 8200, 8400, 8900, 9800
- Input watts: 10, 18, 22, 30, 53, 76, 97
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 4000K
- CRI: 70
- Distribution Type: Type II, Type III, Type IV
- Mounting type(s): Wall, Wall
Features
- Comfort optics offer low glare for increased visual comfort
- Type 2, 3, 4 optical distributions
- Optional integral emergency battery backup available

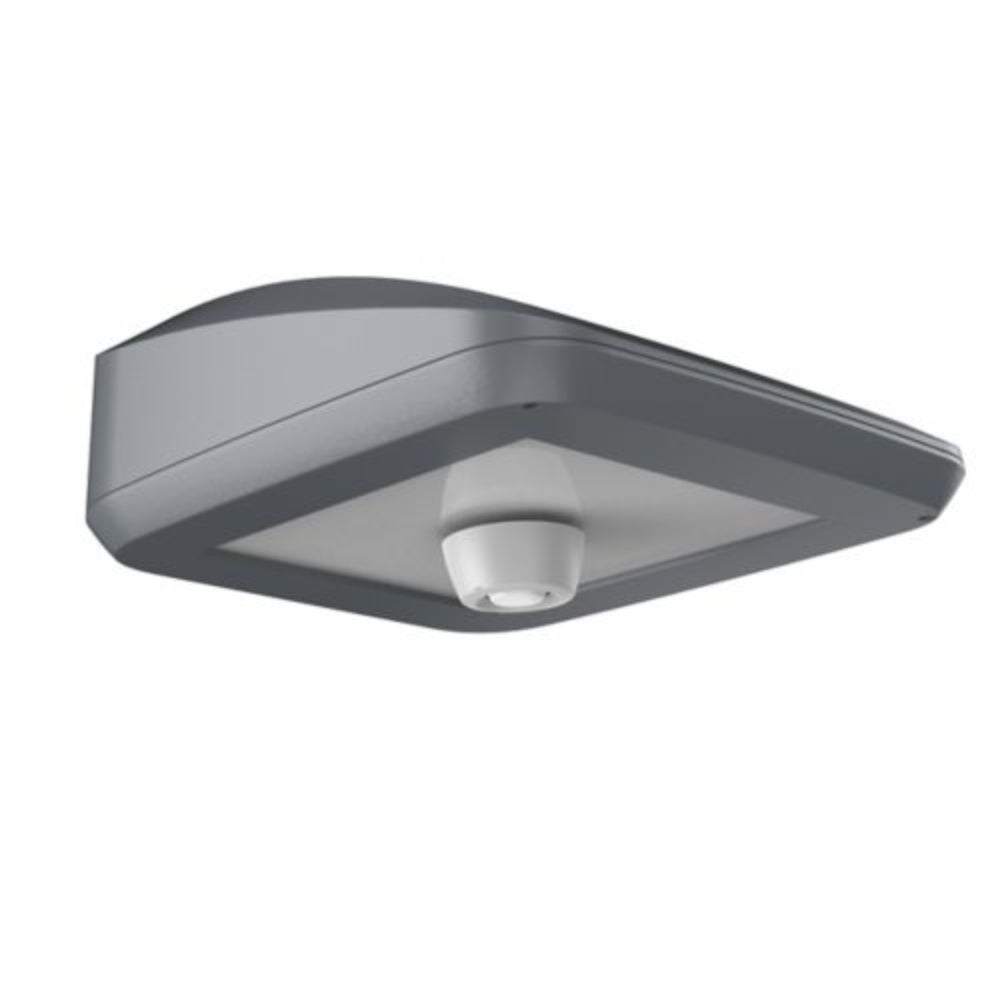

- A full range of control options provide additional energy savings
Benefits
- Sleek, low profile design blends in with architecture.
- Comfort optics area reduce glare to enhance visual comfort.

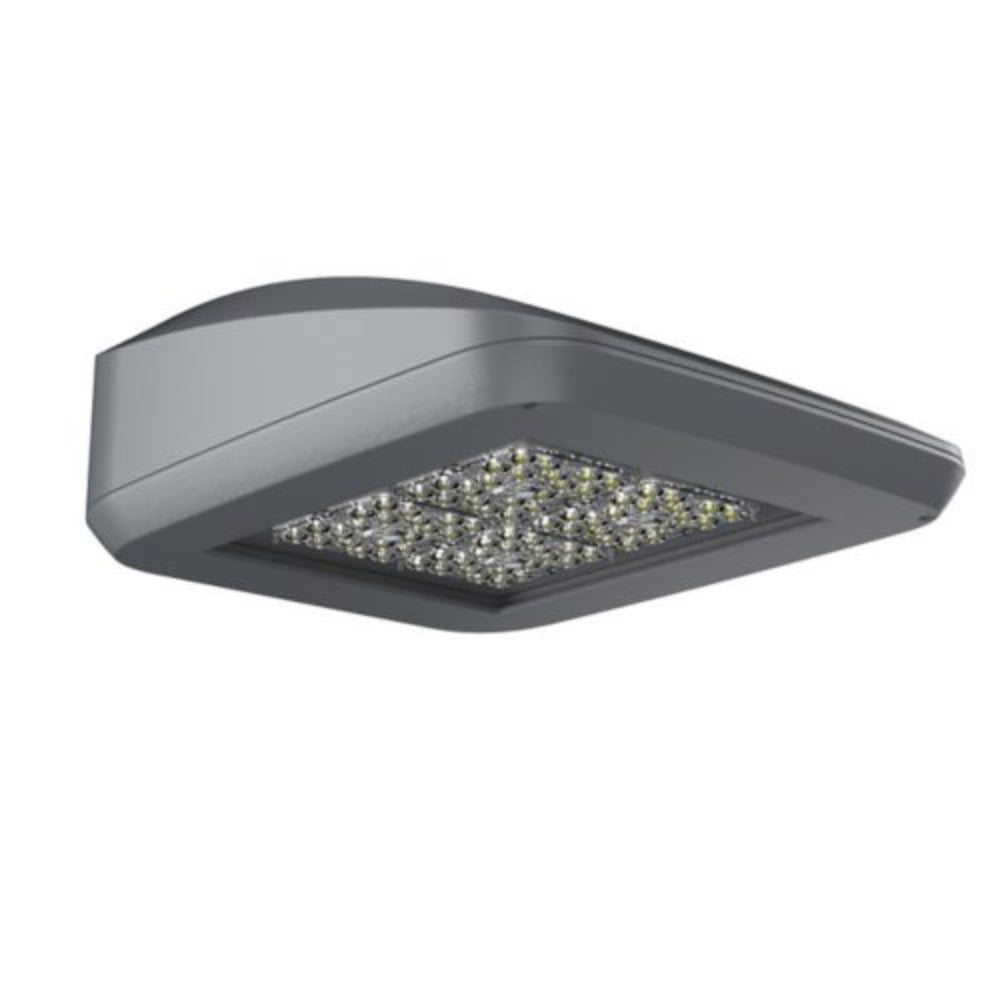

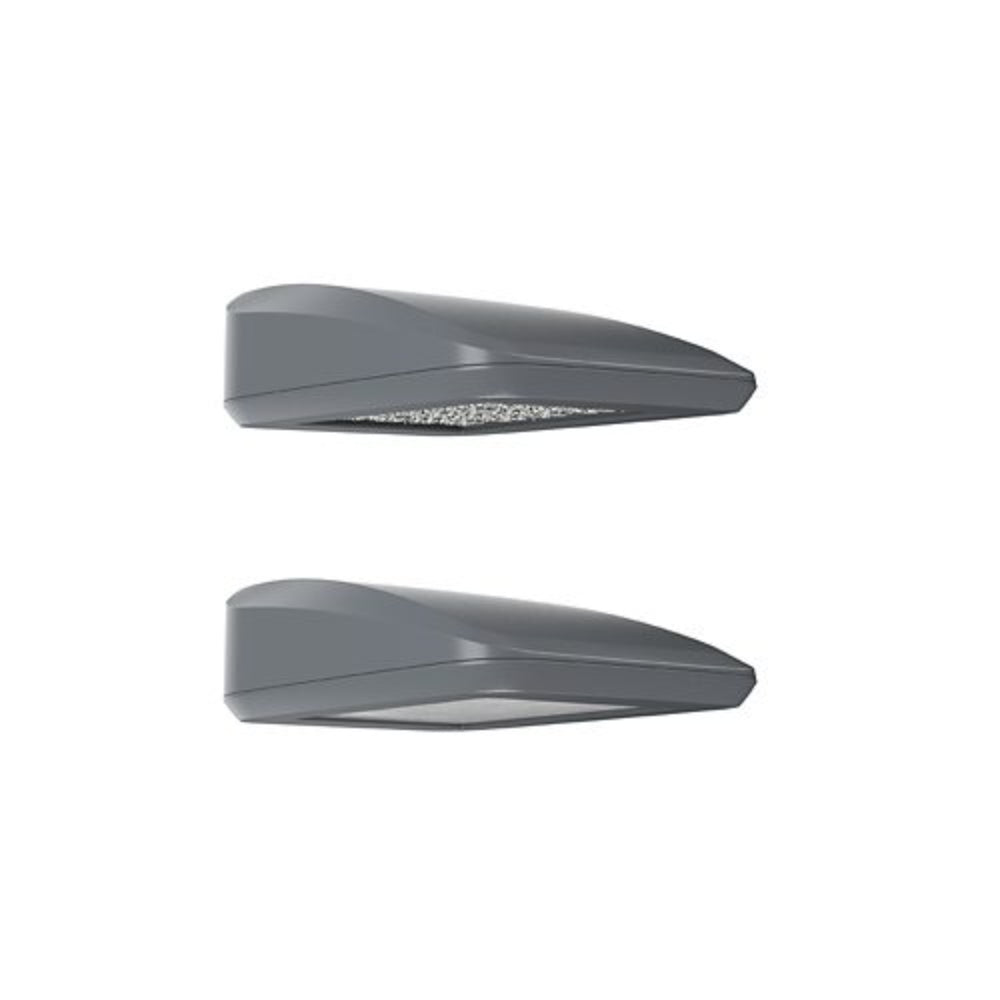

- Both comfort optics and precision optics available, suitable for a range of mounting heights and lumen output.
- Seamless integration with the latest controls solutions makes management easy, further enhancing value.
Product Family Information

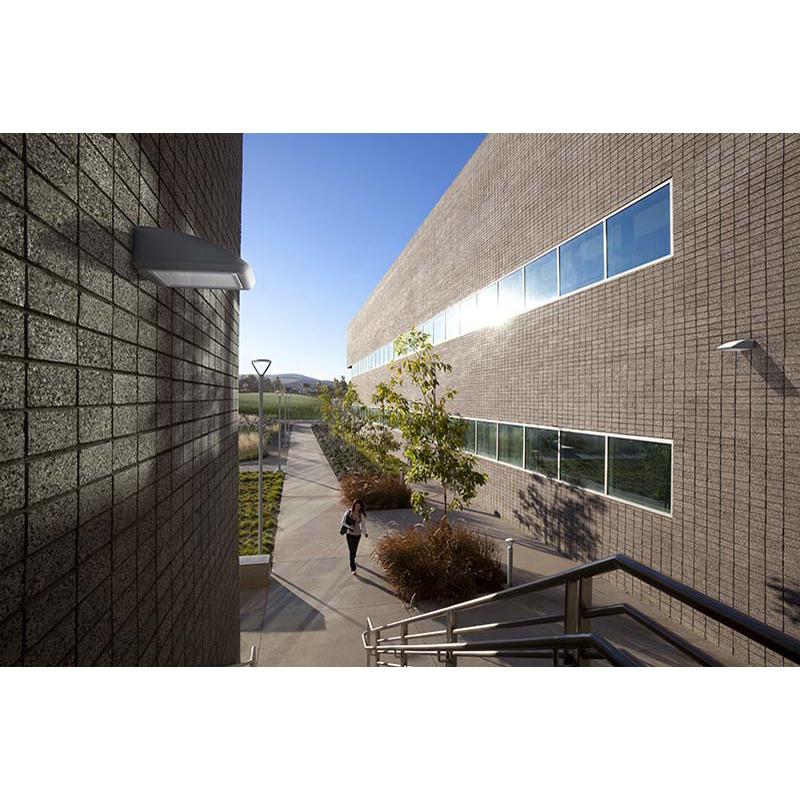

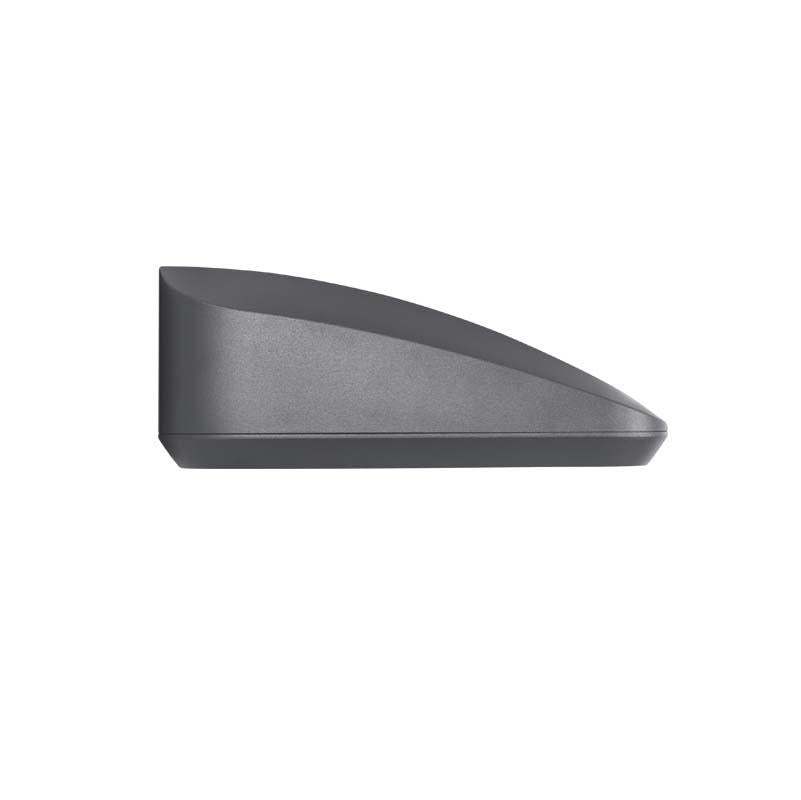

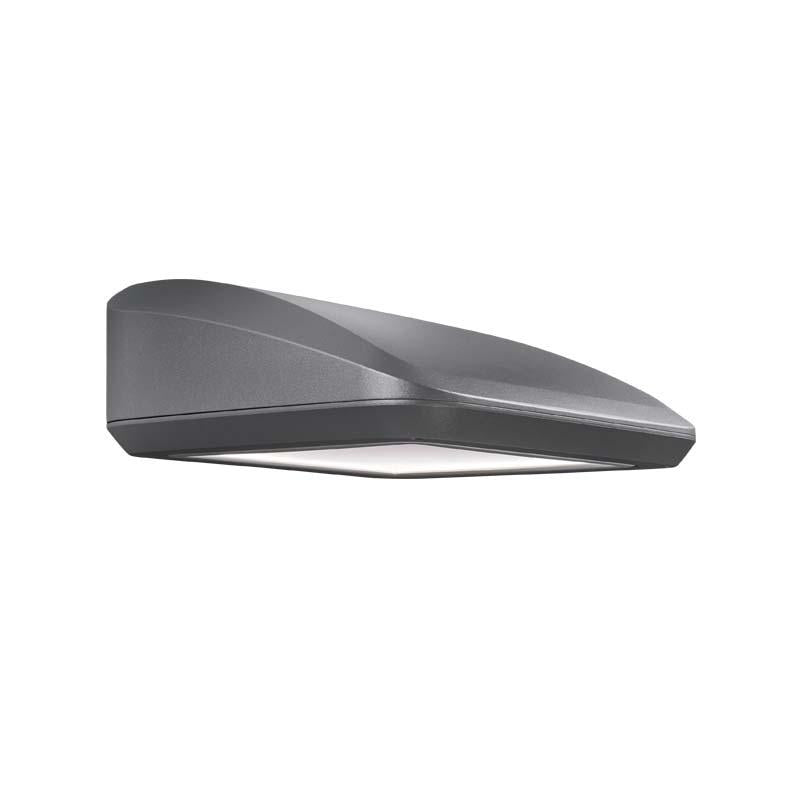

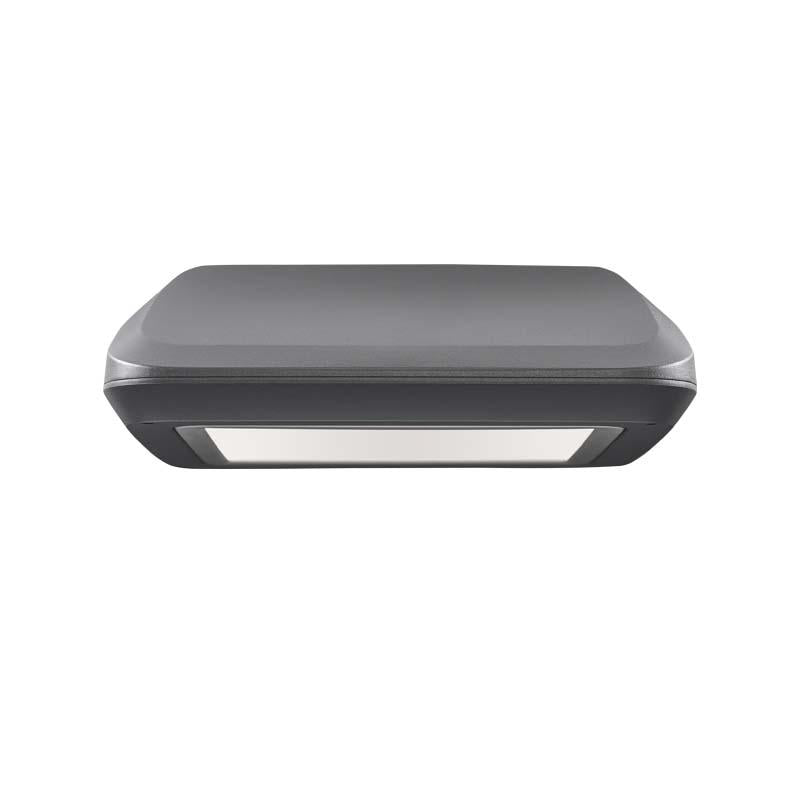

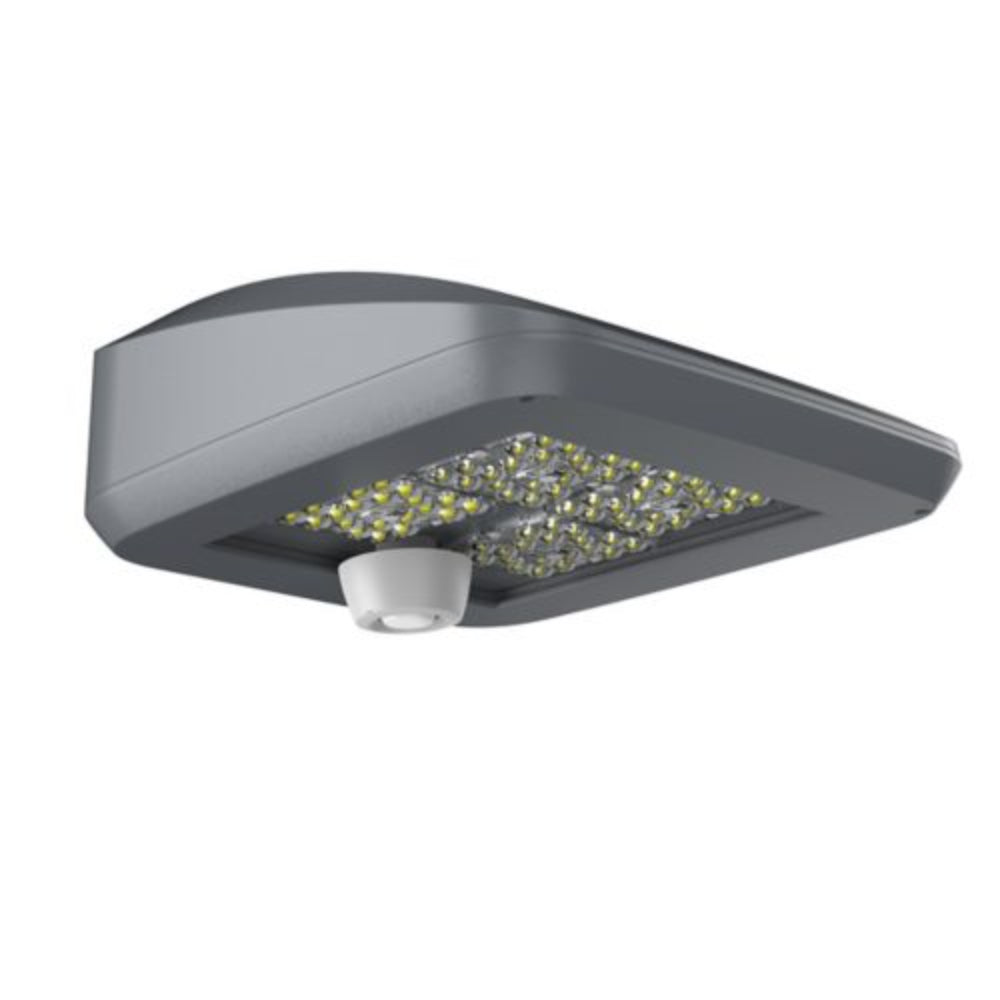

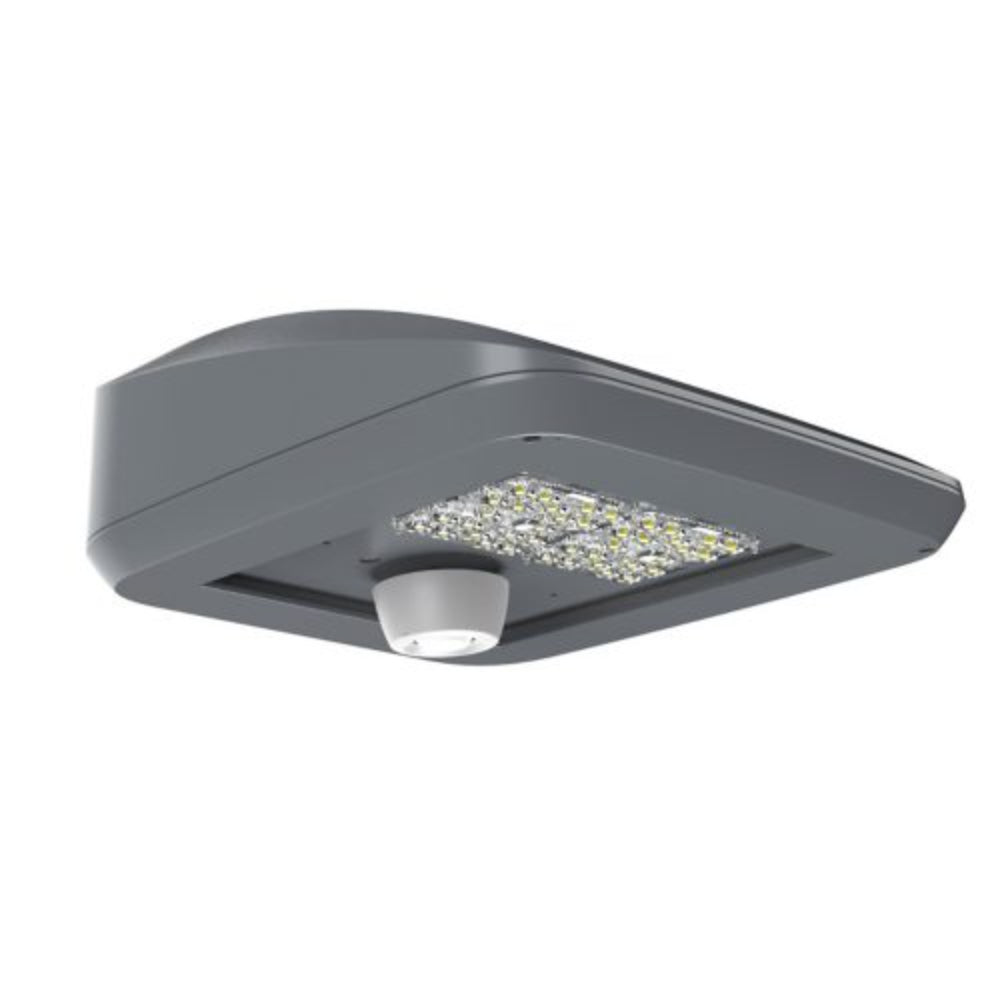

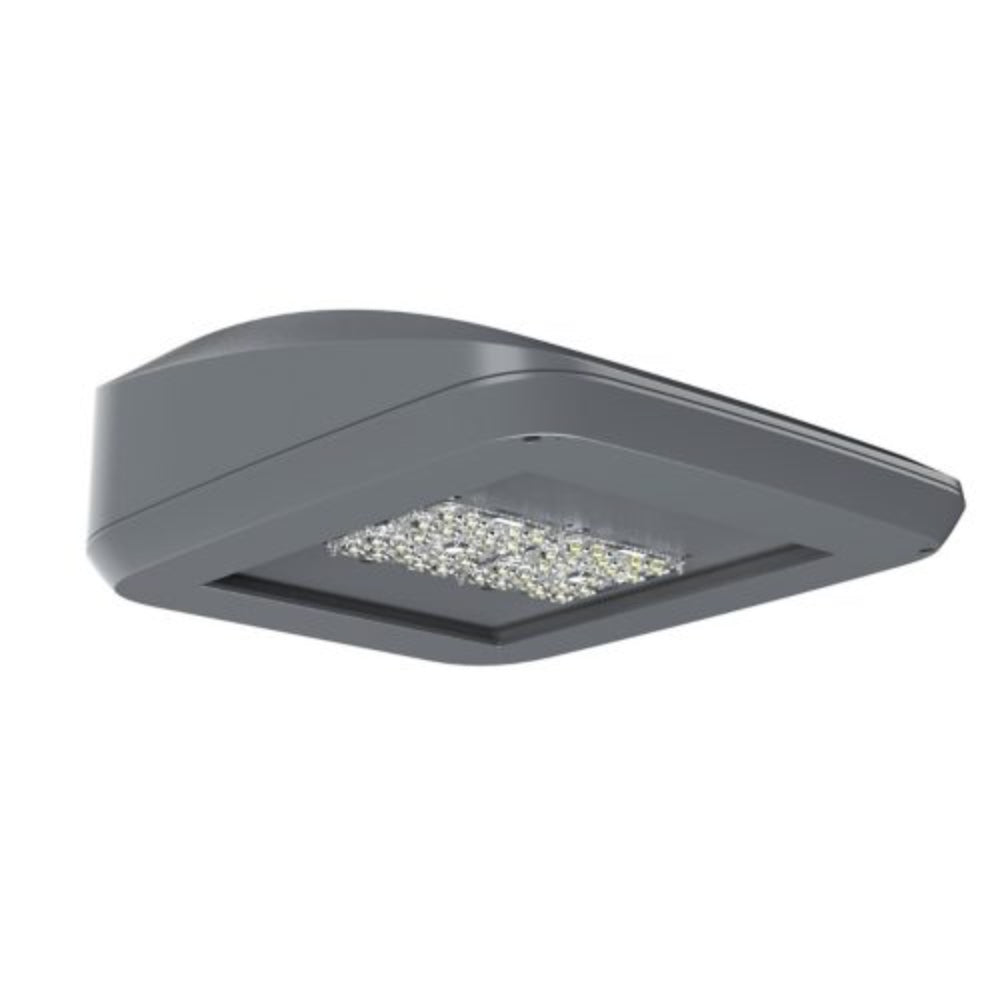

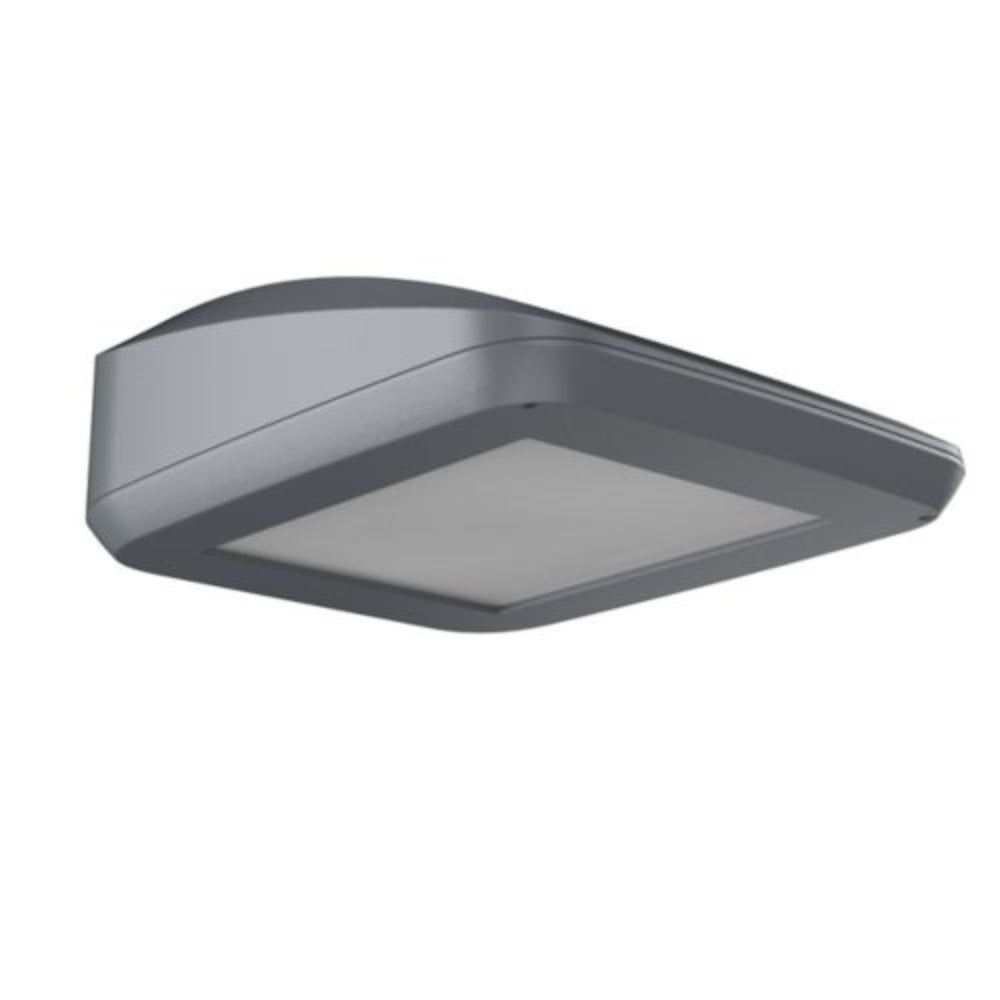

Gardco PureForm wall sconce LED with comfort optics offers a sleek, low profile design that will complement a range of architectural styles. Comfort optics reduce glare to increase visual comfort. PureForm wall sconce provides up to 10,700 lumens to accommodate multiple mounting heights up to 20', and is available with Type 2, 3, 4, optical distributions. A full range of control options are available for additional energy savings. Optional emergency battery backup option available for path-of-egress, and is integral to the luminaire.
| Catalog Number | Lumens | Input watts | Distribution Type |
| PWS-140L-1150-NW-G2-2 | 5900 | 53 | Type II |
| PWS-140L-1150-NW-G2-2-EBPC | 2000 | 18 | Type II |
| PWS-140L-1150-NW-G2-3 | 6100 | 53 | Type III |
| PWS-140L-1150-NW-G2-3-EBPC | 2000 | 18 | Type III |
| PWS-140L-1150-NW-G2-4 | 6400 | 53 | Type IV |
| PWS-140L-1150-NW-G2-4-EBPC | 2100 | 18 | Type IV |
| PWS-140L-1675-NW-G2-2 | 8200 | 76 | Type II |
| PWS-140L-1675-NW-G2-2-EBPC | 2000 | 18 | Type II |
| PWS-140L-1675-NW-G2-3 | 8400 | 76 | Type III |
| PWS-140L-1675-NW-G2-3-EBPC | 2000 | 18 | Type III |
| PWS-140L-1675-NW-G2-4 | 8900 | 76 | Type IV |
| PWS-140L-1675-NW-G2-4-EBPC | 2100 | 18 | Type IV |
| PWS-140L-2100-NW-G2-2 | 9800 | 97 | Type II |
| PWS-140L-2100-NW-G2-3 | 10100 | 97 | Type III |
| PWS-140L-2100-NW-G2-4 | 10700 | 97 | Type IV |
| PWS-140L-450-NW-G2-2 | 2400 | 22 | Type II |
| PWS-140L-450-NW-G2-2-EBP | 1400 | 10 | Type II |
| PWS-140L-450-NW-G2-2-EBPC | 2000 | 18 | Type II |
| PWS-140L-450-NW-G2-3 | 2500 | 22 | Type III |
| PWS-140L-450-NW-G2-3-EBP | 1400 | 10 | Type III |
| PWS-140L-450-NW-G2-3-EBPC | 2000 | 18 | Type III |
| PWS-140L-450-NW-G2-4 | 2700 | 22 | Type IV |
| PWS-140L-450-NW-G2-4-EBP | 1500 | 10 | Type IV |
| PWS-140L-450-NW-G2-4-EBPC | 2100 | 18 | Type IV |
| PWS-140L-650-NW-G2-2 | 3400 | 30 | Type II |
