Gardco Lighting SFA SlenderForm Arm Mount LED
Gardco Lighting SFA SlenderForm Arm Mount LED
Roll over image to zoom in Click on image to zoom
Gardco Lighting SFA SlenderForm Arm Mount LEDGardco Lighting SFA SlenderForm Arm Mount LED

Gardco Lighting SFA SlenderForm Arm Mount LED - DISCONTINUED

Gardco LightingSKU: SFA
Price:
$9,999.00 USD

Fast & Easy Quote Request For Gardco Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Gardco Lighting Finishes

Gardco Lighting finishes

Description

Information For: Gardco Lighting SFA SlenderForm Arm Mount LED

Product Family Details

  • Source: LED
  • Voltage(s): 120, 208, 240, 277, 347, 480
  • Lumens: 10200, 11600, 12000, 12300, 12500, 14800, 15400, 15900, 18100, 18700, 19200, 19500, 2600, 2700, 2800, 3200, 3300, 3400, 3500, 5000, 5200, 5400, 6100, 6300, 6500, 6600, 9500, 9900
  • Input watts: 104, 168, 27, 51
  • Spec/Service Smart: Has Rev/BIM Files
  • Colour Temperature: 4000K
  • CRI: 70
  • Shape: Square
  • Distribution Type: Type II, Type III, Type IV, Type V
  • Mounting type(s): Pole Arm

Features

  • Elegant design accompanies family aesthetic
  • Style versatility with a choice of two arm variations
  • Multiple lumen packages with output of up to 19,000 lm
  • Type 2, 3, 4, and 5 optics available
  • Aluminum heat sink fins built into top of luminaire

Benefits

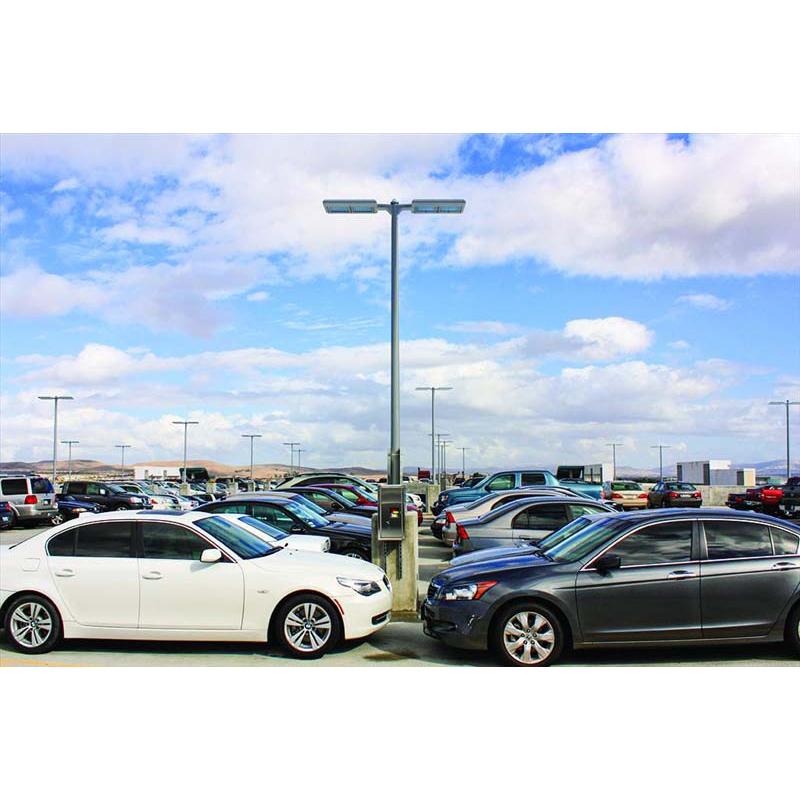

  • Provides precise illumination patterns to suit a wide range of architectural site lighting
  • Highly efficient IP66 optics are protected from the elements and ensure optimal photometric performance
  • Innovative thermal management system to maximize LED performance and life, and to extend component life
  • Tremendous opportunities for additional energy savings through the use of controls

Product Family Information

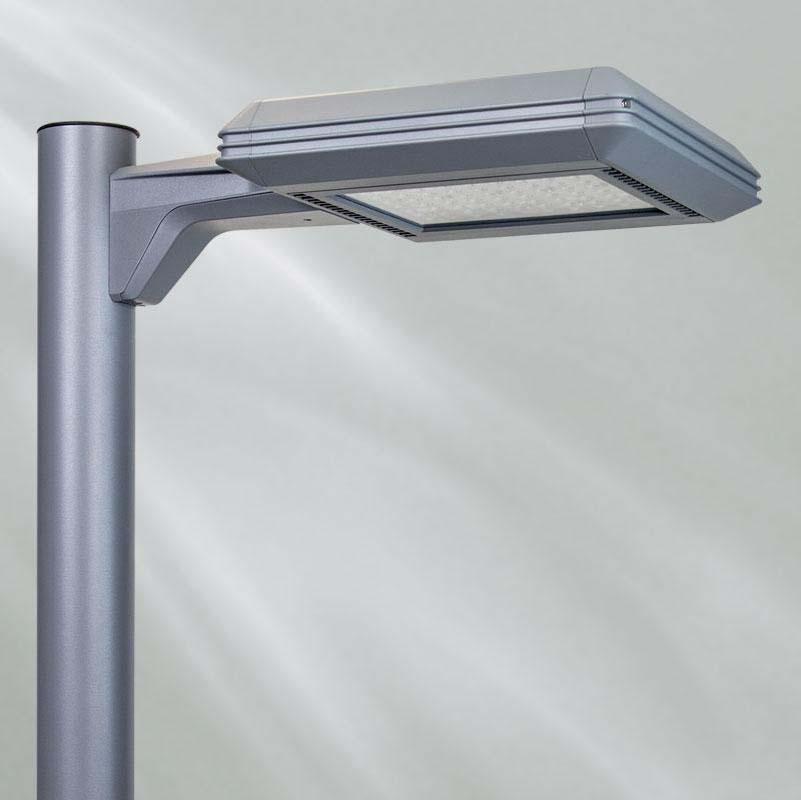

Gardco SlenderForm LED area luminaires provide a complete set of LED solutions for every site lighting desire and need. Defined by its high performance, sleek low profile design and rugged construction, The SlenderForm LED square arm mount features a modernized square aesthetic. Available with a choice of two arm variations, the standard arm provides a clean, elegant upsweep and if additional style is desired, SlenderForm offers the "V" arm configuration. Utilizing the SlenderForm family, the entire look of the site can be integrated to provide an architecturally diverse yet unified appearance.

Products List
Catalog Number Lumens Input watts Distribution Type
SFA-32L-250-NW-G2-2 3400 27 Type II
SFA-32L-250-NW-G2-2-HIS 2700 27 Type II
SFA-32L-250-NW-G2-3 3200 27 Type III
SFA-32L-250-NW-G2-3-HIS 2600 27 Type III
SFA-32L-250-NW-G2-4 3300 27 Type IV
SFA-32L-250-NW-G2-4-HIS 2800 27 Type IV
SFA-32L-250-NW-G2-5 3500 27 Type V
SFA-32L-500-NW-G2-2 6500 51 Type II
SFA-32L-500-NW-G2-2-HIS 5200 51 Type II
SFA-32L-500-NW-G2-3 6100 51 Type III
SFA-32L-500-NW-G2-3-HIS 5000 51 Type III
SFA-32L-500-NW-G2-4 6300 51 Type IV
SFA-32L-500-NW-G2-4-HIS 5400 51 Type IV
SFA-32L-500-NW-G2-5 6600 51 Type V
SFA-48L-700-NW-G2-2 12300 104 Type II
SFA-48L-700-NW-G2-2-HIS 9900 104 Type II
SFA-48L-700-NW-G2-3 11600 104 Type III
SFA-48L-700-NW-G2-3-HIS 9500 104 Type III
SFA-48L-700-NW-G2-4 12000 104 Type IV
SFA-48L-700-NW-G2-4-HIS 10200 104 Type IV
SFA-48L-700-NW-G2-5 12500 104 Type V
SFA-64L-850-NW-G2-2 19200 168 Type II
SFA-64L-850-NW-G2-2-HIS 15400 168 Type II
SFA-64L-850-NW-G2-3 18100 168 Type III
SFA-64L-850-NW-G2-3-HIS 14800 168 Type III
California Residents: Prop 65 regulations
Product Files

Click for Spec Sheet

Click for Brochure

Click for Instruction

Click for Instruction 1

Click for Instruction 2

Click for Instruction 3
