Fast & Easy Quote Request
Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.
Description
- Description
- Products List
- Product Files
- Gardco Finishes
Product Family Details
- Source: LED
- Voltage(s): 120, 208, 240, 277, 347, 480, UNIV
- Lumens: 11609, 11659, 11670, 12028, 4636, 4656, 4660, 4804, 6932, 6962, 6968, 7182, 9323, 9364, 9372, 9660
- Input watts: 104, 38, 60, 82
- Spec/Service Smart: Has Rev/BIM Files
- Colour Temperature: 4000K
- CRI: 70
- Shape: Square
- Distribution Type: Symmetric, Type III, Type V
- Mounting type(s): Recessed
Features
- Rugged extruded aluminum housing
- Integrated heat sinks
- IP65 rated
- Four unique distribution patterns
- Quick mount plate
Benefits
- Sustained performance
- Uncompromised quality
- Long LED system life
- Increased light output and greater efficiency over HID sources
- Enables intuitive and efficient installation
Product Family Information

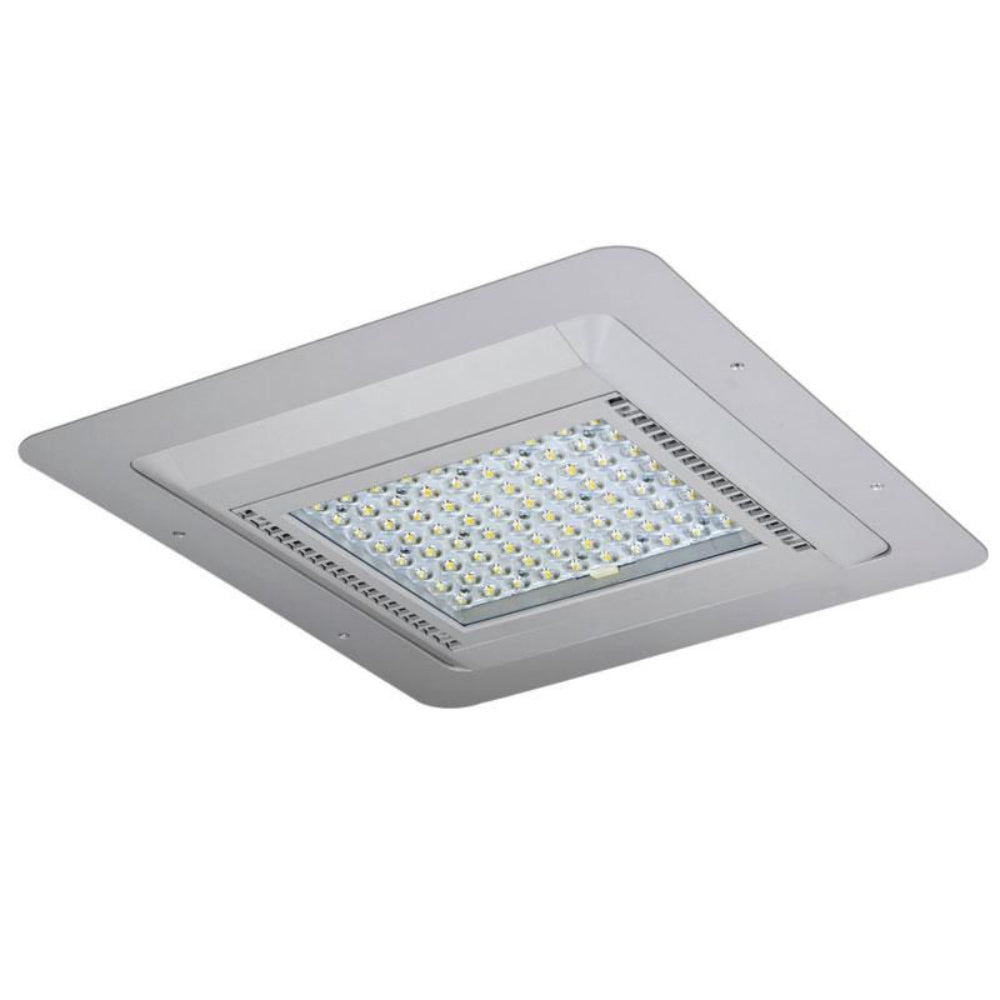

The Gardco SlenderForm high output LED Recessed ceiling / canopy luminaire features a sleek, yet powerful, low profile design. The thin 3 inch profile combined with LED high output performance make SlenderForm the ideal choice for exterior ceiling mount and canopy applications. SlenderForm luminaires also provide LED solutions for parking garage applications requiring higher light levels, including entrances, and for garage areas with high ceilings. Gardcos LED technology combines with superior integral thermal control to provide maximized light output and maximum energy savings. SlenderForm is available with integrated Motion Response, providing even greater potential energy savings. Advanced Class 1 LED systems are featured.
| Catalog Number | Lumens | Input watts | Distribution Type |
| SFCR-3-48L-250-NW-G2 | 4636 | 38 | Type III |
| SFCR-3-48L-400-NW-G2 | 6932 | 60 | Type III |
| SFCR-3-48L-550-NW-G2 | 9323 | 82 | Type III |
| SFCR-3-48L-700-NW-G2 | 11609 | 104 | Type III |
| SFCR-5R-48L-250-NW-G2 | 4660 | 38 | Type V |
| SFCR-5R-48L-400-NW-G2 | 6968 | 60 | Type V |
| SFCR-5R-48L-550-NW-G2 | 9372 | 82 | Type V |
| SFCR-5R-48L-700-NW-G2 | 11670 | 104 | Type V |
| SFCR-5W-48L-250-NW-G2 | 4804 | 38 | Type V |
| SFCR-5W-48L-400-NW-G2 | 7182 | 60 | Type V |
| SFCR-5W-48L-550-NW-G2 | 9660 | 82 | Type V |
| SFCR-5W-48L-700-NW-G2 | 12028 | 104 | Type V |
| SFCR-CD-48L-250-NW-G2 | 4656 | 38 | Symmetric |
| SFCR-CD-48L-400-NW-G2 | 6962 | 60 | Symmetric |
| SFCR-CD-48L-550-NW-G2 | 9364 | 82 | Symmetric |
| SFCR-CD-48L-700-NW-G2 | 11659 | 104 | Symmetric |
